StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - ICUSB422

StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter – ICUSB422

$62.89

SKU: SKUUGWkeVjrjc Categories: Networking & Cables, Technology, Wireless Networking Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter – ICUSB422

Straight-Through USB to RS422/485 adapter – Small form factor and USB powered – Simple install / operation with COM port retention; Compatible with Windows, macOS and Linux – 6ft (1.8m); FTDI FT232RL Chipset; 921.6 Kbps Max Baud Rate; TAA Compliant

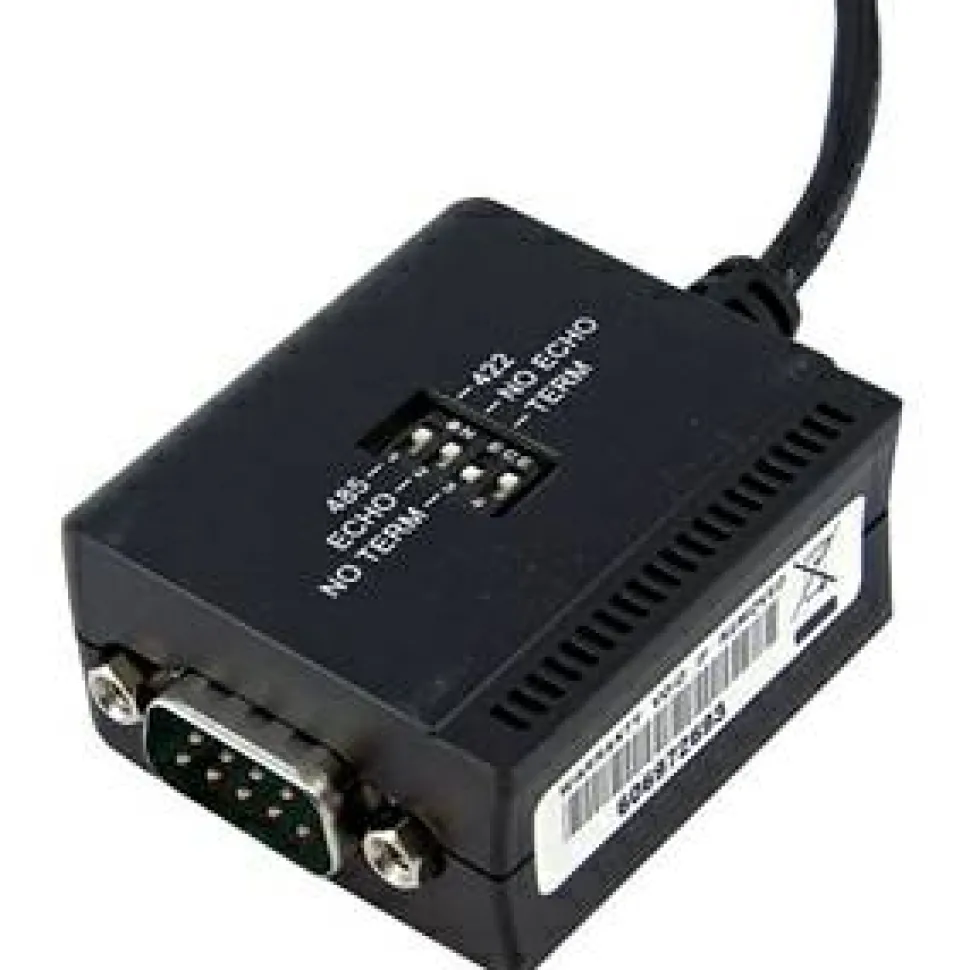

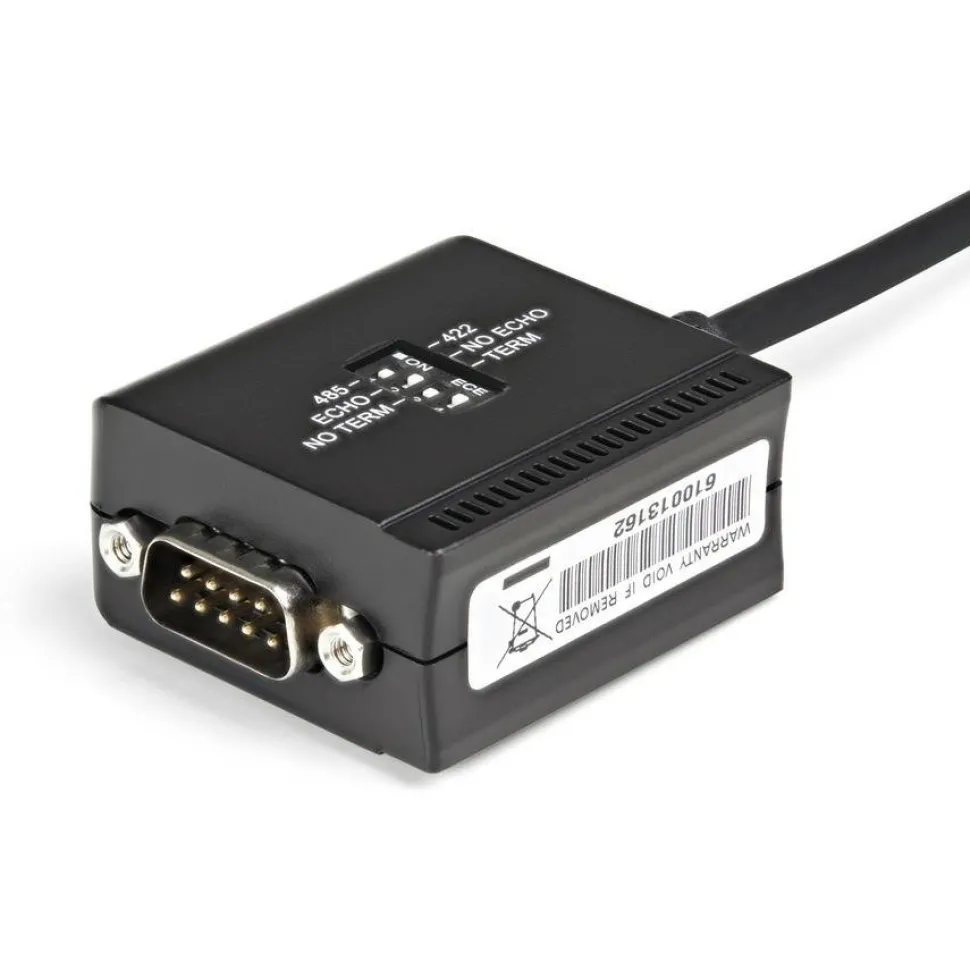

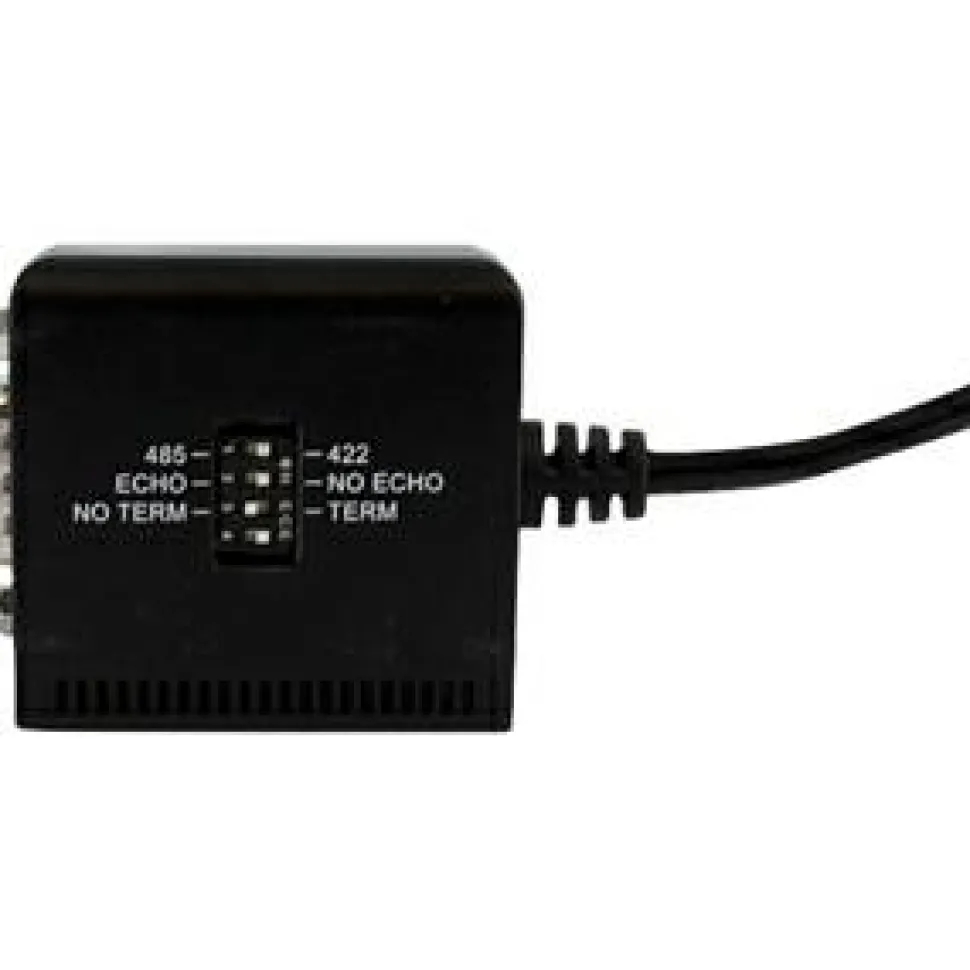

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.
The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.
The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer

Fast data transfer rate. Achieving a data transfer rate of 921.6 Kbps, this adapter ensures efficient communication between connected devices.
Sufficient cable length. At 1.8 m in length, the integrated data cable provides flexibility and reach for connecting devices across larger workspaces.
Versatile serial support. This adapter supports both RS-422 and RS-485 data link protocols, allowing compatibility with a wide range of serial devices for diverse applications.

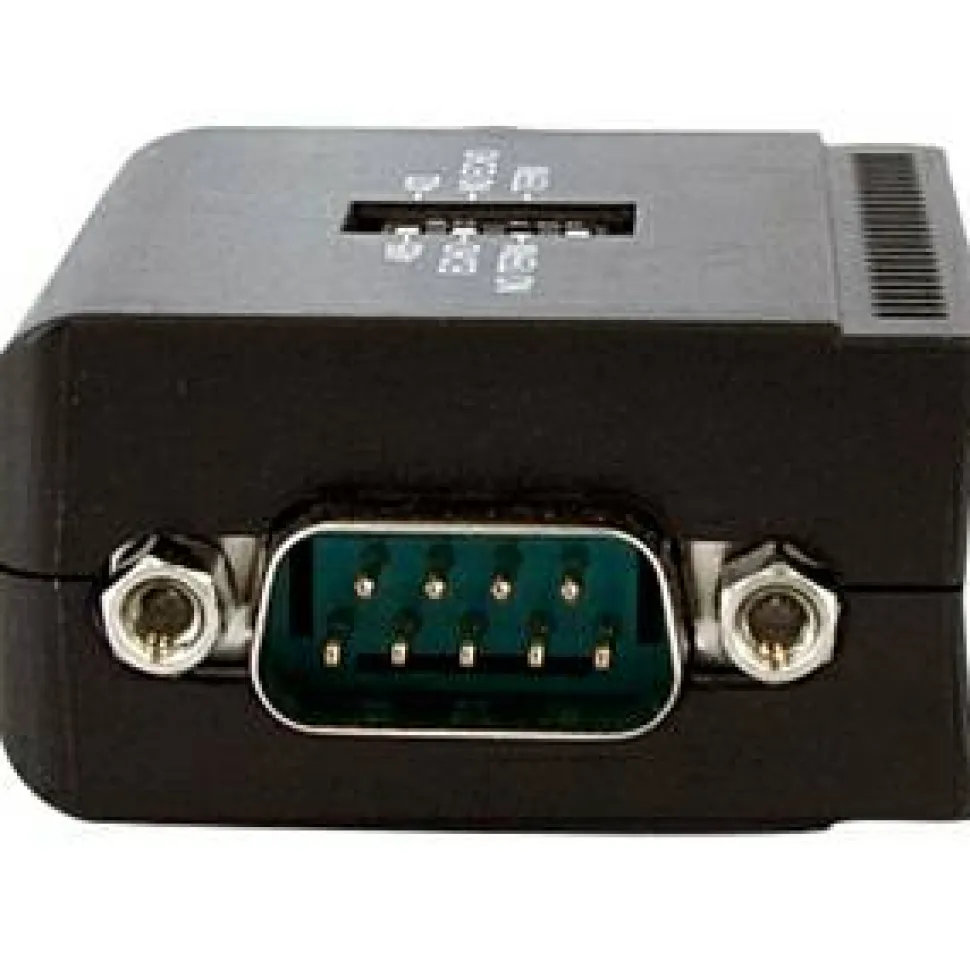

User-friendly connectivity. The adapter features a 9-pin D-Sub (DB-9) connector, making it easy to connect to a variety of serial devices.
Convenient power source. Powered via USB, this adapter eliminates the need for an external power supply, making it convenient for various setups.

Product Specifications

Additional Information

Operating System(s): Windows 8 / 7 / Vista / XP (32/64-bit) Windows 2000 Windows CE (4.2+) Windows Server 2008 R2 Windows Server 2003 (32/64-bit) Mac OS v.9.x, v.10.x (Tested up to v.10.8) Linux
Brand Name

StarTech.com
Cable Length

6 ft
Connector Type on First End

DB-9 RS-422 Serial – Male
Connector Type on Second End

USB 1.1 Type A – Female
Country of Origin

CN
EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/icusb422_rohs.pdf
End of Life Manual Availability

Yes
Environmental Certification

EU RoHS
Environmental Compliance

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly

Yes
Limited Warranty

2 Year
Manufacturer

STARTECH.COM
Manufacturer Part Number

ICUSB422
Operating System Compatibility

Windows CE 4.2 Windows CE 5.0 Windows CE 6.0 Windows XP Embedded Windows 98 Second Edition Windows 2000 Server Windows XP Windows Vista Windows 7 Windows 8 Windows 8.1 Windows 10 Windows 11 Windows Server 2003 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022 Mac OS X 10.6 Snow Leopard macOS Catalina 10.15 macOS Big Sur 11.0 macOS Monterey 12.0 macOS Ventura 13.0 Linux Kernel 3.0.x+ LTS
Package Contents

6ft RS422/485 USB Serial Adapter with COM Retention 1 x Driver CD 1 x Instruction Manual
Packaging

1
Product Name

6ft RS422/485 USB Serial Adapter with COM Retention
Product Type

Adapter Connector
Quantity

1
REACH Declaration URL

https://media.startech.com/cms/pdfs/icusb422_rohs.pdf
REACH free of SVHC

Yes
Refurbished

N
TAA Compliant

Yes
WEEE Statement

https://media.startech.com/cms/pdfs/icusb422_weee.pdf
