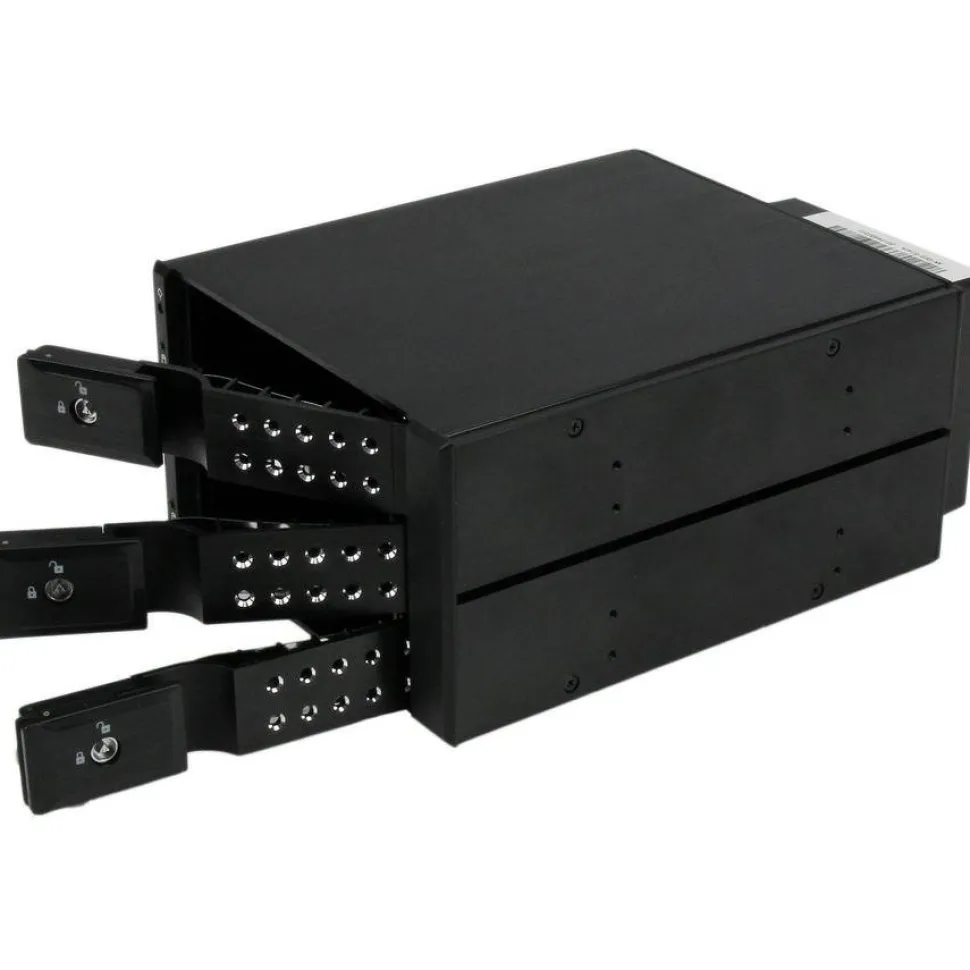

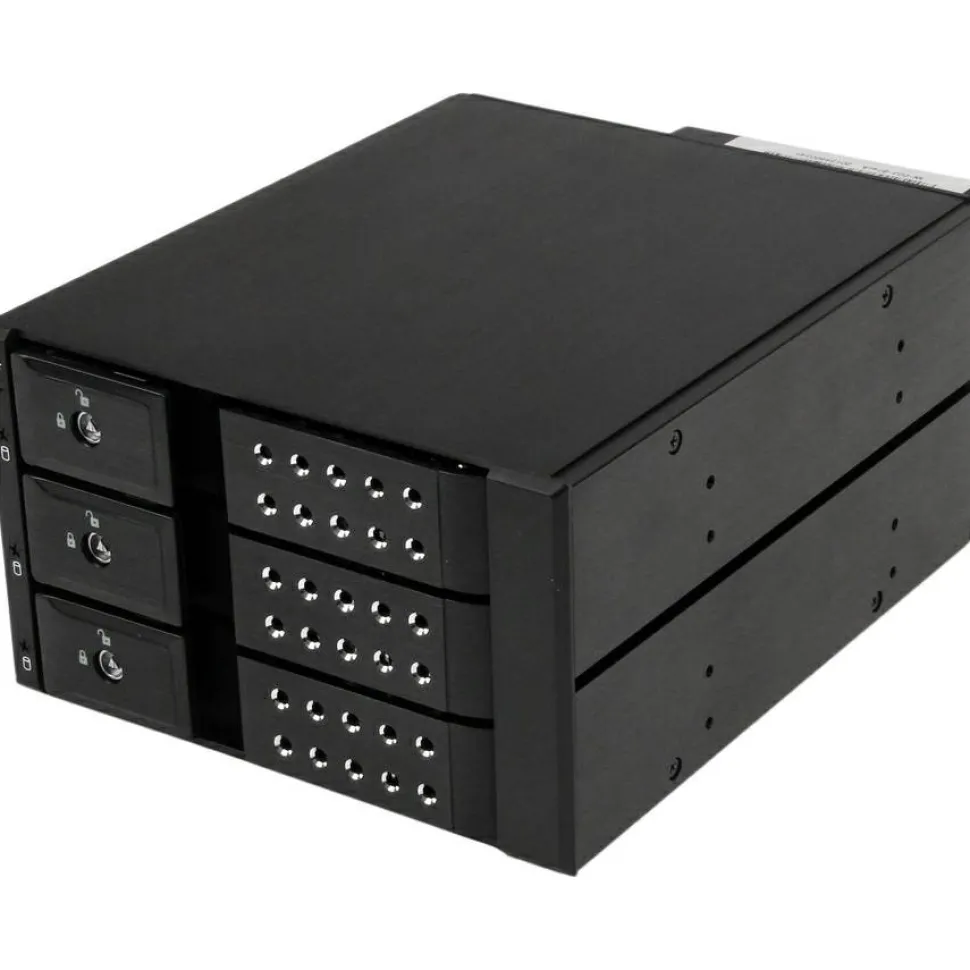

StarTech 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

StarTech 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III – 6 Gbps HDD

$86.89

SKU: SKUUJ1WAUySVs Categories: Drives & Media, Media Storage, Technology Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III – 6 Gbps HDD

Easily connect and hot swap up to three 3.5″ SATA/SAS hard drives from two 5.25″ bays – SATA Backplane – Hot Swap Bay – Trayless SATA Mobile Rack Backplane – SATA Aluminum Mobile Rack – 3 Drive Mobile Back Plane – 6 Gbps – Key Lock – 70mm Fan

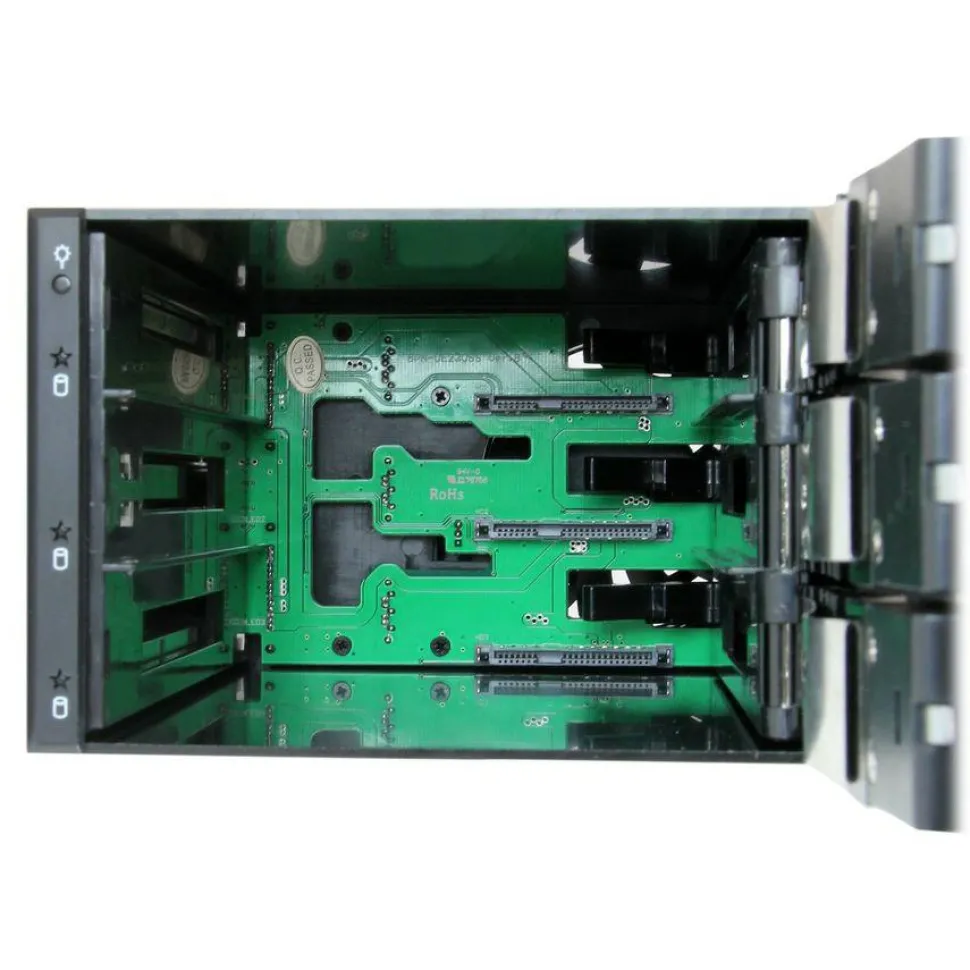

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5″ drives from the front of your computer, by turning two 5.25″ bays into a hot-swappable interface for you to connect up to three 3.5″ SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives — an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer

Solid aluminum construction

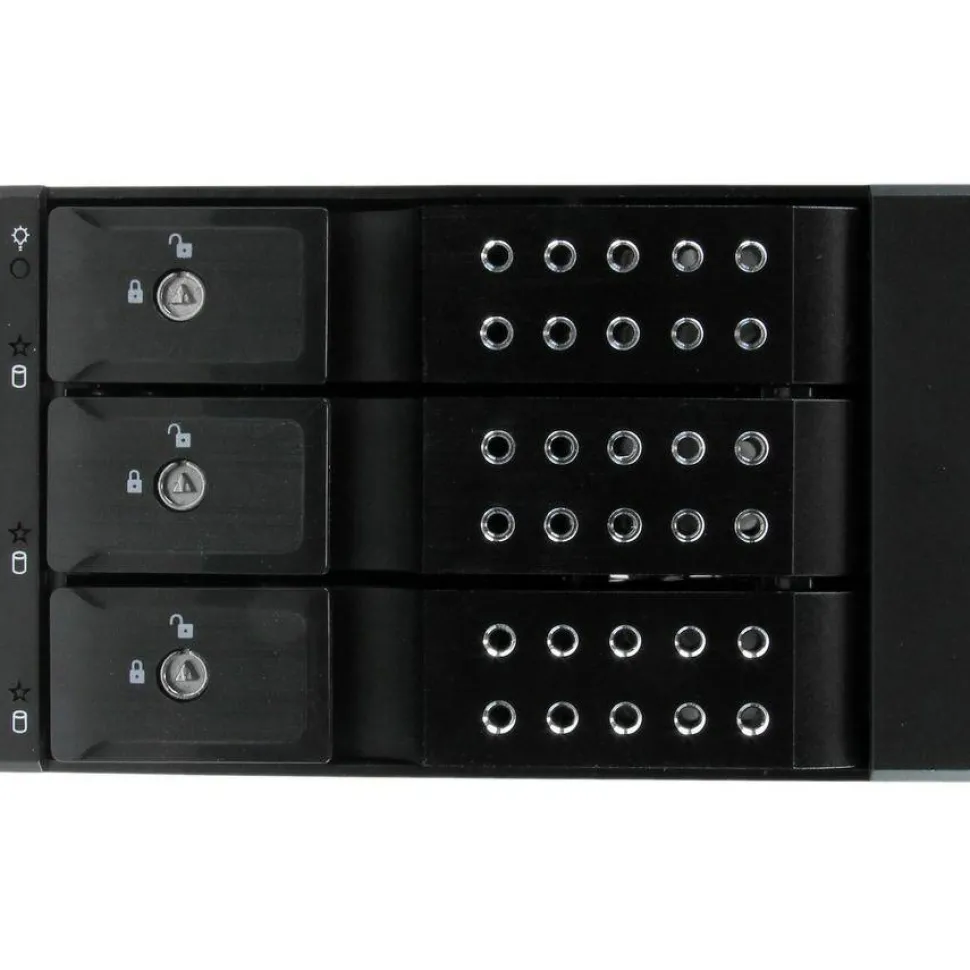

Key lock design

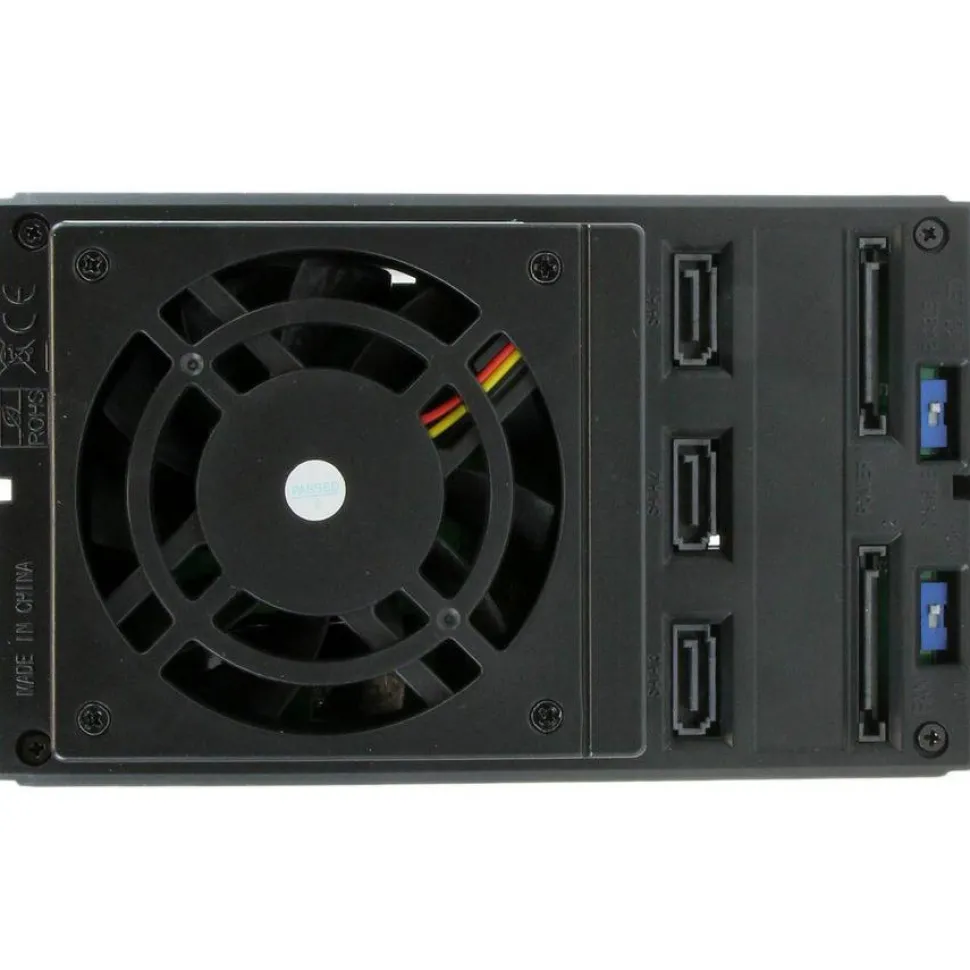

Built-in fan
3 drive bay design
Installs in two 5.25″ drive bays
Trayless design for hot swap support
Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
Support for SAS revision I/II (3.0/6.0 Gbps)
UL VO flammability rating
Power and Activity LEDs for each drive

Product Specifications

Brand Name

StarTech.com
Compatible Drive Bay Width

5.25″
Cooling Fan

Yes
Country of Origin

China
Depth

7.6″
Drive Interface

SATA/600 Serial Attached SCSI (SAS)
EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/hsb3satsasba_rohs.pdf
End of Life Manual Availability

Yes
Environmental Certification

EU RoHS
Environmental Compliance

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly

Yes
Form Factor

Internal
Height

4.3″
Host Interface

Serial ATA/600
Limited Warranty

2 Year
Manufacturer Part Number

HSB3SATSASBA
Network (RJ-45)

No
Number of 1.8″ Bays

No
Number of 2.5″/3.5″ Bays

No
Number of 2.5″ Bays

No
Number of 3.5″ Bays

3
Number of 5.25″ Bays

No
Number of Hard Drives Installed

No
Number of Hard Drives Supported

3
Number of Total Expansion Bays

3
Package Contents

3 SATA HDD Backplane 1 x Installation Screw Kit 1 x Instruction Manual 2 x Bay Key s 3 x 18″ SATA Cables
Product Color

Black
Product Material

Aluminum
Product Name

3 SATA HDD Backplane
Product Type

Drive Enclosure
REACH Declaration URL

https://media.startech.com/cms/pdfs/hsb3satsasba_rohs.pdf
REACH free of SVHC

Yes
WEEE Statement

https://media.startech.com/cms/pdfs/hsb3satsasba_weee.pdf
Width

5.7″
Wireless LAN

No
