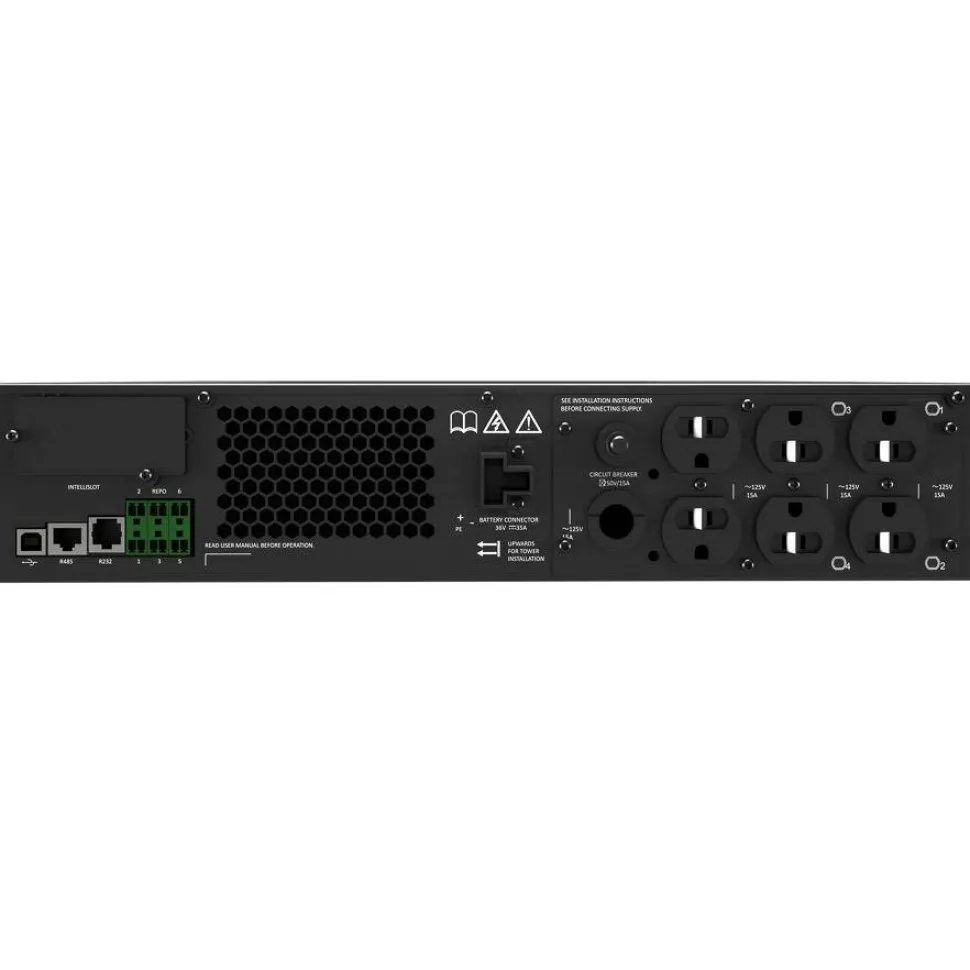

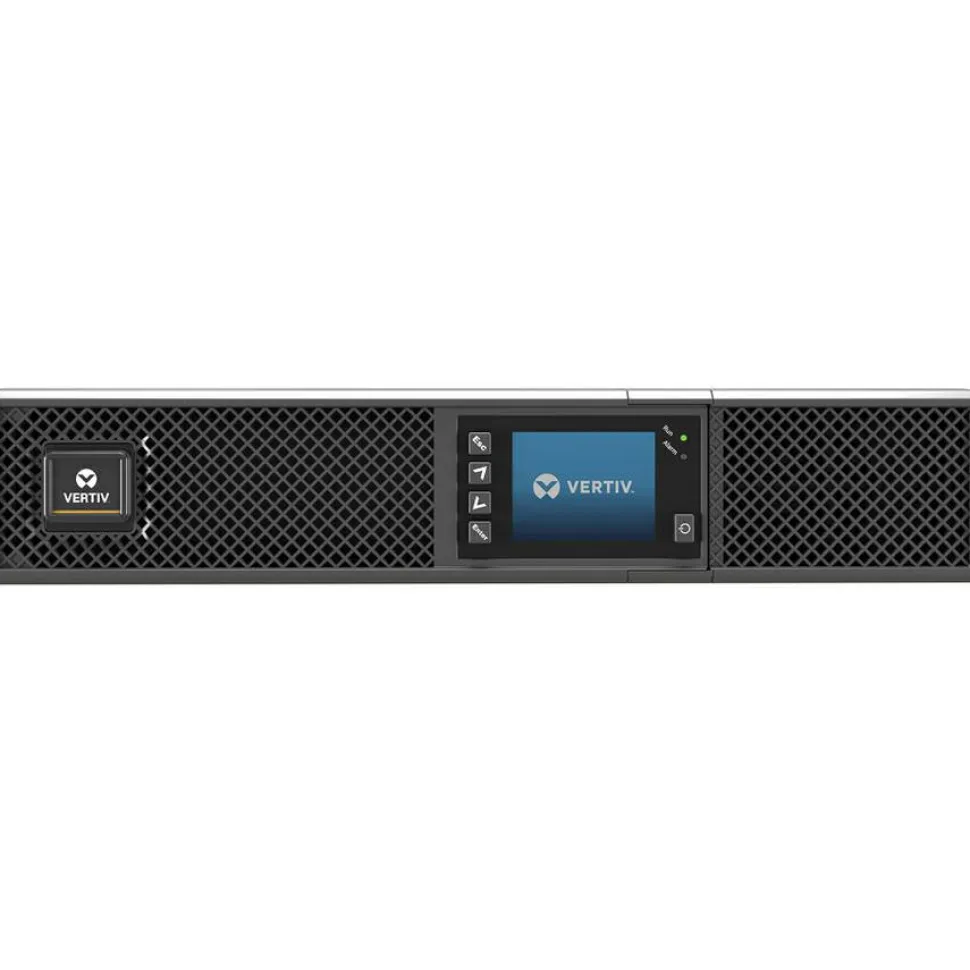

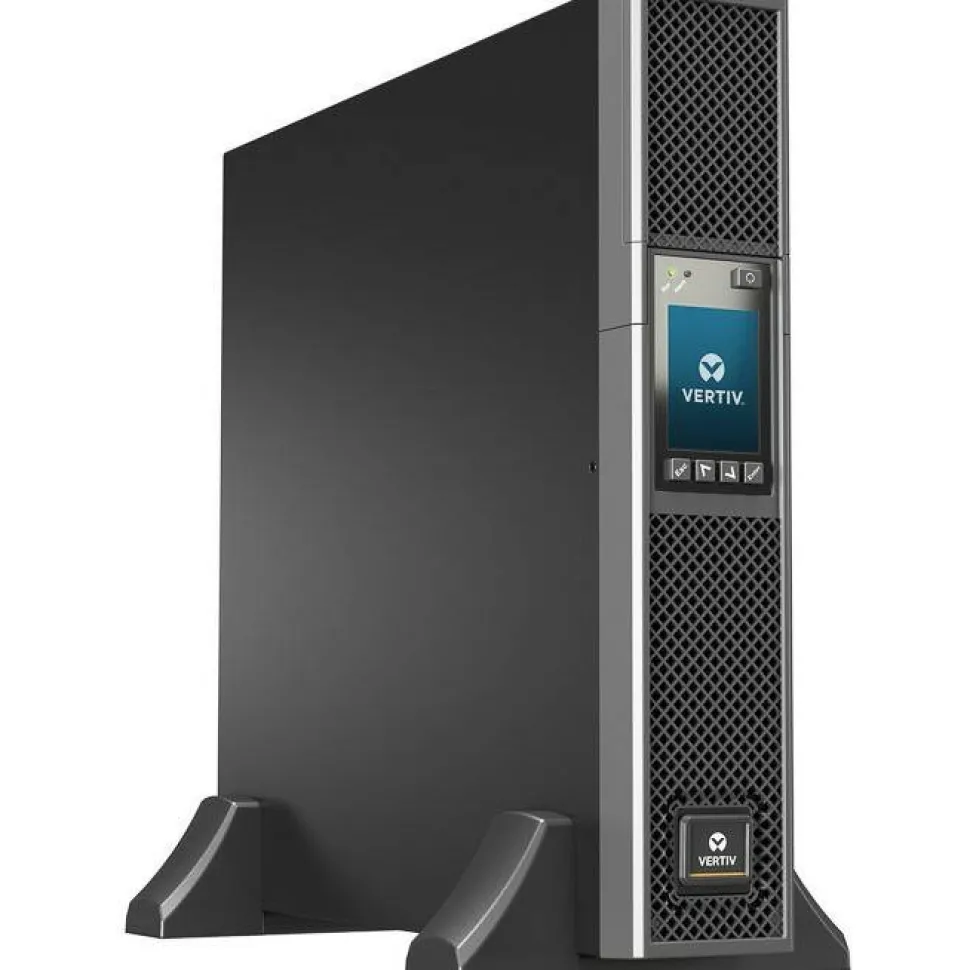

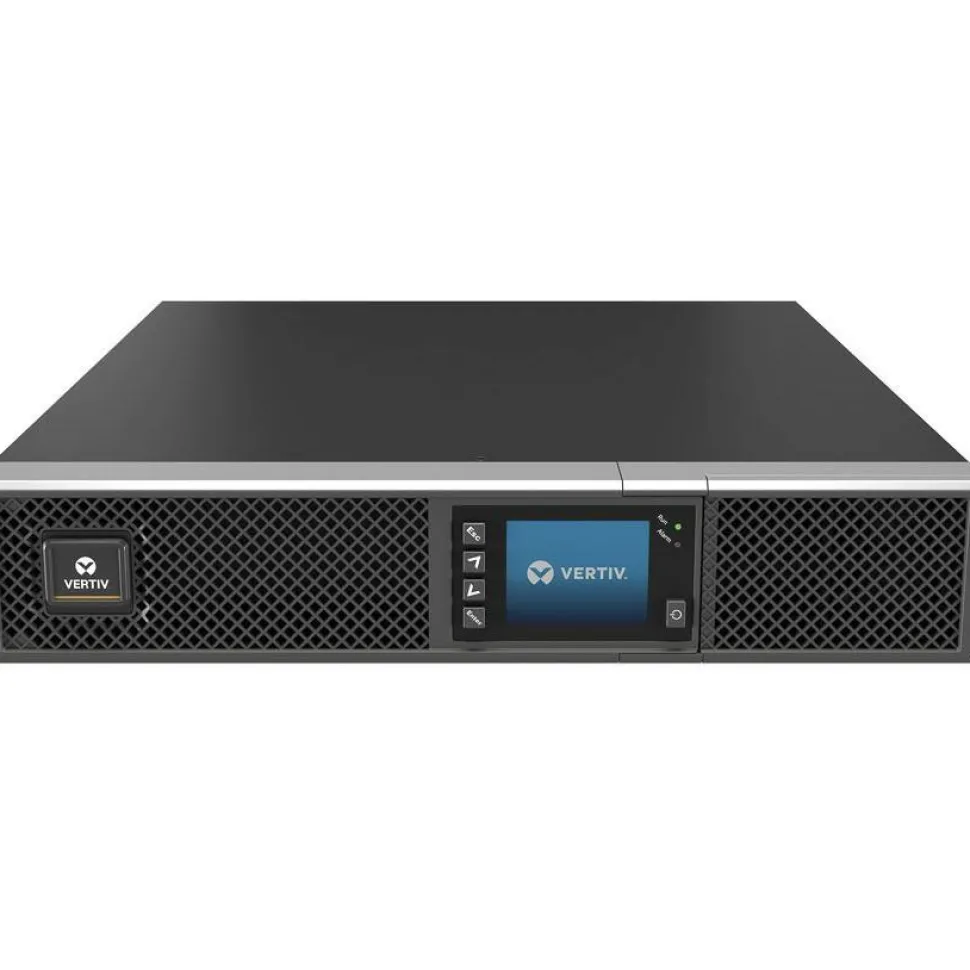

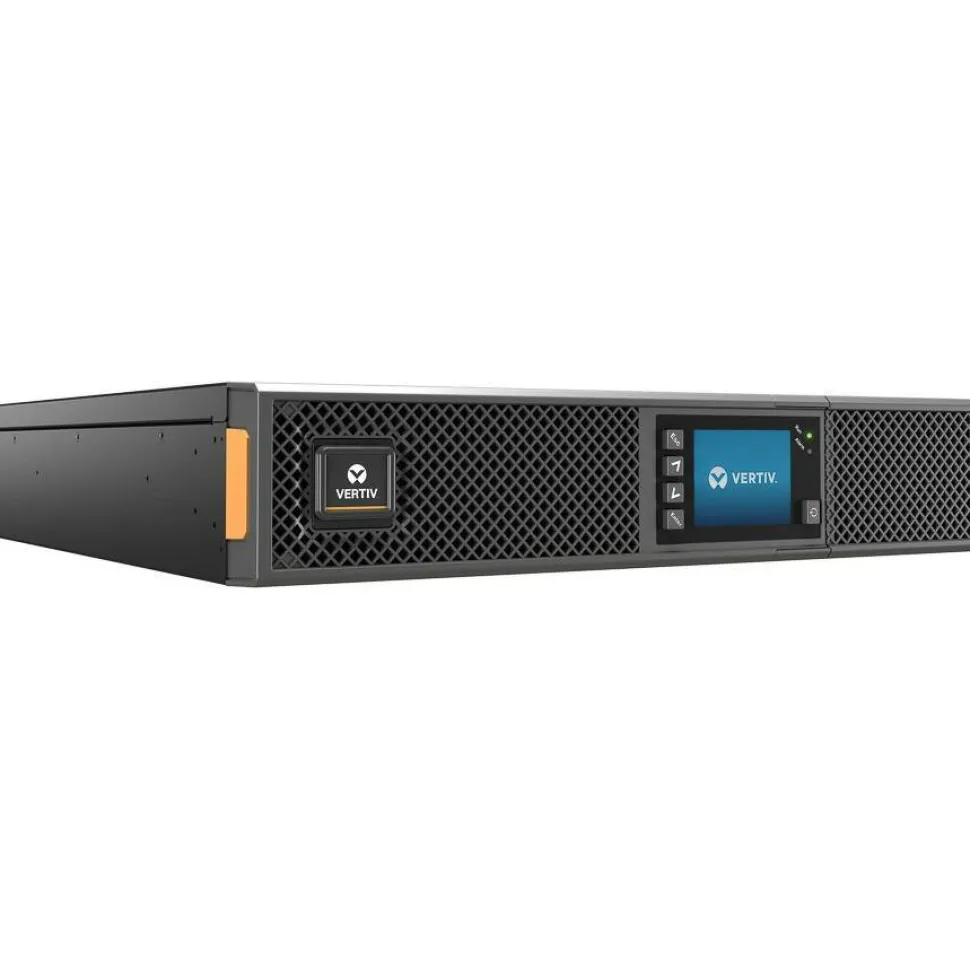

Vertiv Liebert GXT5 UPS - 1000VA/1000W 120V | Online Rack Tower Energy Star

Vertiv Liebert GXT5 UPS – 1000VA/1000W 120V | Online Rack Tower Energy Star

$138.89

SKU: SKUnPYVO5PZFo Categories: Batteries, Power & Backup, Power Backup & Safety, Technology Tag: Vertiv Liebert Brand: Vertiv Liebert

Description
Reviews (0)

Product Description

Vertiv Liebert GXT5 UPS – 1000VA/1000W 120V | Online Rack Tower Energy Star

Double Conversion| 2U| Optional RDU120 Card| Color/Graphic LCD| 3-Year Warranty

The Vertiv Liebert GXT5 UPS, with a capacity of 1000VA/1000W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
More from the Manufacturer

Reliable, easy-to-manage power protection and battery backup with 1000VA (1000W) capacity.
Highest power factor available on standard input connections.
Four individual programmable output receptacle for device control and management for optimum battery usage.
Its user-friendly interface includes color graphic display with gravity sensing feature.
It is 2019 ENERGY STAR 2.0 certified and has higher operating efficiency in standard and eco-mode.
Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
Keep your sensitive devices powered with a backup of up to 6 minute at full load
1000 W load capacity – backup power for your valuable electronics
1000 VA load capacity – work without any interruption during power outages
3 batteries for maximum feasibility and added productivity
12V battery size for maximum productivity with added dependability
3 Hour typical battery recharge time for better convenience and prolonged, productive usage
Lead Acid battery chemistry delivers energy to the it equipment through an easily controlled reaction
NEMA 5-15P plug/connector type for convenient usage with added dependability
NEMA 5-15R receptacle type provides secure, reliable connection with added productivity

Product Specifications

Additional Information

Operating Temperature,°F (°C):+32 to +104 (0 to 40) Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C. Relative Humidity:0% to 95%, non-condensing Audible Noise: <46dBA max @ 3 ft. (1m) front and sides < 43dBA, at 3 ft. (1m) rear
Application/Usage

IT Equipment Mission Critical Equipment
Assembly Required

No
Backup/Run Time With External Battery Cabinet (Full Load)

28.50 Minute
Backup/Run Time With External Battery Cabinet (Half Load)

1.08 Hour
Battery Chemistry

Lead Acid
Battery Life

5 Year
Battery Size

12V
Brand Name

Vertiv Liebert
Certifications & Standards

UL1778, 4th Ed. FCC Part 15 Class A ANSI C62.41 Cat. B ISTA 1A
Circuit Breaker

Yes
Cord Length

10 ft
Country of Origin

China
Depth

15.70″
EPO Port

Yes
Emergency Power OFF

Yes
Environmental Compliance

Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) 2
Environmental Sensors

Humidity Sensor Leak Detection Sensor Temperature Sensor
Environmentally Friendly

Yes
Form Factor

Rack/Tower
Height

3.40″
Hot Pluggable

Yes
Hot Swappable

Yes
Input Current

10 A
Input Frequency

70 Hz
Input Voltage

120 V AC
Input Voltage Range

60 V AC – 150 V AC
Limited Warranty

3 Year
Load Capacity (VA)

1000 VA
Load Capacity (Watt)

1000 W
Manufacturer Part Number

GXT5-1000LVRT2UXL
Maximum Operating Elevation

9842.52 ft
Maximum Operating Temperature

104°F (40°C)
Maximum Storage Elevation

49212.60 ft
Modem (RJ-11)

No
Number of Batteries

3
Number of External Battery Cabinets

1
Output Current

8.30 A
Output Voltage

120 V AC
Package Contents

GXT5 1000VA 120V UPS 4 Post Rack Mounting Tower Stand USB Cable User Guide Safety Instruction Manual
Phase

Single Phase
Plug/Connector Type

NEMA 5-15P
Product Color

Black
Product Name

GXT5 1000VA 120V UPS
Product Series

GXT
Product Type

Double Conversion Online UPS
Rack Height

2U
Receptacle Detail

6 x NEMA 5-15R
Receptacle Type

NEMA 5-15R
Serial Port

Yes
Software Included

Free Download – Power Insight 2.2
Status Indicators

Color LCD
Storage Temperature

-4°F (-20°C) – 140°F (60°C)
Transfer Time

0 ns
Typical Battery Recharge Time

3 Hour
USB (HID Compliant) Port

Yes
User Selectable Output

Typical 120V User Selectable Output: 110/115/120/125VAC (user-configurable); ±3%
Utility (AC) Mode Overload

>200% for 250ms 150- 200% for 50 seconds 125- 150% for 60 seconds 105-125% for 60 seconds
VGA

No
Waveform Type

Pure Sine Wave
Width

16.90″
