Tripp Lite by Eaton Wallmount Rack 4U Vertical Rack Bracket 175lb Capacity

Tripp Lite by Eaton Wallmount Rack 4U Vertical Rack Bracket 175lb Capacity

$69.99

SKU: SKUeOWhTFH973 Categories: Networking & Cables, Networking Accessories, Technology Tag: Tripp Lite Series Brand: Tripp Lite Series

Description
Reviews (0)

Product Description

Tripp Lite by Eaton Wallmount Rack 4U Vertical Rack Bracket 175lb Capacity

Black

The SRWALLBRKT4U SmartRack 4U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn’t need to be secured and no room on the premises for a standard 19-inch wall-mount rack.

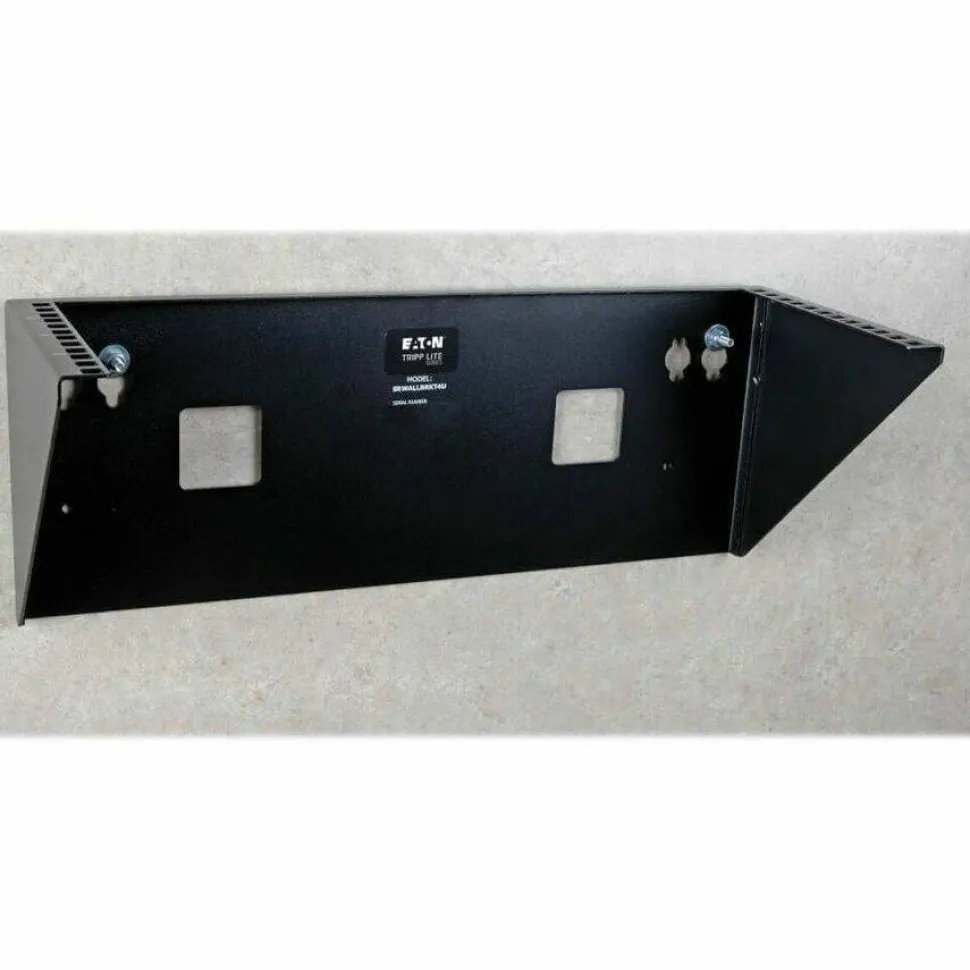

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 4U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

Use the included hardware to attach your 4U rack-mount equipment, such as a network switch or UPS system, to the steel bracket’s rails. Its maximum load capacity is 175 pounds. Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT4U is compatible with most EIA-standard 19-inch two-post rack equipment.
More from the Manufacturer

4U Wall-Mount Bracket Allows Vertical Mounting in a Closet or Back Office
Recommended for home offices and small businesses with no room for standard 19 in. rack
Provides open, unrestricted access to equipment and cabling
Maximum load capacity of 175 lb.
Cold-rolled steel construction with black powder-coated finish designed for long life
Ships fully assembled for quick installation
Attaches to the Wall with User-Supplied Hardware

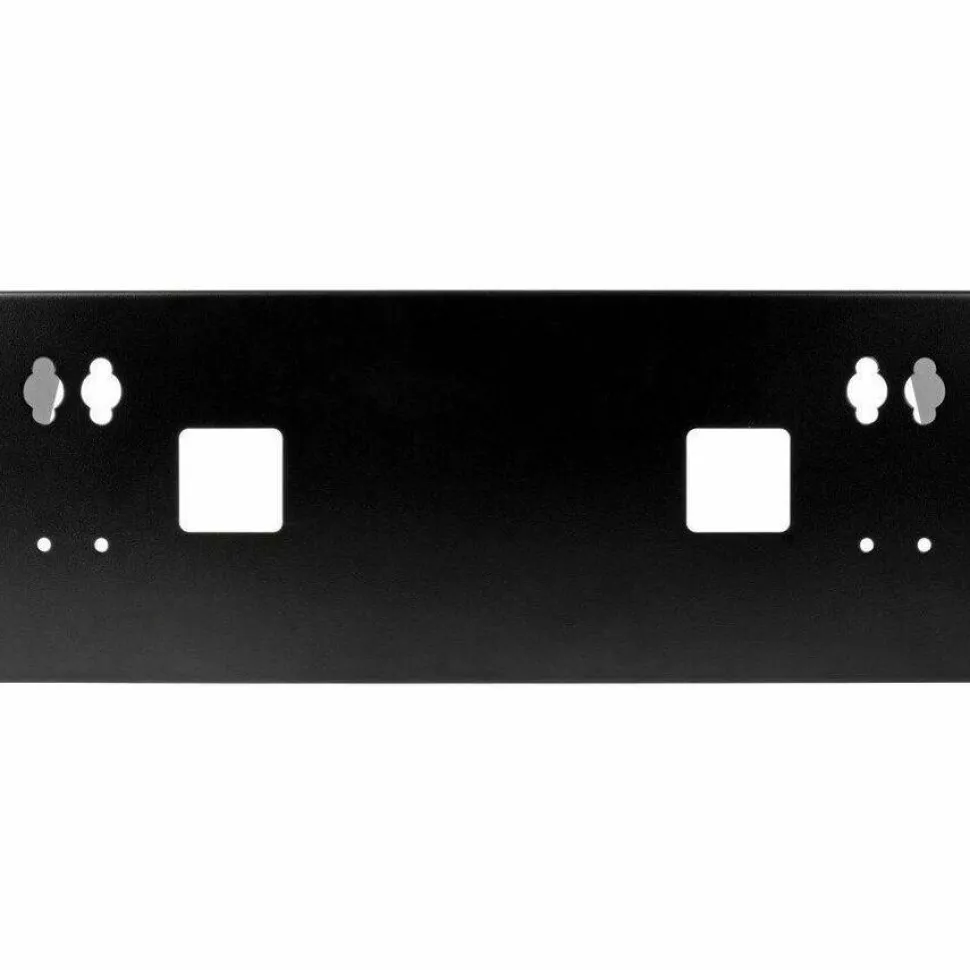

Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Also mounts horizontally beneath a desk or workbench

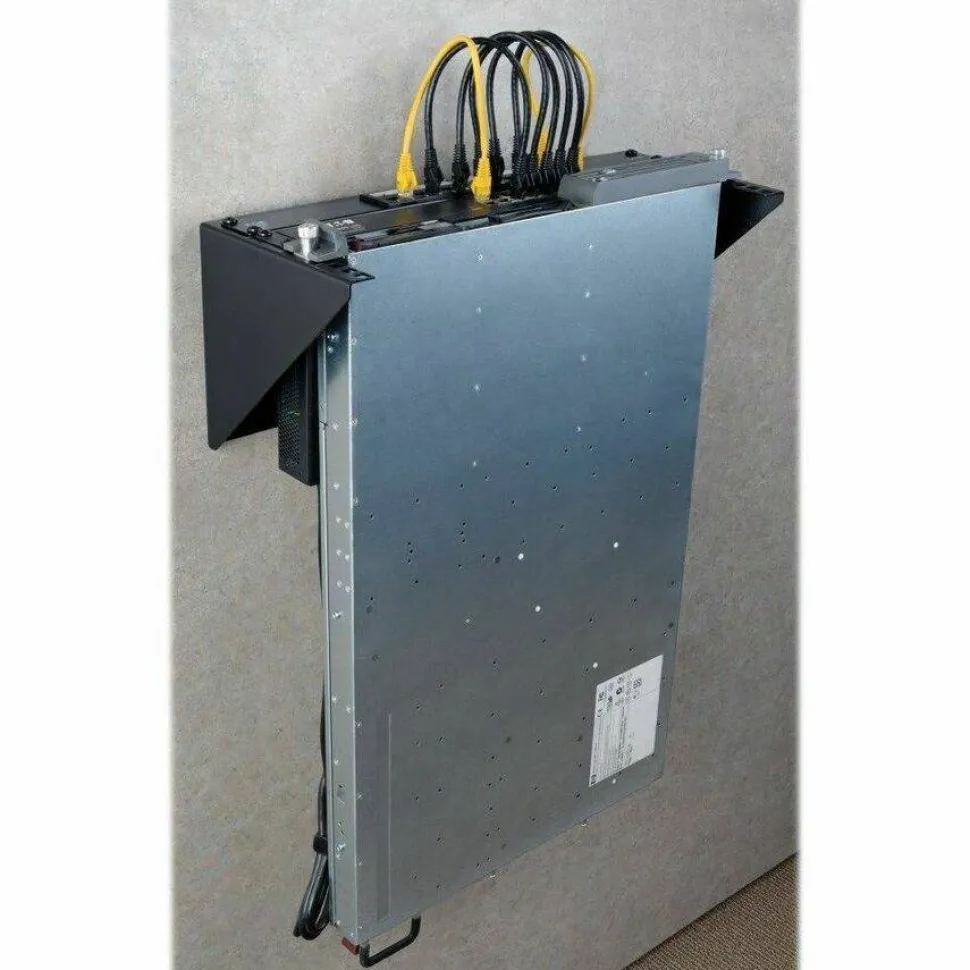

Component hangs flush against the wall for unrestricted out-of-the-way access
Allows the rod to flex and rotate, but stay firm in the position where it is attached to the frame
Sustains a maximum load capacity of 175 lb

Product Specifications

Brand Name

Tripp Lite series
Country of Origin

China
Depth

7.66″
Device Supported

Network Switch Server UPS
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmentally Friendly

Yes
Height

7.66″
Limited Warranty

5 Year
Manufacturer Part Number

SRWALLBRKT4U
Maximum Load Capacity

175 lb
Package Contents

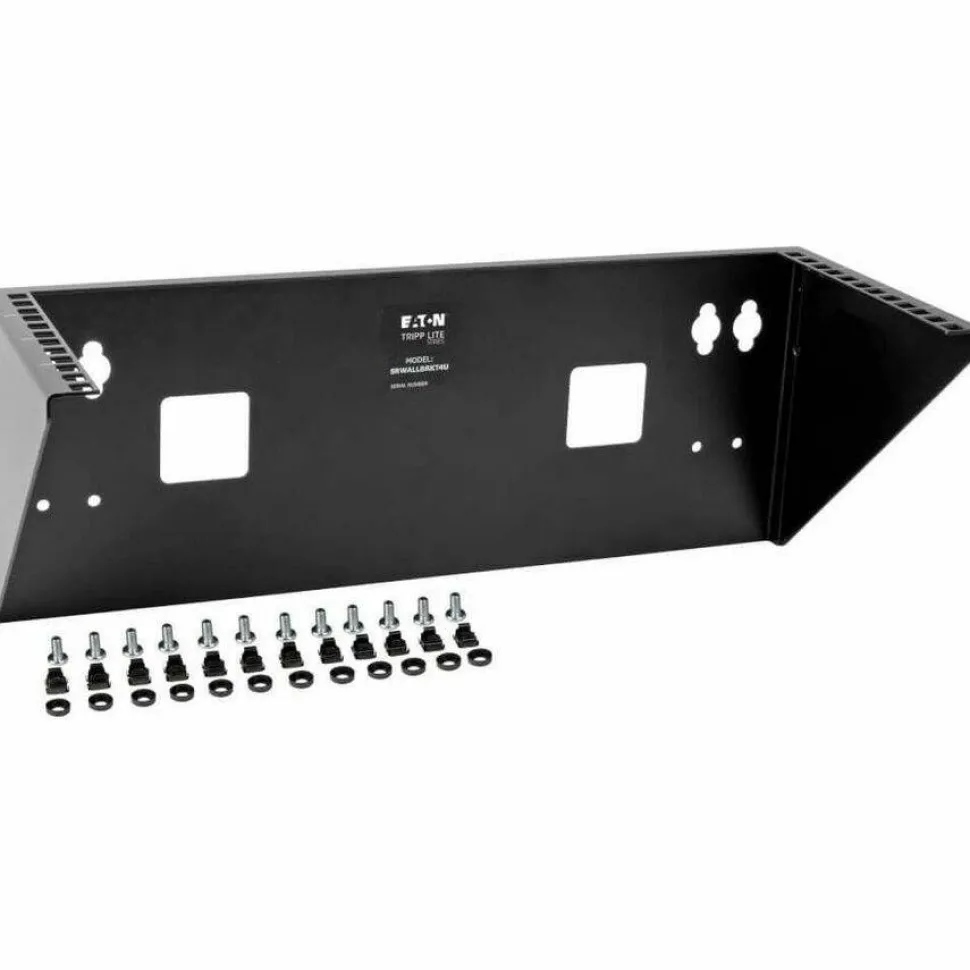

SmartRack 4U Vertical Wall-Mount Rack Bracket 12 x M6 Screws 12 x M6 Cup Washers 12 x M6 Cage Nuts Installation Guide
Product Color

Black
Product Line

SmartRack
Product Model

SRWALLBRKT4U
Product Name

SmartRack 4U Vertical Wall-Mount Rack Bracket
Product Type

Mounting Bracket
Width

19.69″
