Tripp Lite by Eaton UPS SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS 1U Rack/Vertical Pre-installed WEBCARDLX Network Interface USB DB9 Serial

Tripp Lite by Eaton UPS SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS 1U Rack/Vertical Pre-installed WEBCARDLX Network Interface USB DB9 Serial

$134.89

SKU: SKUgkqnSnMsph Categories: Batteries, Power & Backup, Power Equipment & Supplies, Technology Tag: Tripp Lite Series Brand: Tripp Lite Series

Description
Reviews (0)

Product Description

Tripp Lite by Eaton UPS SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS 1U Rack/Vertical Pre-installed WEBCARDLX Network Interface USB DB9 Serial

750 VA/600 W – 120 V AC – 4.90 Minute Stand-by Time – 1U Rack-mountable – 6 x NEMA 5-15R

Tripp Lite SMART750RM1U 750VA /.75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
More from the Manufacturer

.75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
120V output, Corrects brownouts and overvoltages from 83V to 147V

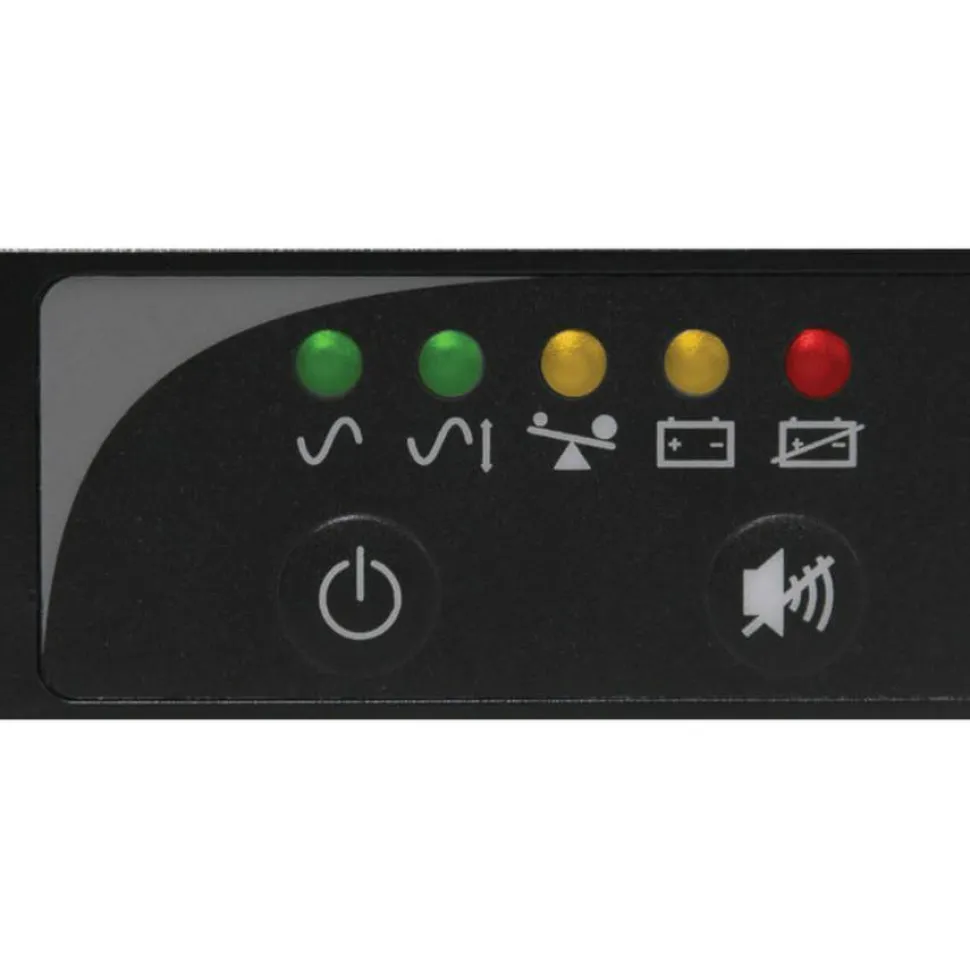

0.8 Power Factor, Front panel status LEDs
Mounting brackets support 2 and 4 post installation
98% line-mode efficiency, 2 switched load banks

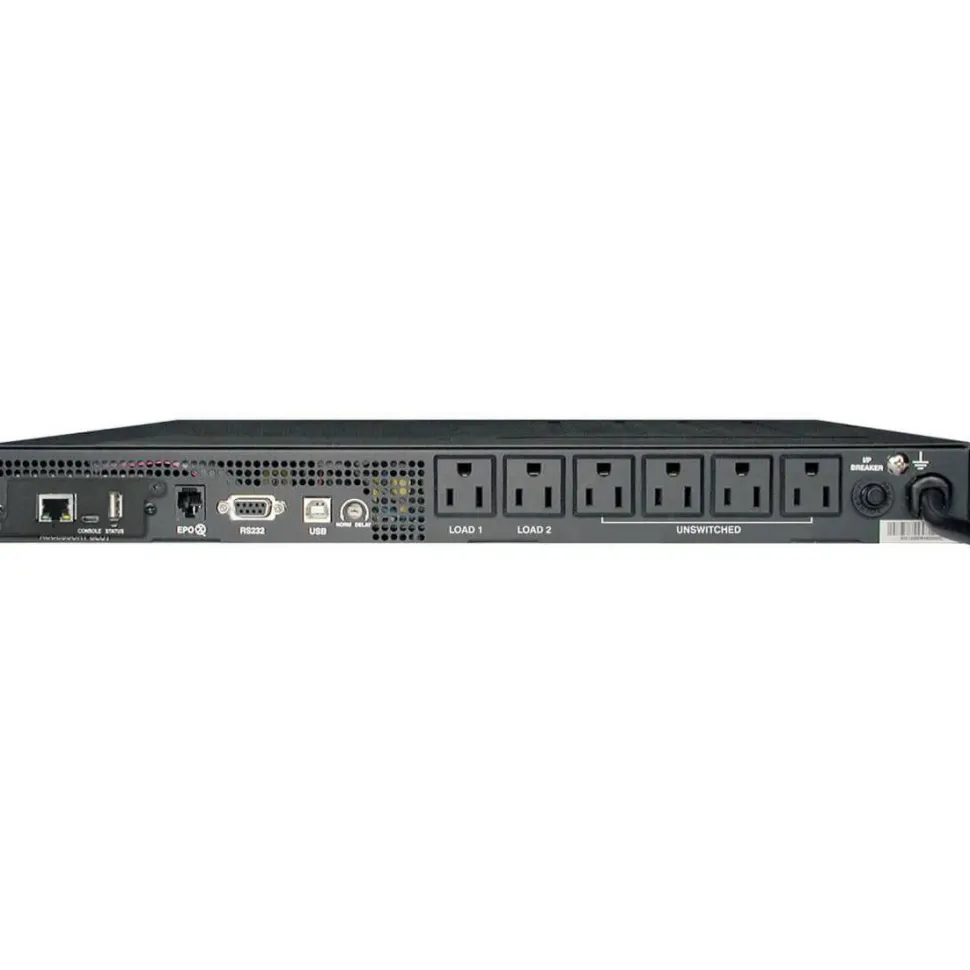

USB, RS232, EPO and Pre-installed WEBCARDLX Network Interface
120V NEMA 5-15P input, 6 NEMA 5-15R outlets
Experience higher efficiency with lower energy cost
Up to 4.90 minute runtime on full load to preserve critical data from power shortage interruptions
Prevent critical data loss by staying powered during a blackout with up to 600 W load capacity
750 VA load capacity – work without any interruption during power outages
13.20 Minute typical battery recharge time to allow uninterrupted usage without requiring power outlet
NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
120 V AC input voltage for optimal performance with maximum usability
120 V AC output voltage for better reliance and maximum usability
Rack-mountable line-interactive ups allows easy and convenient usage without any hassle

Product Specifications

Brand Name

Tripp Lite series
Country of Origin

Taiwan
Depth

16.80″
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmentally Friendly

Yes
Form Factor

Rack-mountable
Height

1.70″
Input Voltage

120 V AC
Limited Warranty

3 Year
Load Capacity (VA)

750 VA
Load Capacity (Watt)

600 W
Manufacturer Part Number

SMART750RM1UN
Output Voltage

120 V AC
Package Contents

SmartPro SMART750RM1UN 750VA Rack-mountable Mounting Hardware PowerAlert Unattended Shutdown and UPS/Power Monitoring Software Instruction Manual Cabling for USB & DB9 Monitoring and EPO Switching
Product Line

SmartPro
Product Model

SMART750RM1UN
Product Name

SmartPro SMART750RM1UN 750VA Rack-mountable
Product Type

Line-interactive UPS
Rack Height

1U
Receptacle Detail

6 x NEMA 5-15R
Receptacle Type

NEMA 5-15R
Typical Battery Recharge Time

13.20 Minute
Width

17.50″
