Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU Outlet Monitoring 208/230V Outlets (20 C13 & 4 C19) 0U LX Interface TAA

Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU Outlet Monitoring 208/230V Outlets (20 C13 & 4 C19) 0U LX Interface TAA

Original price was: $1,531.00.Current price is: $124.99.

SKU: SKUruC0QYzCxt Categories: Networking & Cables, Networking Accessories, Technology Tag: Eaton Brand: Eaton

Description
Reviews (0)

Product Description

Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU Outlet Monitoring 208/230V Outlets (20 C13 & 4 C19) 0U LX Interface TAA

NEMA L6-30P – 20 x IEC 60320 C13, 4 x IEC 60320 C19 – 230 V – 5.80 kVA – 0U – Vertical Rackmount – TAA Compliant

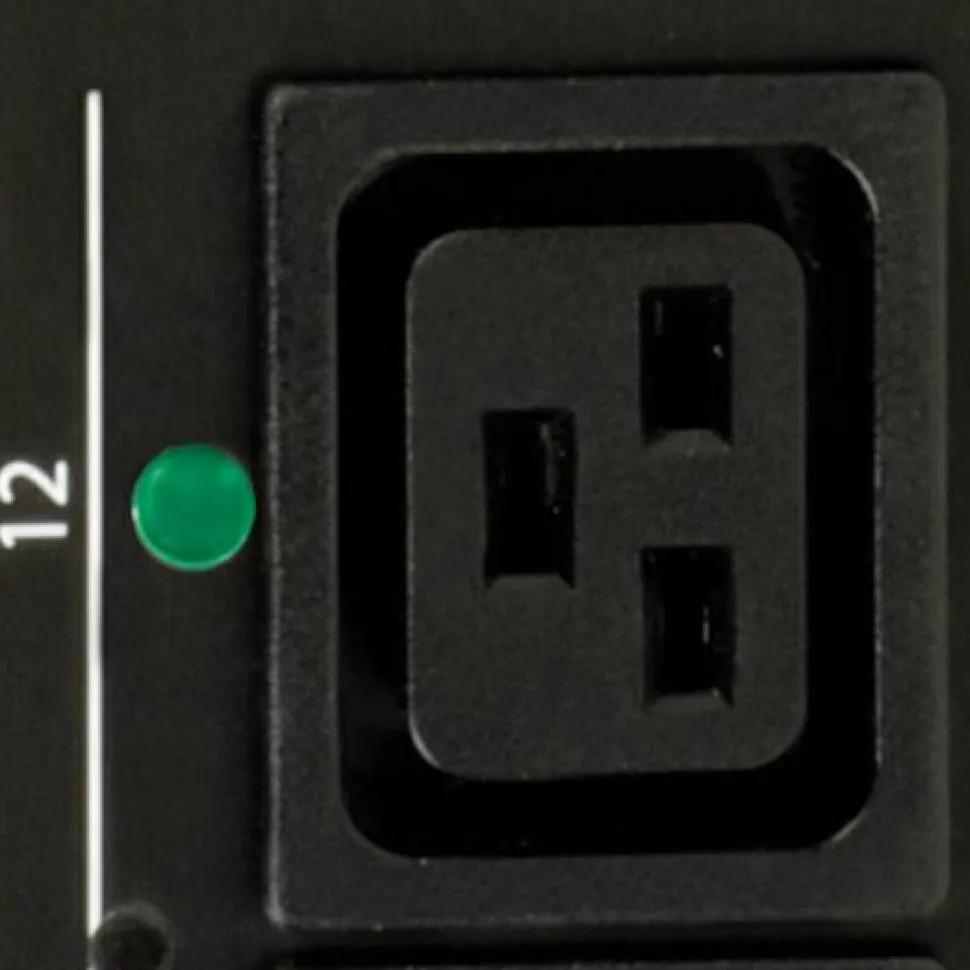

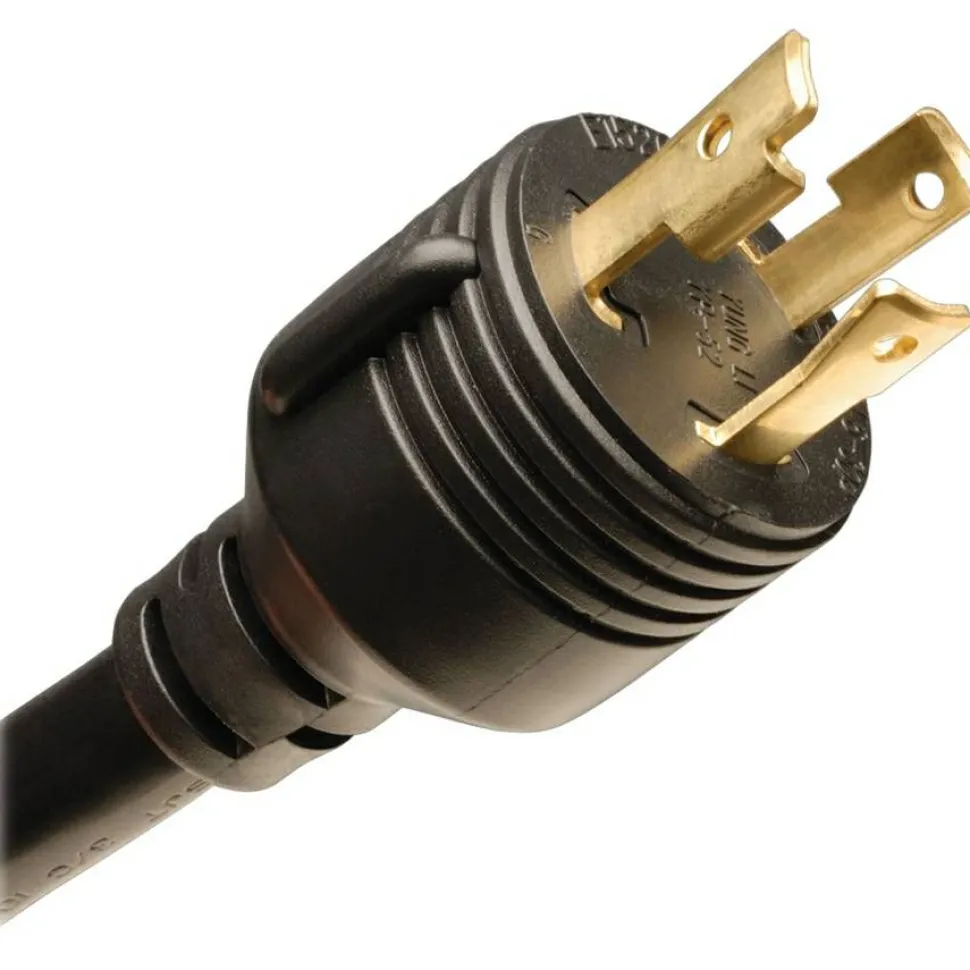

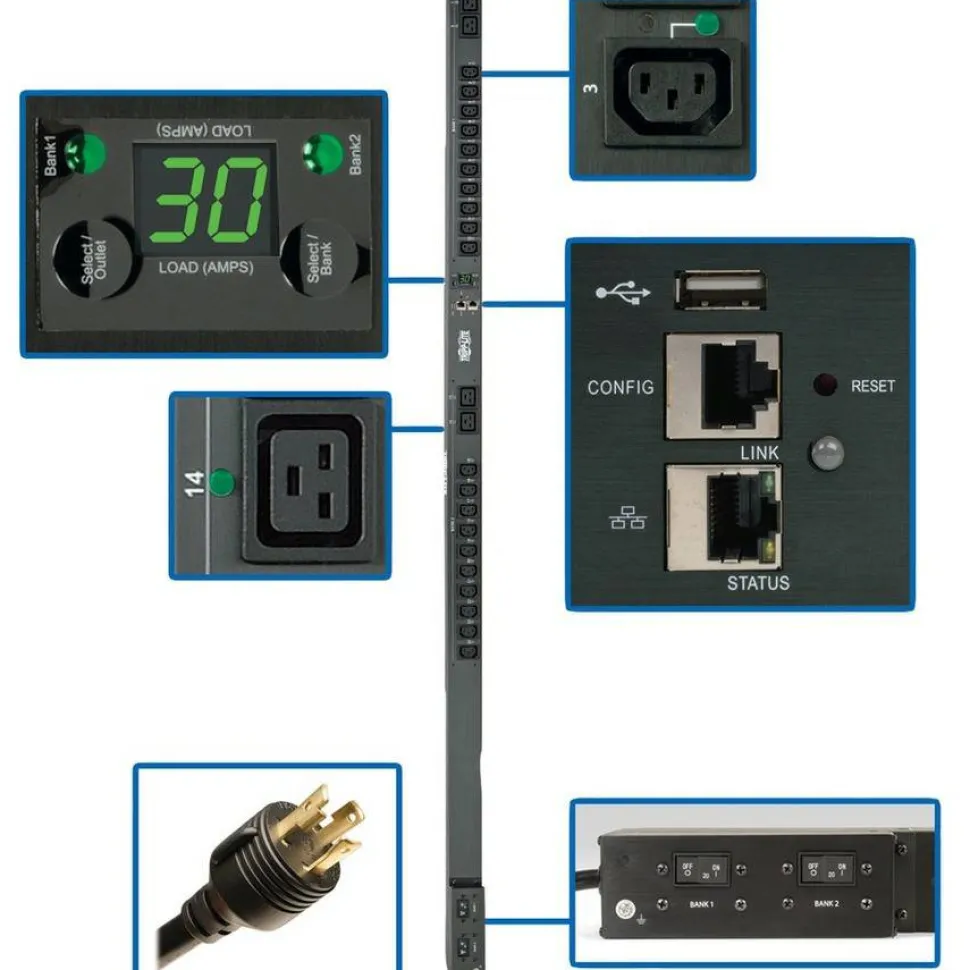

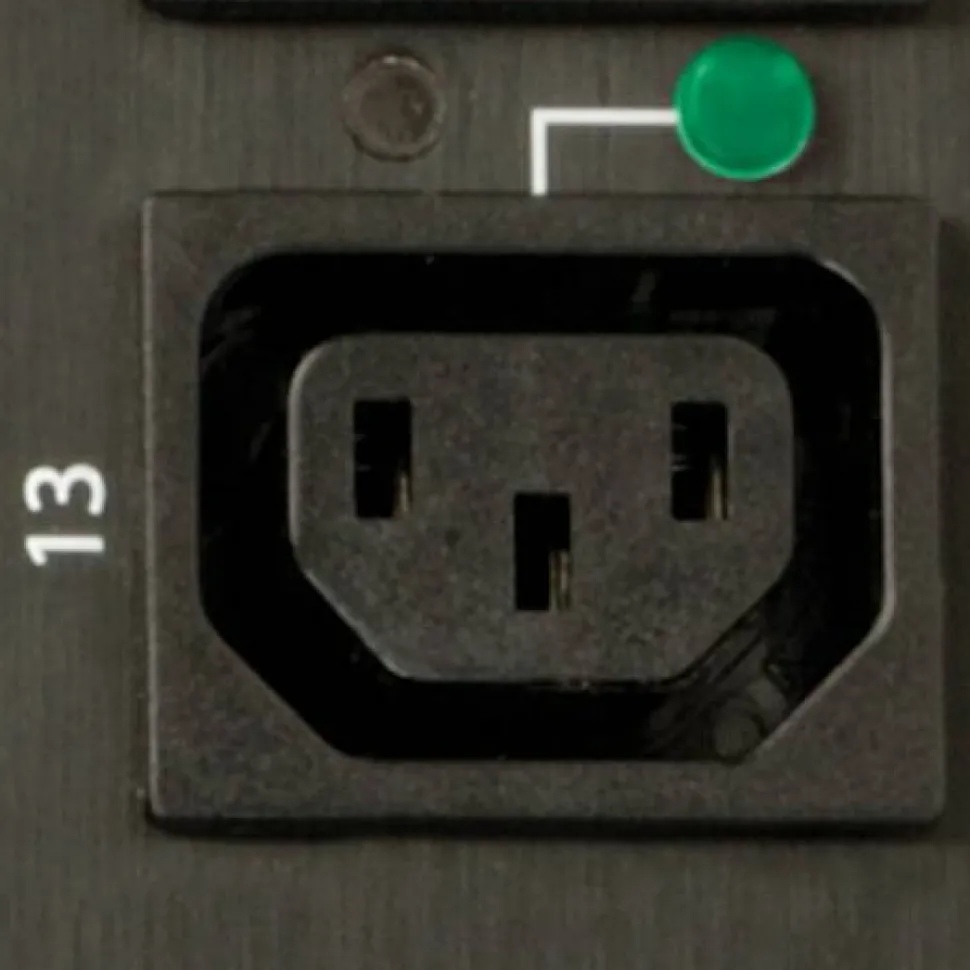

The PDUMVR30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet’s on/off power status, and you can monitor each outlet’s power consumption remotely or via digital display. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

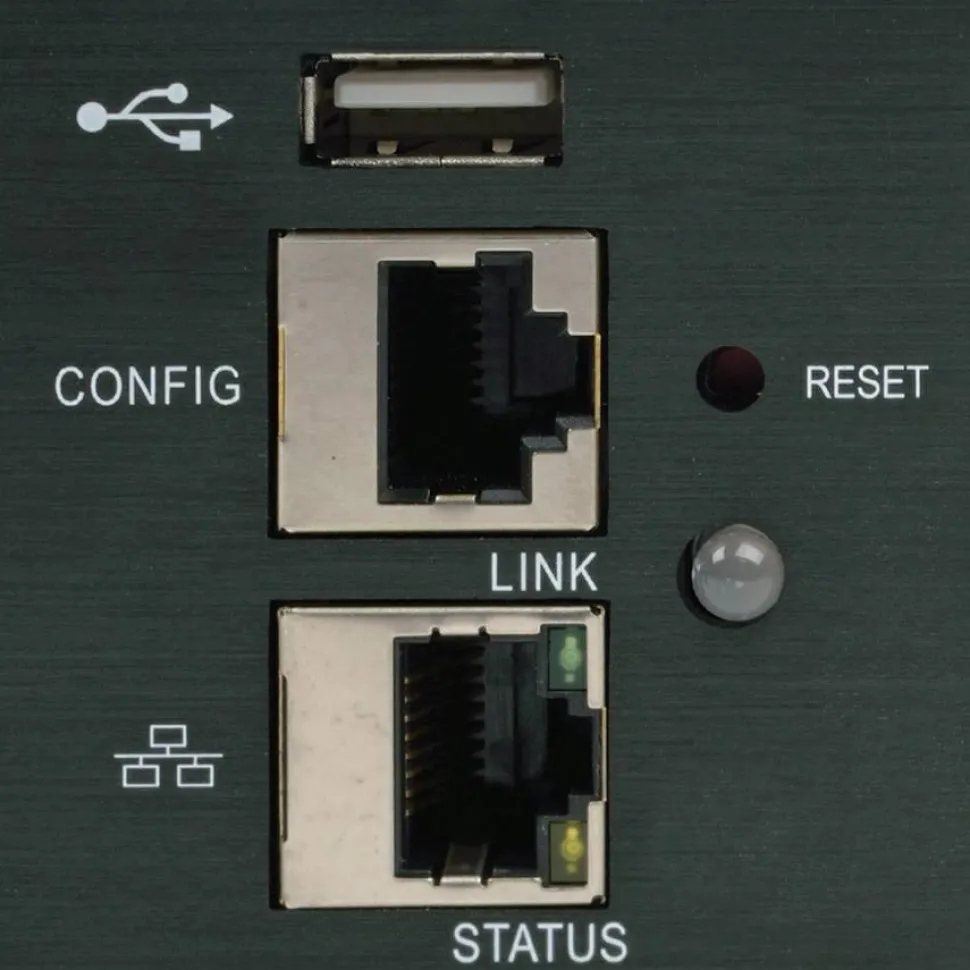

The built-in Java-free HTML5-based LX Platform interface enables full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

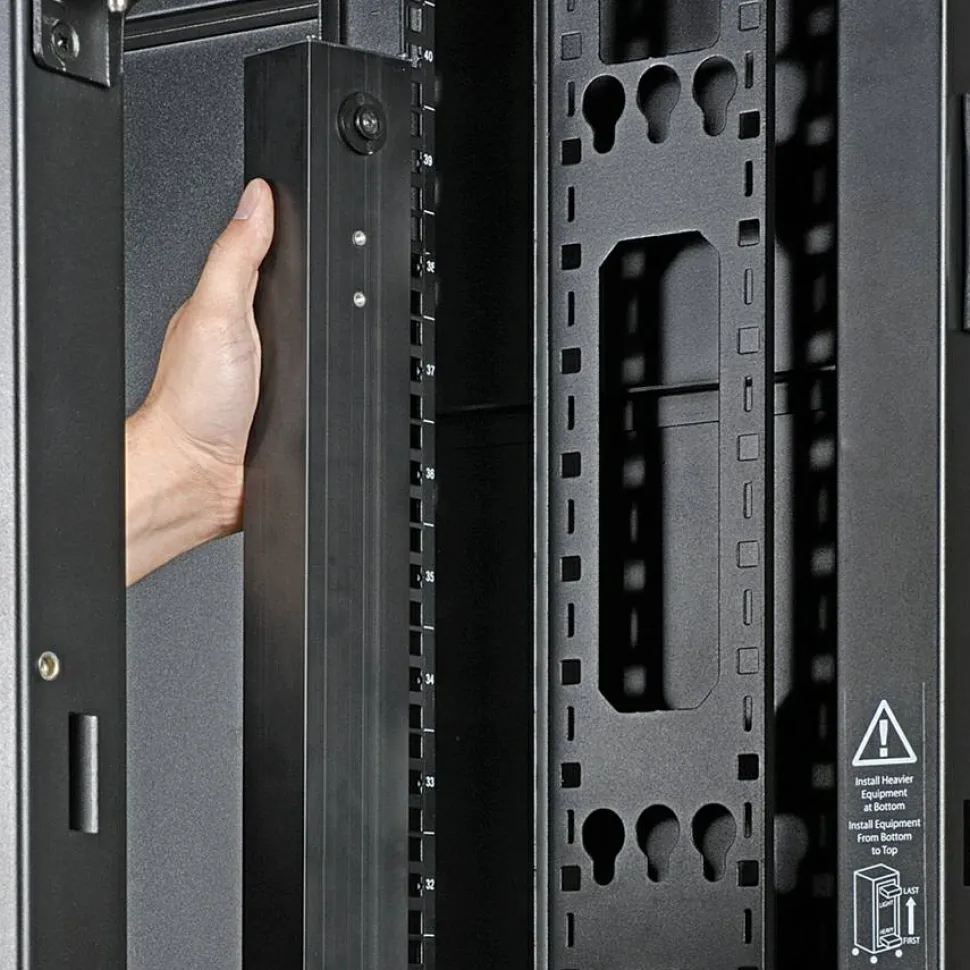

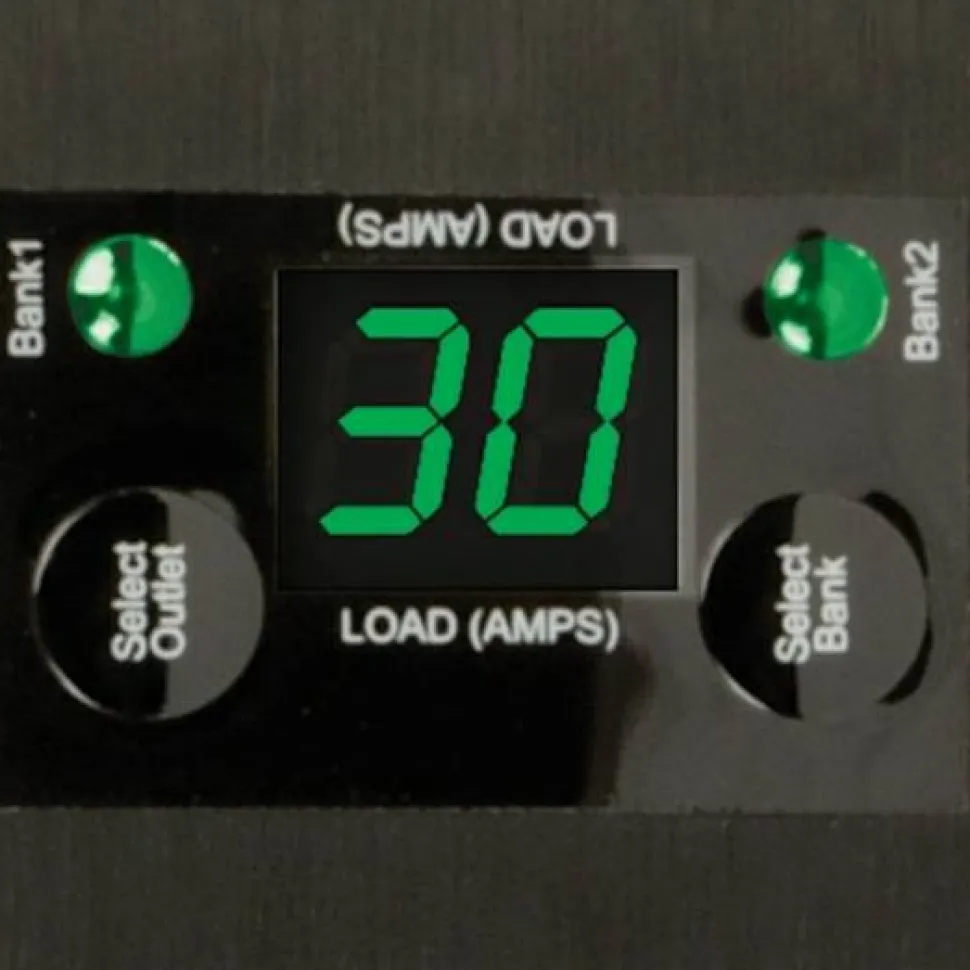

A digital LED meter allows you to monitor each bank’s load in real time to ensure the PDUMVR30HVNETLX is used at maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the includedPDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
More from the Manufacturer

5/5.8kW 208/240V 30A switched PDU
24 switched outlets-20 C13, 4 C19
Ethernet network interface for remote outlet access 24/7
Digital meter for load monitoring in real time
Monitors power consumption of individual outlets
PDU improves efficiency, uptime and growth of data centers
IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
NEMA L6-30P plug/connector type for better, dependable connectivity and desired power output
230 V AC input voltage for maximum feasibility and added productivity
230 V AC output voltage for optimal performance with maximum feasibility

Product Specifications

Brand Name

Eaton
Country of Origin

Taiwan
Depth

2.6″
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmentally Friendly

Yes
Height

70″
Input Current

30 A
Input Voltage

230 V AC
Limited Warranty

2 Year
Management

HTTP HTTPS PowerAlert SMTP SNMPv1 SNMPv2 SNMPv3 Telnet SSH FTP DHCP and NTP
Manufacturer Part Number

PDUMVR30HVNETLX
Mount Type

Rack-mountable
Mounting Orientation

Vertical
Output Voltage

230 V AC
Package Contents

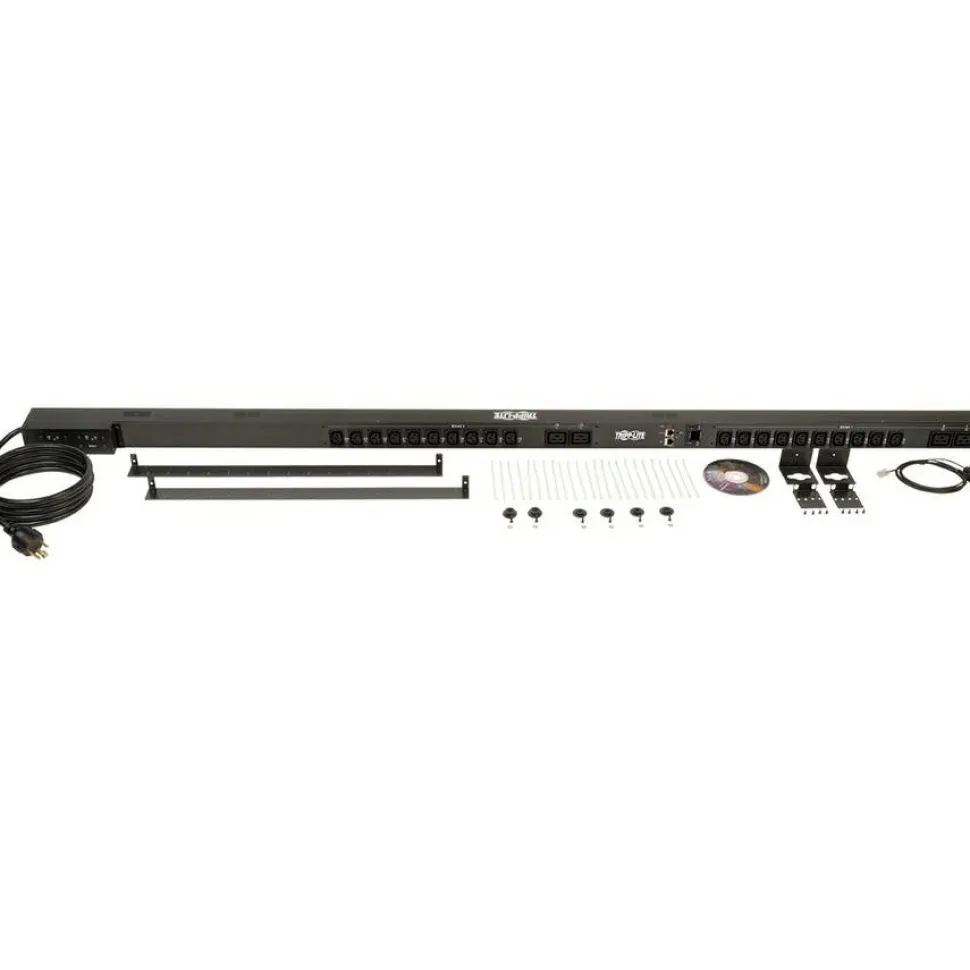

PDUMVR30HVNETLX 24-Outlet PDU Configuration Cable 24 x Cable ties Rack-mounting Hardware Owner’s Manual
Plug/Connector Type

NEMA L6-30P
Power Rating (Watt)

5800 W
Product Model

PDUMVR30HVNETLX
Product Name

PDUMVR30HVNETLX 24-Outlet PDU
Product Type

PDU
Protection Type

Overload Protection
Rack Height

0U
Receptacle Detail

20 x IEC 60320 C13 4 x IEC 60320 C19
Receptacle Type

IEC 60320 C13 IEC 60320 C19
Width

2.2″
