Tripp Lite by Eaton HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver TAA

Tripp Lite by Eaton HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver TAA

$58.99

SKU: SKUiVqp0Cckkx Categories: Networking & Cables, Networking Accessories, Technology Tag: Tripp Lite Series Brand: Tripp Lite Series

Description
Reviews (0)

Product Description

Tripp Lite by Eaton HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver TAA

Wall Mount

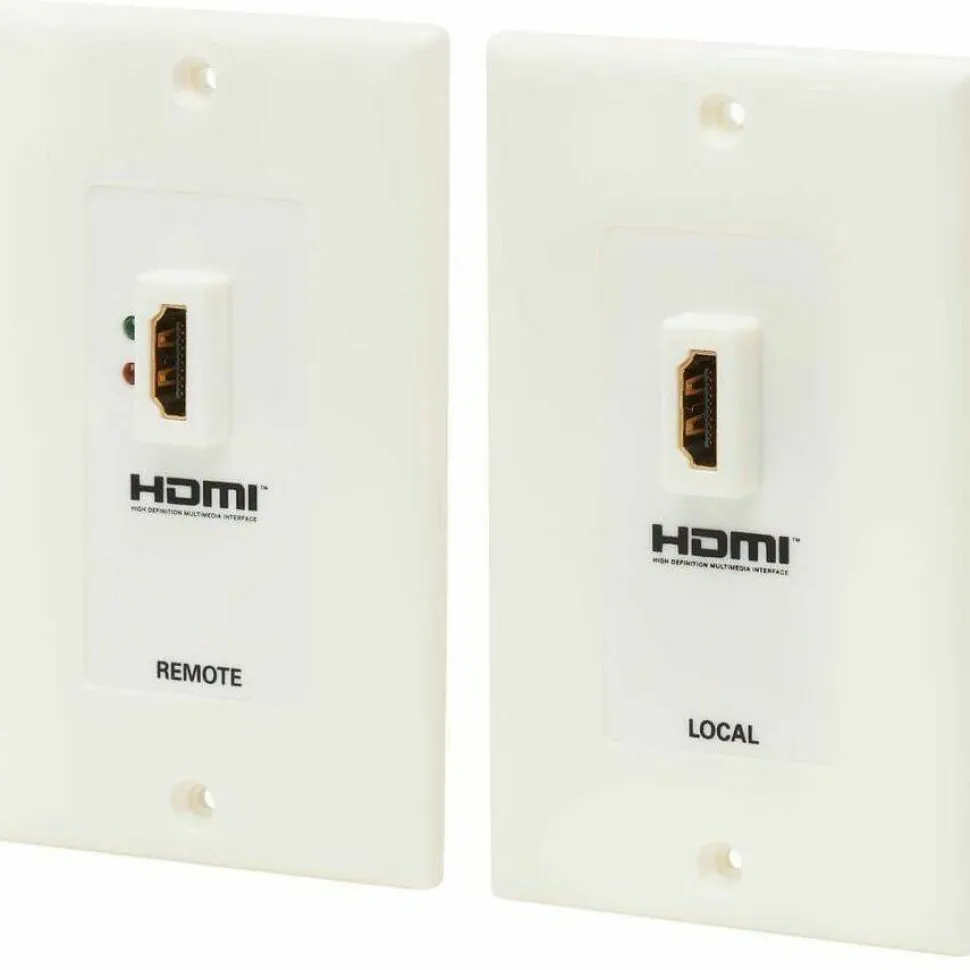

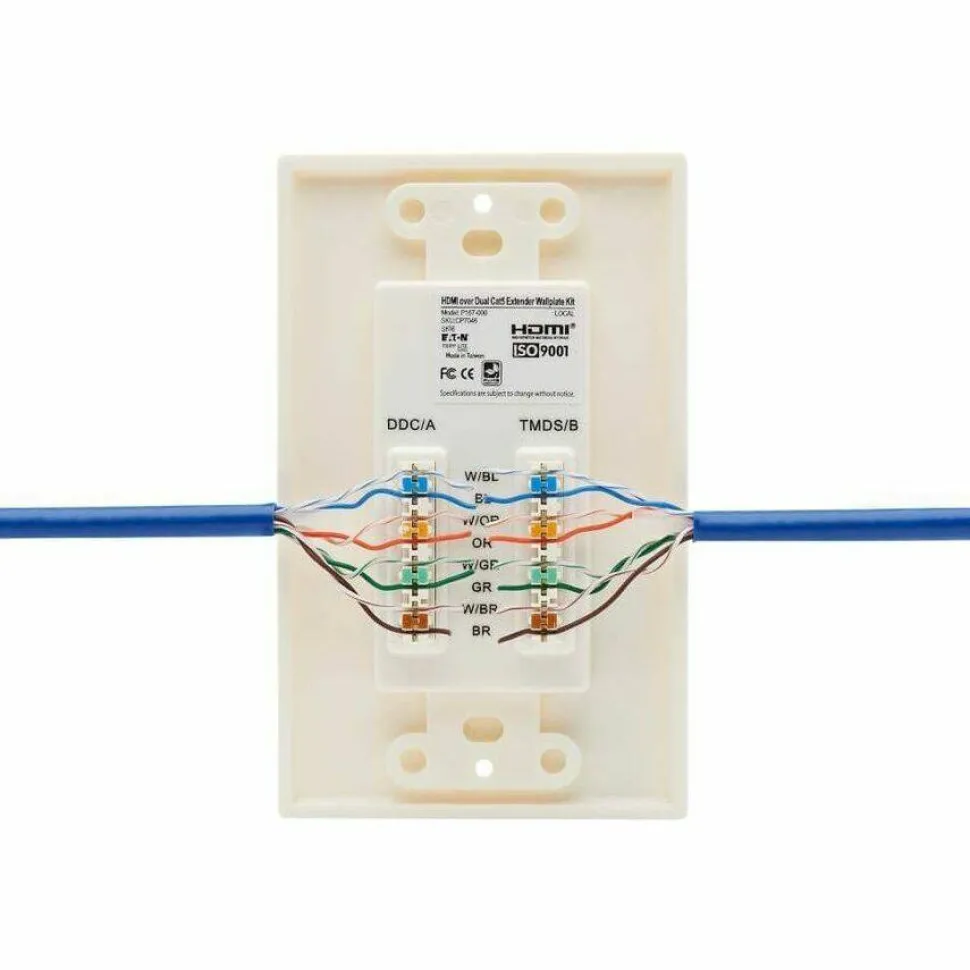

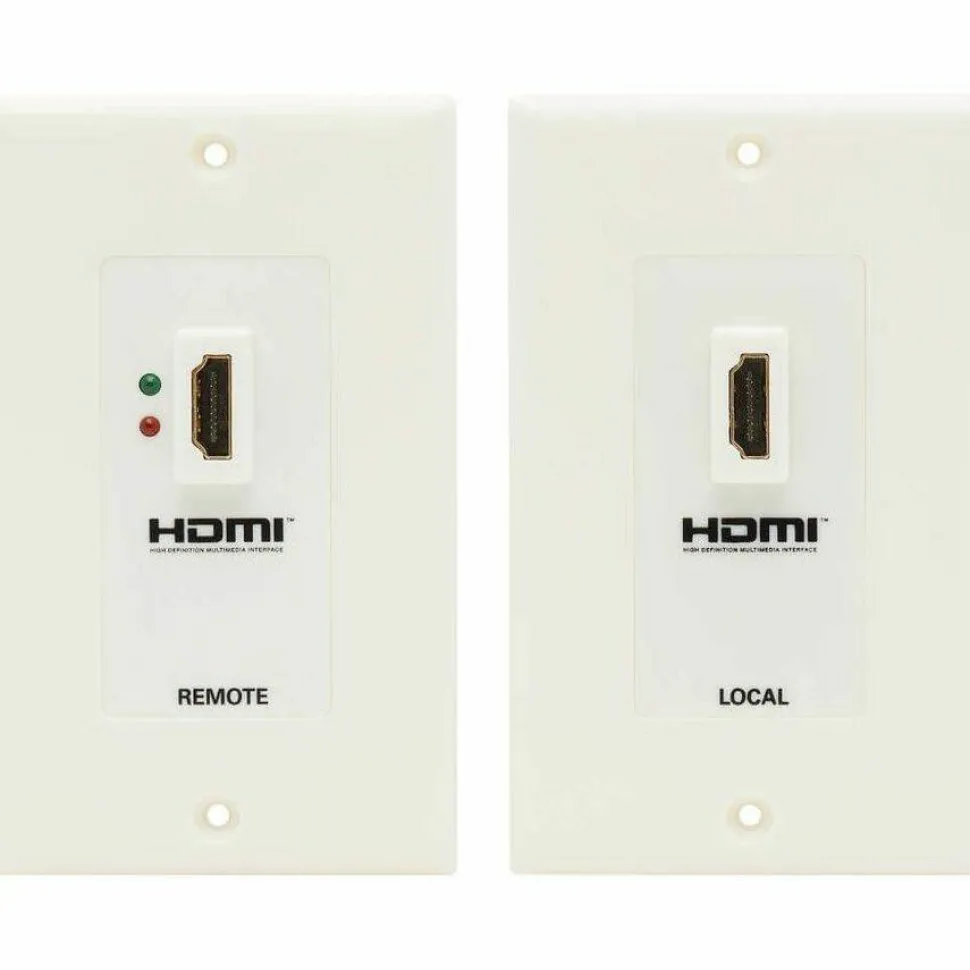

With Tripp Lites HDMI Over Cat5/Cat6 Wallplate Extender Kit, you can locate a HDMI enabled display up to 230 ft. away from the HDMI source, using readily available Cat5 or Cat6 UTP cable (for best performance, use Solid wire Cat6). The kit consists of a Passive wallplate at the source side, and an Active wallplate (with built-in signal regenerator) at the display side. Simply run two Cat5/6 UTP cables between the two wallplates, and plug in standard Tripp Lite HDMI patch cables to the HDMI source and the display. The Green LED on the Display wallplate lets you know that power and a signal are coming from a connected source. The Red LED indicates only a signal is being received. The kit is functioning properly when the unit is connected to a display and the Green LED is lit.
More from the Manufacturer

Extends a 1080p (24Hz) or 1080i (60Hz) signal up to 150 ft. using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N222-Series, or N224-Series )
Extends a 3D signal up to 100 ft. using 24Awg, Solid Wire Cat6 cabling
Supports 24-bit True Color (8-bits per channel)
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Supports HDCP, EDID and DDC
No external power required
*When using Cat5 cable, the maximum extension distance is reduced by 50 ft.
Effectively conceals wired connections to maintain safety for your employees, workers, colleagues, family members, guests, and patrons
Wall Mount allows hassle-free and easy usage with increased efficiency

Product Specifications

Brand Name

Tripp Lite series
Country of Origin

Taiwan
Features

Locate your HDMI display screen up to 230 ft. away from the HDMI source Uses ordinary Cat5 or Cat6 cable HDMI v1.3 and HDCP compliant
Limited Warranty

3 Year
Manufacturer Part Number

P167-000
Mount Type

Wall Mount

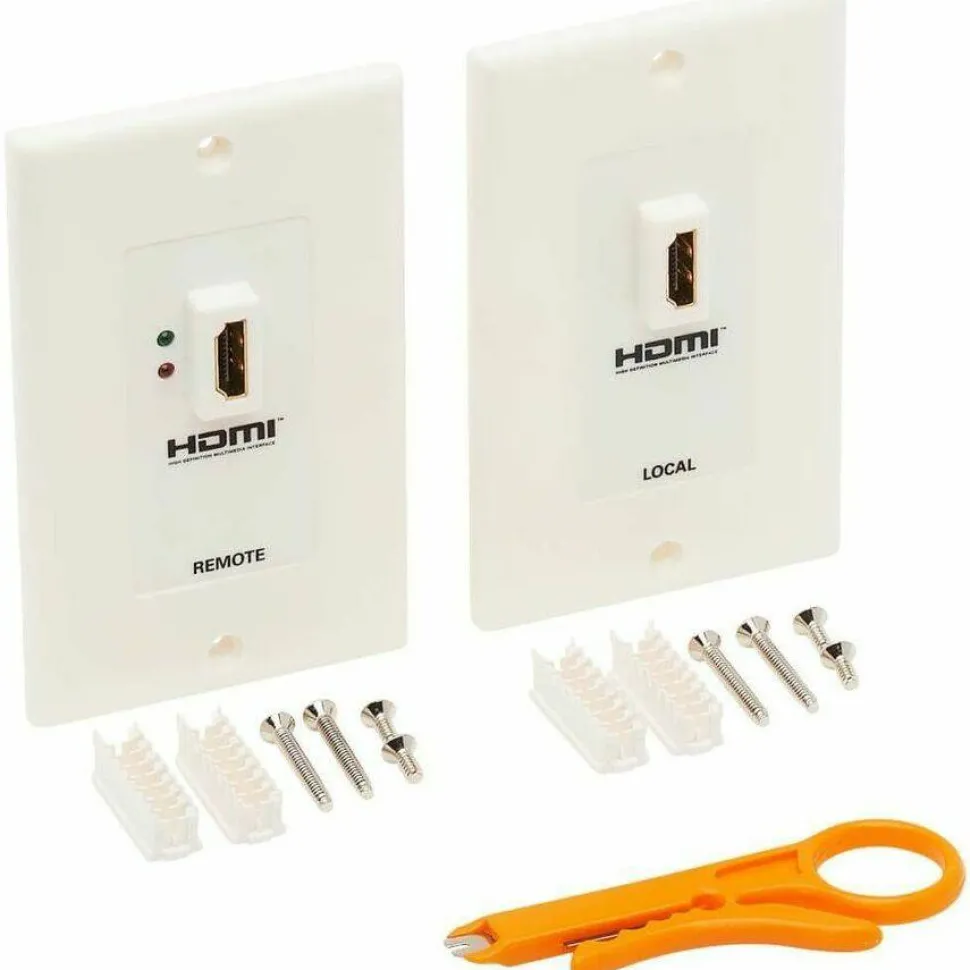

Package Contents

Cat5 Digital Audio/Video Faceplate HDMI Passive Wallplate (video source side) HDMI Active Wallplate with Signal Regenerator (display side) UTP Stripper/Punch Down Tool
Product Model

P167-000
Product Name

Cat5 Digital Audio/Video Faceplate
Product Type

Faceplate
