StarTech 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives, TAA

StarTech 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives, TAA

$93.99

SKU: SKUlp3kcMHfsO Categories: Drives & Media, Media Storage, Technology Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

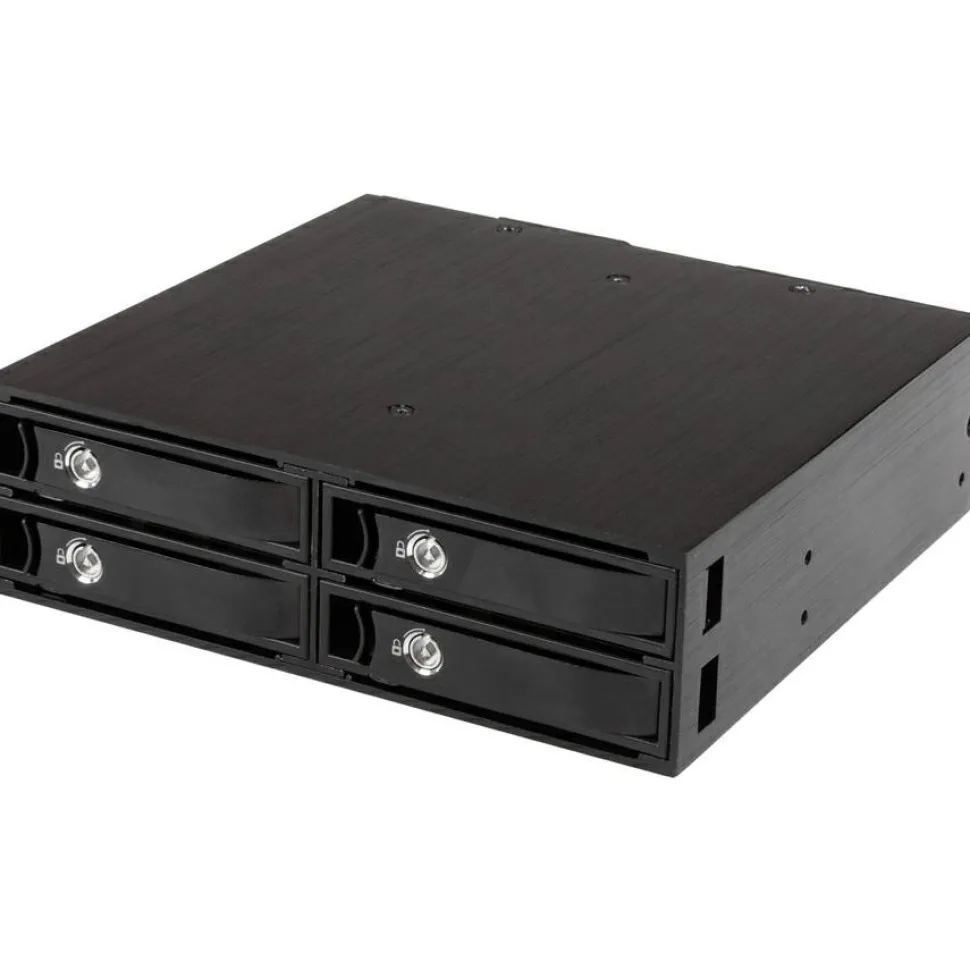

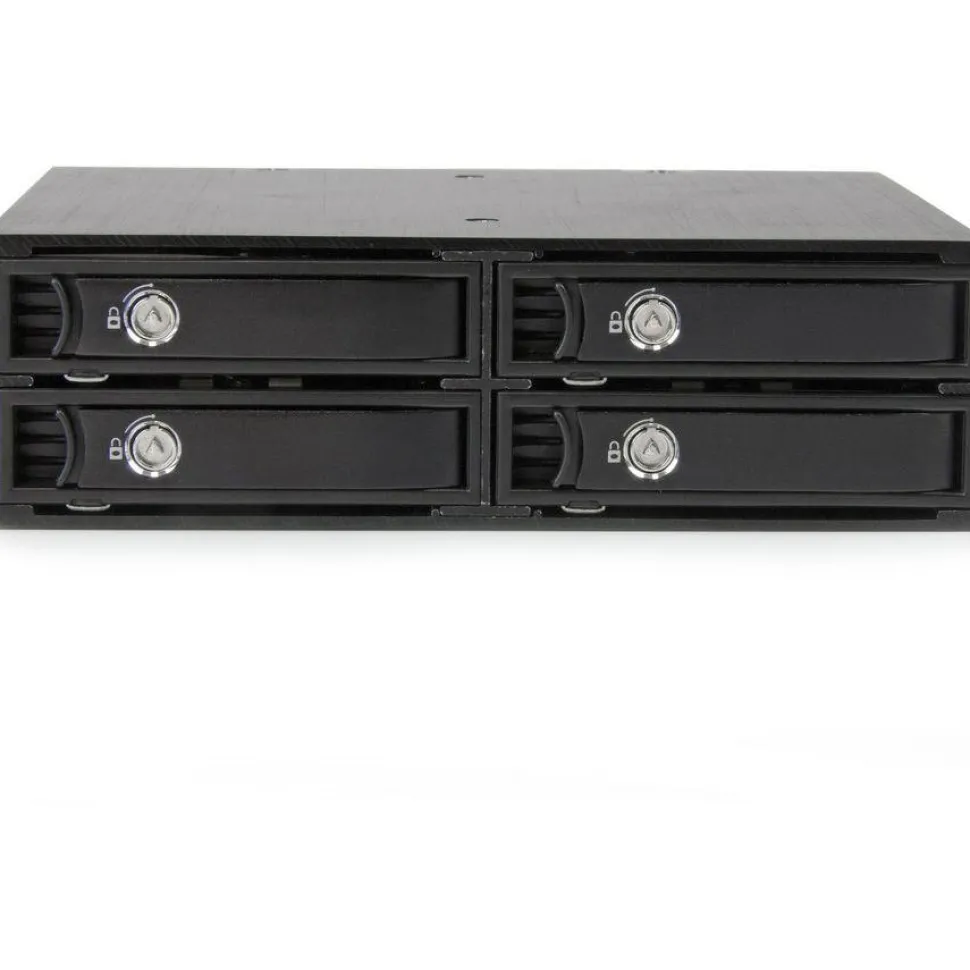

StarTech 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives, TAA

Hot swap with ease by installing 4 SSDs/HDDs into one 5.25in bay – Multi-bay mobile rack backplane / drive caddy / 2.5″ hard drive adapter – Works with 5-15mm 2.5in SAS / SATA drives including Samsung 840 EVO – Supports SAS II & SATA III (6 Gbps)

Now it’s easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It’s ideal for systems integrators and administrators who are looking for flexible management of their data storage.
Designed for durability and trouble-free use

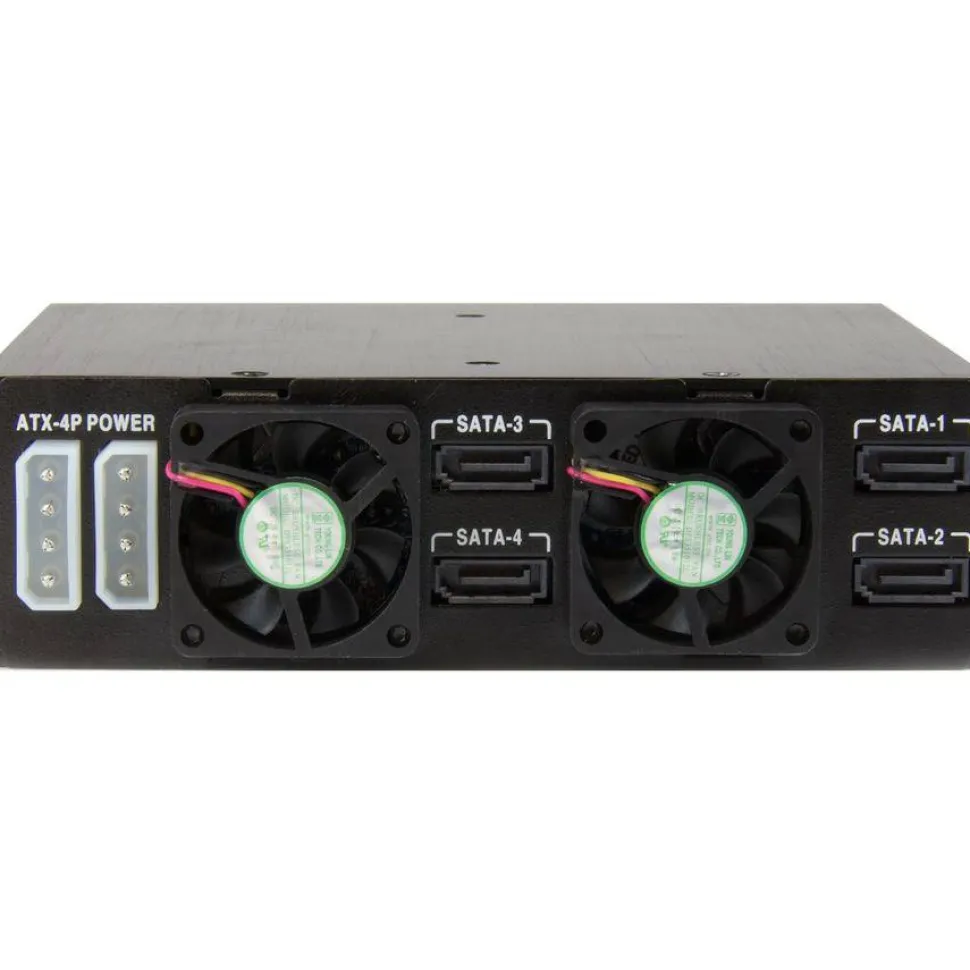

The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.

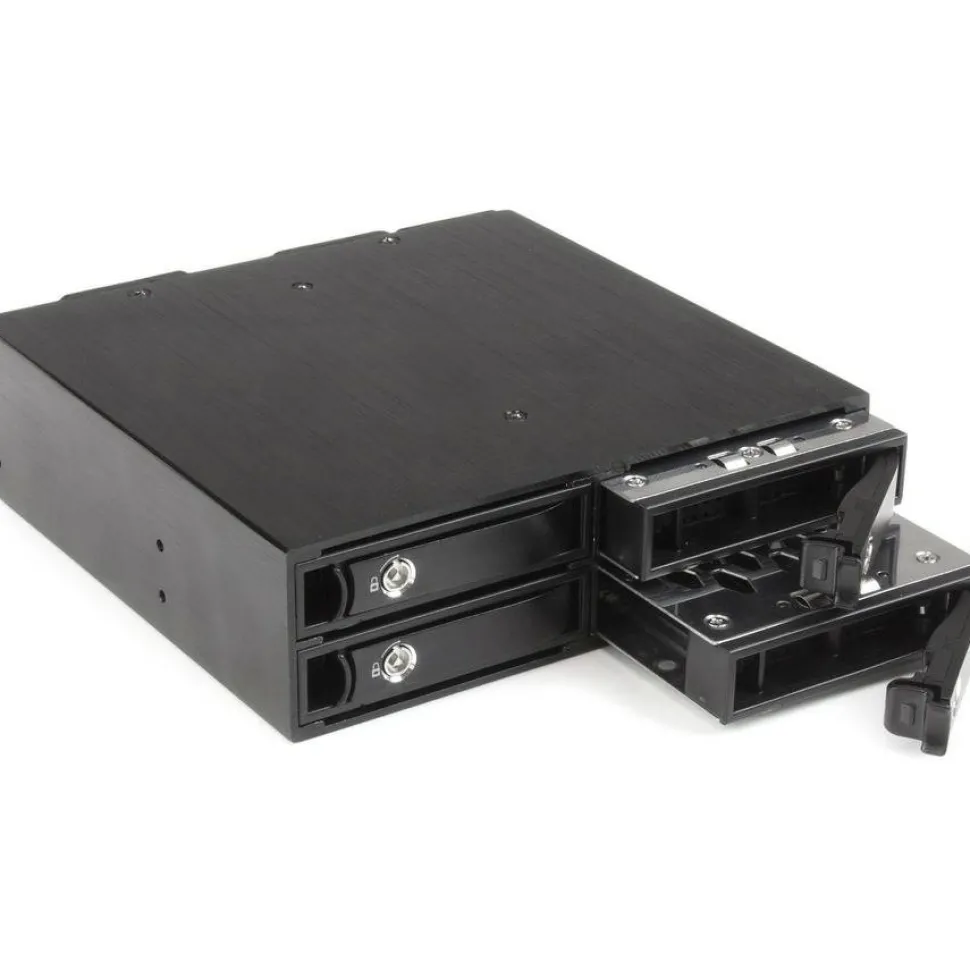

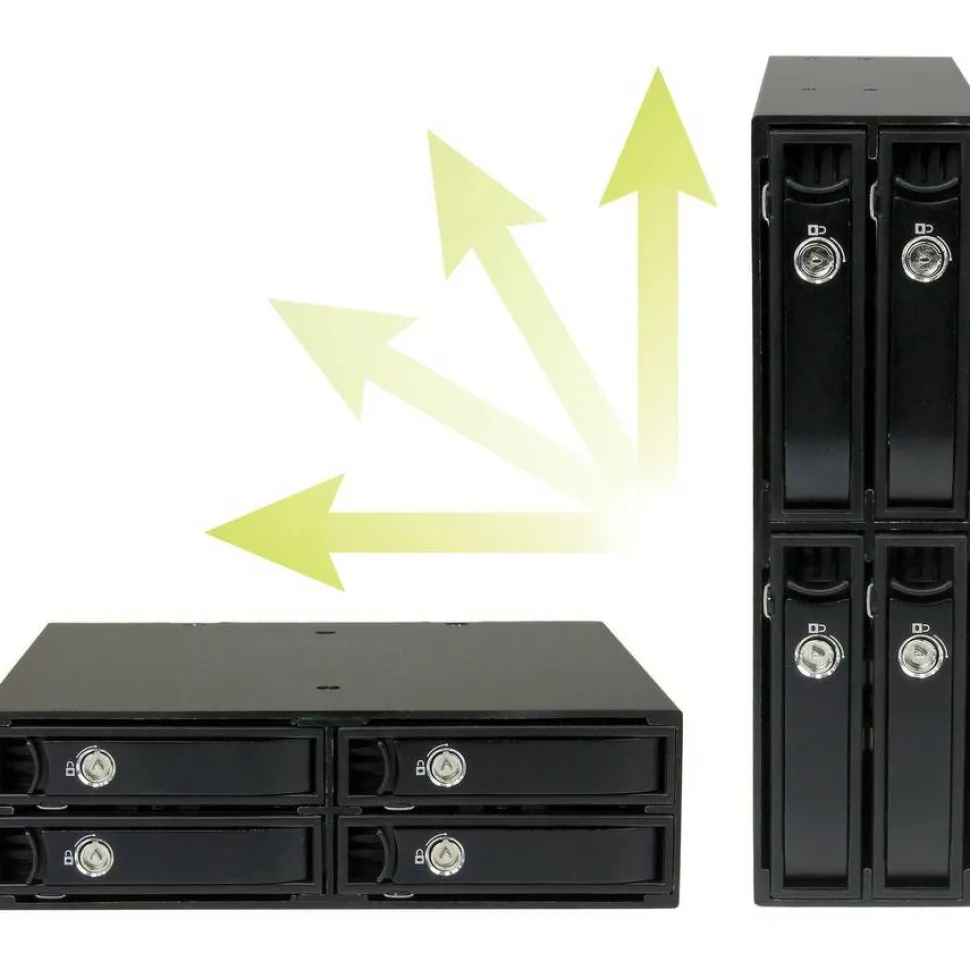

The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers. You can lock the removable steel trays in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.

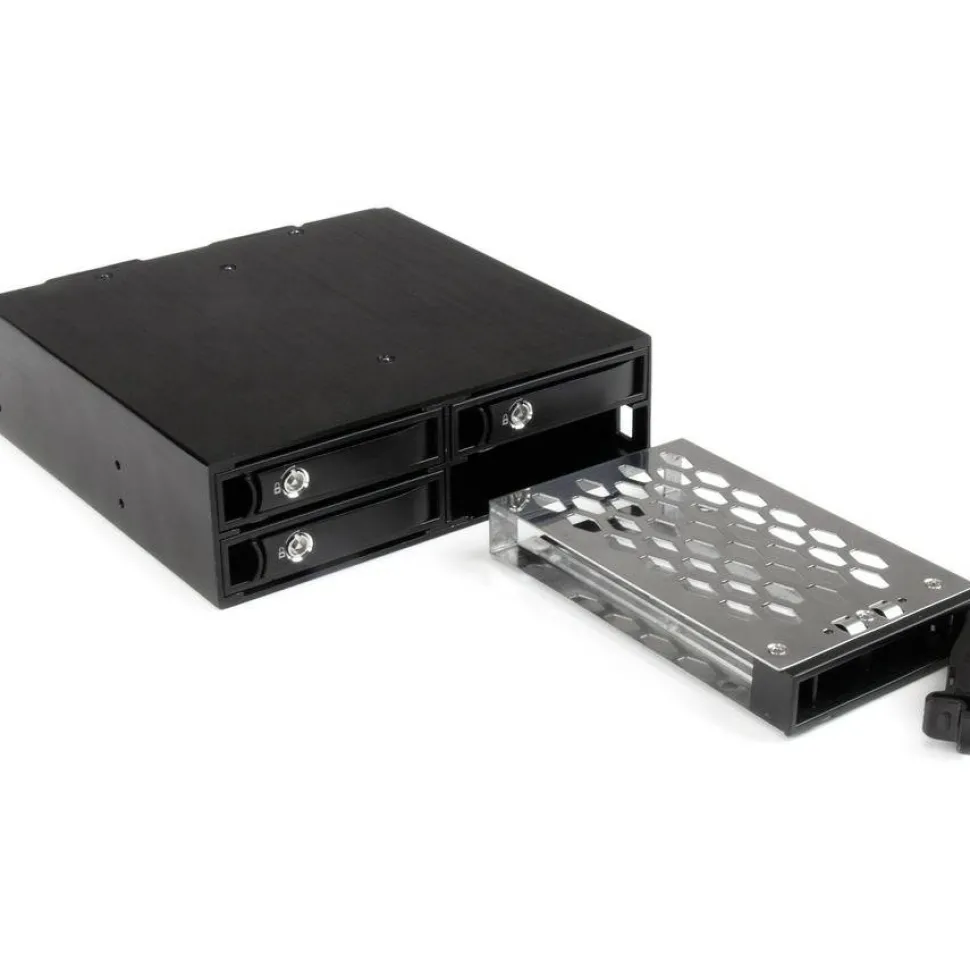

Convenient, interchangeable drive trays
Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.

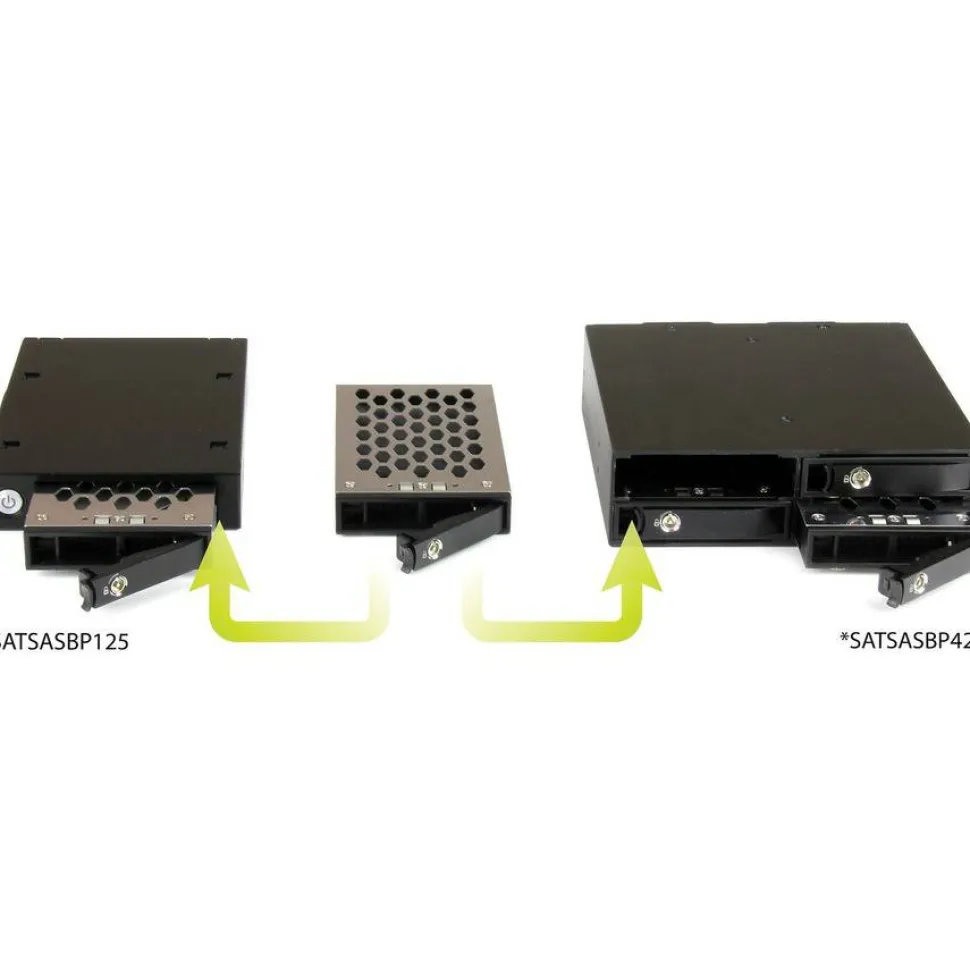

The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.
Compatible with a wide range of drives
Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.
To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo™ controller to produce a high-performance or redundant storage solution.
The SATSASBP425 backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer

Build your storage system by adding four 2.5in SAS or SATA drives into one 5.25in bay
Supports a wide range of SSDs and HDDs from 5-15mm
Easy, error free insertion of tray with vertically or horizontally mounted backplane
Lockable, removable trays provide drive protection
NSS connector provides 50,000+ insertion rating for long-lasting performance
Interchangeable drive trays also work with the 1-bay backplane (SATSASBP125)
High-quality metal housing provides enhanced heat dissipation
Two 40mm fans to optimize ventilation
Flammability rating of UL 94 V-O
Support for SAS II and SATA I, II and III with file transfer speeds of up to 6Gbps

Product Specifications

Brand Name

StarTech.com
Compatible Drive Bay Width

5.25″
Cooling Fan

Yes
Country of Origin

Taiwan
Depth

6″
Drive Interface

SATA/600 Serial Attached SCSI (SAS)
Environmental Compliance

Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly

Yes
Form Factor

Internal
Height

1.7″
Host Interface

Serial ATA/600
Limited Warranty

2 Year
Manufacturer Part Number

SATSASBP425
Number of 1.8″ Bays

No
Number of 2.5″/3.5″ Bays

No
Number of 2.5″ Bays

4
Number of 3.5″ Bays

No
Number of 5.25″ Bays

No
Number of Hard Drives Supported

4
Number of Solid State Drive Supported

4
Number of Total Expansion Bays

4
Package Contents

4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives 4 x 2.5″ Drive Trays 4 x 18″ SATA Data Cables 2 x SATA to Molex Power Adapters 8 x Backplane Mounting Screws 2 x Drive Tray Keys 16 x Drive Mounting Screws 1 x Quick Start Guide
Product Color

Black
Product Material

Aluminum Steel
Product Name

4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives
Product Type

Drive Enclosure
Width

5.7″
Wireless LAN

No
