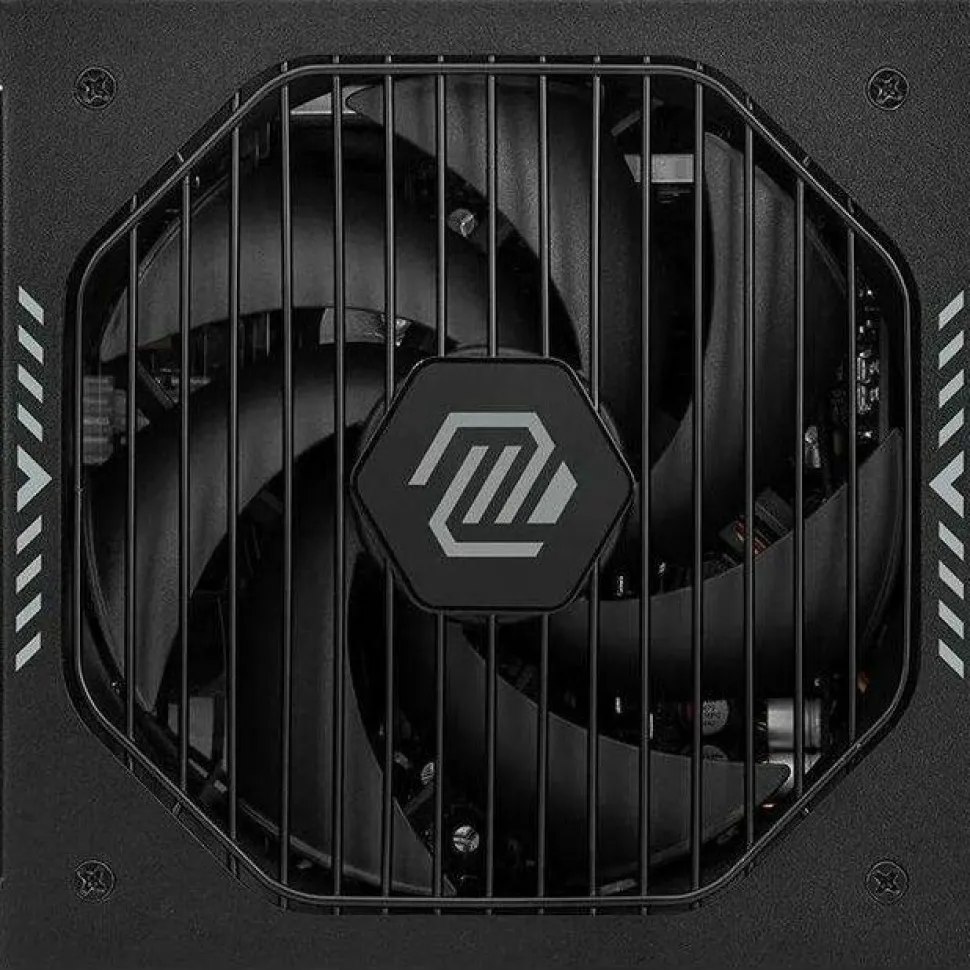

MSI MAG 1000W Power Supply

Product Specifications

• Brand Name
  MSI
• Depth
  5.9″
• Efficiency
  90%
• Energy Efficiency Certification
  80 Plus Gold
• Fan Bearing Type
  Fluid Dynamic Bearing
• Fan Diameter
  135 mm
• Features
  On/Off Switch Low Noise
• Form Factor
  Internal
• Height
  3.4″
• Input Frequency
  47-63 Hz
• Input Voltage
  120 V AC 230 V AC
• Input Voltage Range
  100 V AC – 240 V AC
• Limited Warranty
  7 Year
• Manufacturer Part Number
  MAGA1000GLSPCIE5
• Modular
  Yes
• Modular Type
  Fully Modular
• Number of (4+4 pin) CPU Power Connectors
  2
• Number of (6+2 pin) PCI Express Power Connectors
  4
• Number of +12V Rails
  1
• Number of 4-pin Molex Power Connectors
  4
• Number of Fans
  1
• Number of SATA Power Connectors
  11
• Output Current
  20 A 83.30 A 300 mA 3 A
• Output Power
  1000 W
• Output Voltage
  5 V DC 3.3 V DC 12 V DC -12 V DC 5 V SB
• PCI Express Connector
  Yes
• PCI Express Version
  5.1
• Power Factor Correction (PFC)
  Active
• Product Name
  MAG 1000W Power Supply
• Product Series
  MAG
• Product Type
  Power Supply
• Protection Type
  Over Current Over Temperature Over Power Short Circuit Over Voltage Under Voltage Surge & Inrush Protection No Load
• Width
  5.9″
