Eaton Tripp Lite Series USB-C Dock, Dual Display - 5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.x (5Gbps), USB-A/C Hub, GbE, 85W PD Charging

Eaton Tripp Lite Series USB-C Dock, Dual Display – 5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.x (5Gbps), USB-A/C Hub, GbE, 85W PD Charging

$132.89

SKU: SKUGy2M4cB44u Categories: Computer Accessories, Laptop Accessories, Technology Tag: Tripp Lite Series Brand: Tripp Lite Series

Description
Reviews (0)

Product Description

Eaton Tripp Lite Series USB-C Dock, Dual Display – 5K 60 Hz DP, 4K 60 Hz HDMI, USB 3.x (5Gbps), USB-A/C Hub, GbE, 85W PD Charging

for Notebook/Tablet/Smartphone – 85 W – USB Type C – 6 x USB Ports – 4 x USB 3.0 – Network (RJ-45) – HDMI – DisplayPort – Thunderbolt – Wired

SB-C Docking Station Turns Your Device’s USB or Thunderbolt 3 Port into 14 New Ports

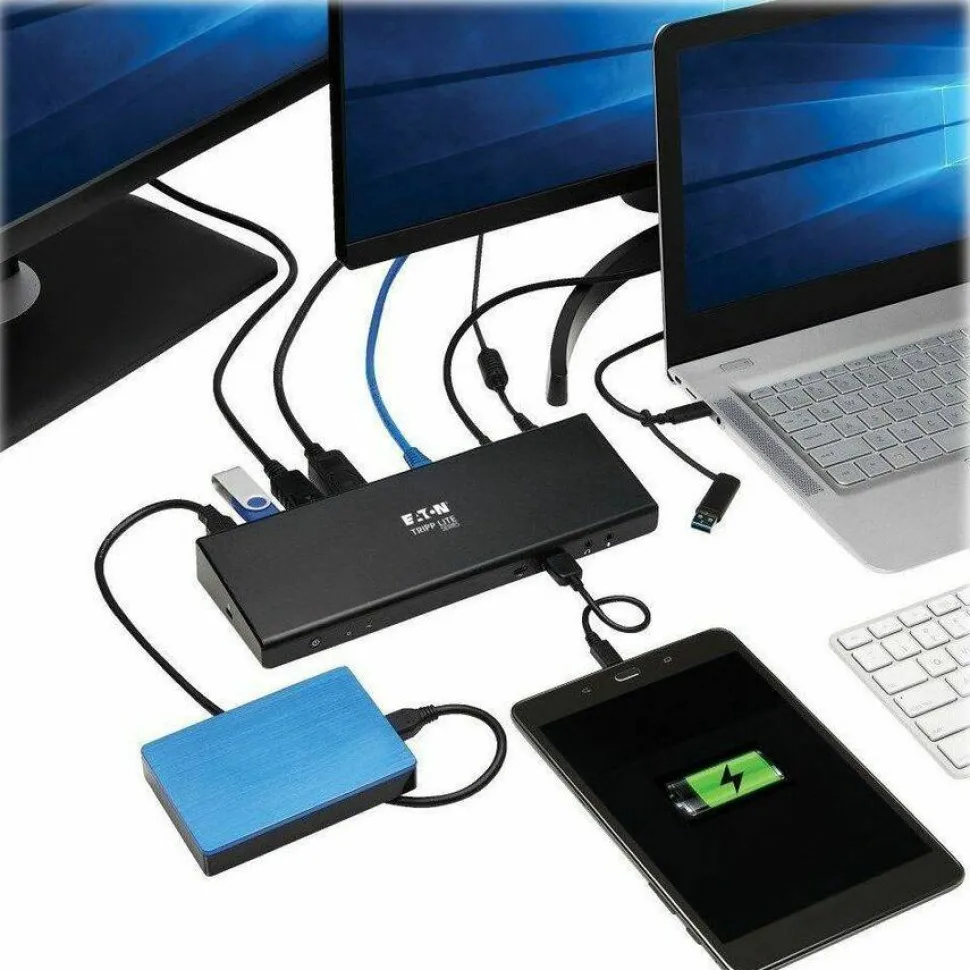

This universal USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, smartphone or PC’s USB-A, USB-C or Thunderbolt 3 port. Connect the docking station using the included USB-C cable, and add 14 ports to your device:
(2) 4K HDMI
(2) 4K DisplayPort
RJ45 Gigabit Ethernet
(4) USB 3.0
USB 3.0 with BC 1.2
USB-C PD Charging
USB-C data
(2) 3.5 mm stereo
Transmits Crystal-Clear True 5K/4K Video and Digital Audio with 4:4:4 Color
The HDMI and DisplayPort (DP) outputs support true 4K resolutions up to 4096 x 2160 at 60 Hz with 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. When both DP outputs are connected to one DP monitor, that monitor will support 5K video up to 5120 x 2880 at 60 Hz.
DisplayLink Technology Allows Connection of Multiple Displays
By downloading and installing the proper DisplayLink drivers to your host device, you may connect two external displays simultaneously. This allows you to display the image from the host computer on both monitors, extend your host desktop across both with different windows open on each, or combine all into one large display as a video wall. Connect multiple monitors (dual 4K @ 60 Hz DP; dual 4K @ 60 Hz HDMI; or 4K @ 60 Hz DP and 4K @ 60 Hz HDMI) in Extended and Mirror modes. Note: Mac OS laptops or computers will only extend to one monitor. The others will be mirrored.
USB Hub Ports Connect Keyboards, Thumb Drives and Other Peripherals
One USB-C and five USB-A ports accept USB peripherals, such as flash drives, mice, keyboards and printers. All support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One USB-A port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device.
PD Charging Port Charges the Connected Notebook, Tablet or Other Device
Connect your host device to the USB-C Power Delivery port, which supports PD 2.0 charging of connected PD Charging-compliant devices, such as laptops, Kindles, iPads and Android smartphones, up to 20V 4.25A (85W). The included power supply, when plugged into an AC outlet, provides the charging power.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Connects Speakers, Microphone and Other Audio Equipment
Two 3.5 mm mini stereo jacks are convenient for connecting speakers, headphones and/or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.
Anti-Theft Lock Protects the Docking Station When You Aren’t Around
Connect a user-supplied computer/laptop security cable lock (not included) to this K-lock port to protect your source device against theft.
Detachable USB-C Cable Connects in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. A USB-C to USB-A adapter is included for connecting the docking station to your host device’s USB-A port.

Supports 5K @ 60 Hz on one DisplayPort monitor (when connected to both DP ports)
Extends/mirrors 4K @ 60 Hz across 2 DP, 2 HDMI or HDMI/DP monitors simultaneously
Supports 20V 4.25A (85W) power output for fast-charging large-capacity mobile devices
Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
USB-C and USB-A hub ports allow connection of flash drives and other peripherals
Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
Smartphone device supported for better reliance and optimal performance
Enjoy HD quality videos on your HDTV with the HDMI port facility
6 USB ports allows powerful and efficient transfer of data with maximum productivity

Product Specifications

Brand Name

Tripp Lite series
Connectivity Technology

Wired
Country of Origin

China
Depth

1.36″
Device Supported

Smartphone Tablet Notebook
DisplayPort

Yes
Environmental Compliance

Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly

Yes
HDMI

Yes
Height

9.84″
Host Interface

USB Type C
Limited Warranty

3 Year
Manufacturer Part Number

U442-DOCK21-B
Maximum Power Supply Wattage

85 W
Network (RJ-45)

Yes
Number of DisplayPort Outputs

2
Number of HDMI Outputs

2
Number of USB 3.0 Ports

4
Package Contents

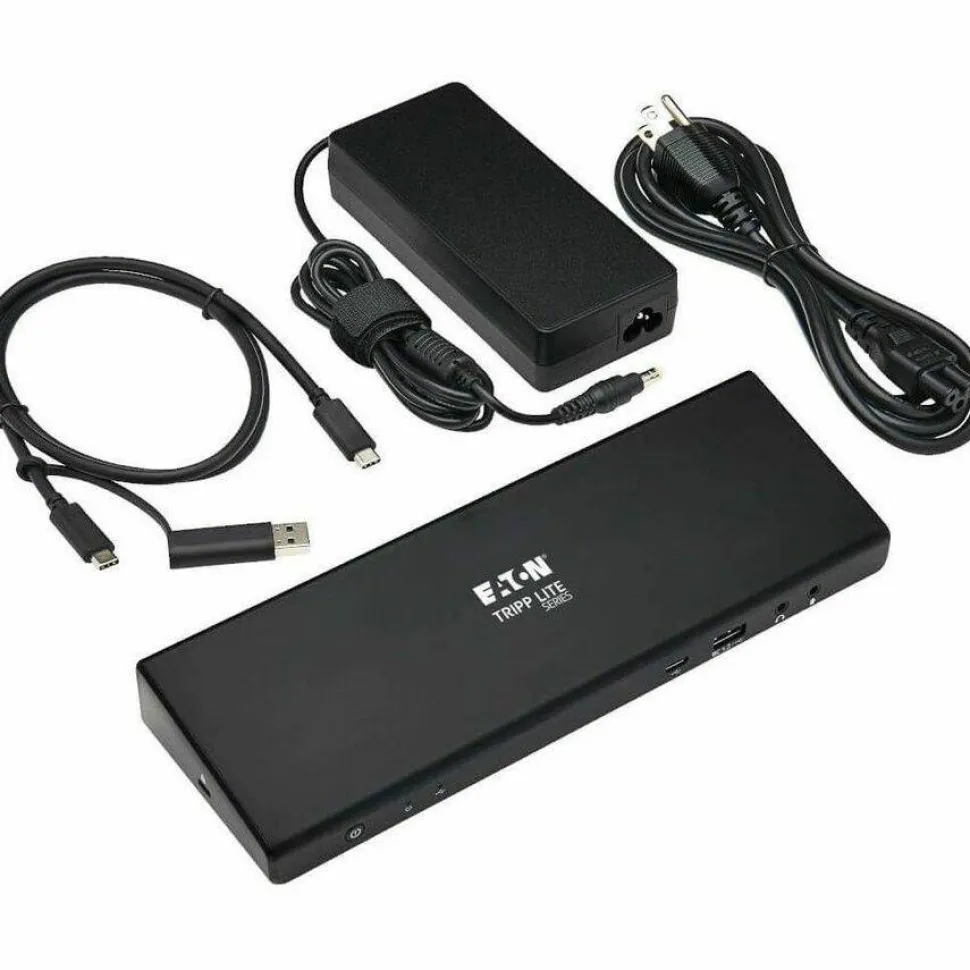

U442-DOCK21-B Docking Station USB-C Cable, 1 m USB-C to USB-A Adapter External Power Supply with 5 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.8A; Output: 20V 6.75A) Owner’s Manual
Product Model

U442-DOCK21-B
Product Name

U442-DOCK21-B Docking Station
Product Type

Docking Station
Thunderbolt

Yes
Total Number of USB Ports

6
Width

3.24″
