CyberPower CP900AVR AVR UPS Systems

Product Specifications

• AVR
  Yes
• Additional Information

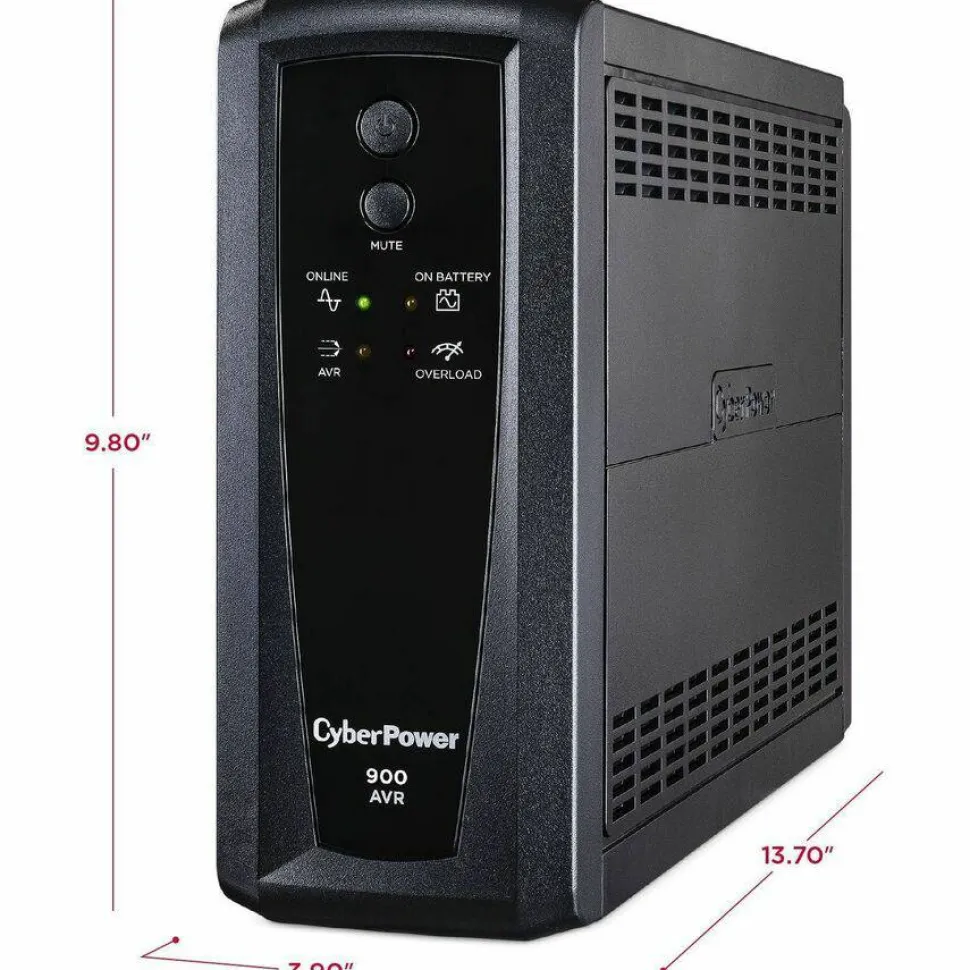

  Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1270X2C (for serial numbers that begin with “CT5” or “CXQ”) Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 5 min Runtime at Half Load : 16 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions – (WxHxD) (cm) : 9.91 x 24.89 x 34.8 (cm) Physical Dimensions – (WxHxD) (in) : 3.9 x 9.8 x 13.7 (in) Physical Dimensions – (WxHxD) (mm) : 99 x 249 x 348 (mm) Weight (kg) : 9.9 Weight (lb) : 21.83 Shipping Dimensions – (WxHxD) (cm) : 19.05 x 34.29 x 43.18 (cm) Shipping – Dimensions (WxHxD, in) : 7.5 x 13.5 x 17.0 (in) Shipping – Dimensions (WxHxD, mm) : 190.5 x 342.9 x 431.8 (mm) Shipping – Weight (kg) : 10.8 Shipping – Weight (lb) : 23.80 Adjustable Voltage Range : 135 – 144 VAC Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz – 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 88 VAC – 144 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle – 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets – Battery & Surge Protected : 5 Outlets – Surge-Only Protected : 5 Outlets – Total : 10 Outlets – Widely Spaced : 2 Outlet Type COMPUTED : 10 – NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 8 ms USB Charge Port : No VA : 900 VA Watts : 560 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial Software (Free Download) : PowerPanel Personal Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Online Thermal Dissipation : 26.7 BTU/hr Operating Elevation : 0 – 10000 ft (0 – 3048 m) Operating Relative Humidity : 0 – 90 % (non-condensing) Operating Temperature : 32 – 104 °F (0 – 40 °C) Storage Elevation : 0 – 50000 ft (0 – 15239 m) Storage Relative Humidity : 0 – 95% (non-condensing) Storage Temperature : 5 – 113 °F (-15 – 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1B Product Warranty : 3 Year Limited Warranty Energy Saving : GreenPower UPS™ Bypass Technology
• Additional Warranty Information
  CyberPower stands behind its products by offering an industry leading 3-year warranty CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns — Free of charge Connected Equipment Guarantee of $300,000
• Alarm
  Low Battery On Battery Overload Fault
• Battery Chemistry
  Lead Acid
• Battery Life
  6 Year
• Brand Name
  CyberPower
• Bypass Switch
  Not Provided
• Certifications & Standards
  UL1778 cUL 107 5th FCC DOC Class B
• Circuit Breaker
  Yes
• Cord Length
  6 ft
• Country of Origin
  Philippines
• DC System Voltage
  12 V DC
• Dataline Protection
  RJ-45 Coax
• Depth
  13.70″
• Directly Connected Equipment Guarantee
  $300000
• EMI/RFI Noise Filter
  Yes
• Emergency Power OFF
  No
• Environmental Compliance
  Restriction of Hazardous Substances (RoHS)
• Environmentally Friendly
  Yes
• Form Factor
  Mini-tower
• Height
  9.80″
• Hot Swappable
  Yes
• Input Voltage
  120 V AC
• Input Voltage Range
  88 V AC – 144 V AC
• Limited Warranty
  3 Year
• Load Capacity (VA)
  900 VA
• Load Capacity (Watt)
  560 W
• Manufacturer Part Number
  CP900AVR
• Maximum Operating Elevation
  10000 ft
• Maximum Operating Temperature
  104°F (40°C)
• Maximum Storage Elevation
  50000 ft
• Number of Batteries
  2
• Number of Battery & Surge Outlets
  5
• Number of Surge-only Outlets
  5
• Output Voltage
  120 V AC
• Overload Protection
  Yes
• Package Contents
  AVR CP900AVR 900VA UPS User Manual Power Management Software Warranty Card Coaxial Cable Phone Cable USB Cable
• Plug/Connector Type
  NEMA 5-15P
• Product Color
  Black
• Product Model
  CP900AVR
• Product Name
  CP900AVR AVR UPS Systems
• Product Series
  AVR UPS
• Product Type
  Line-interactive UPS

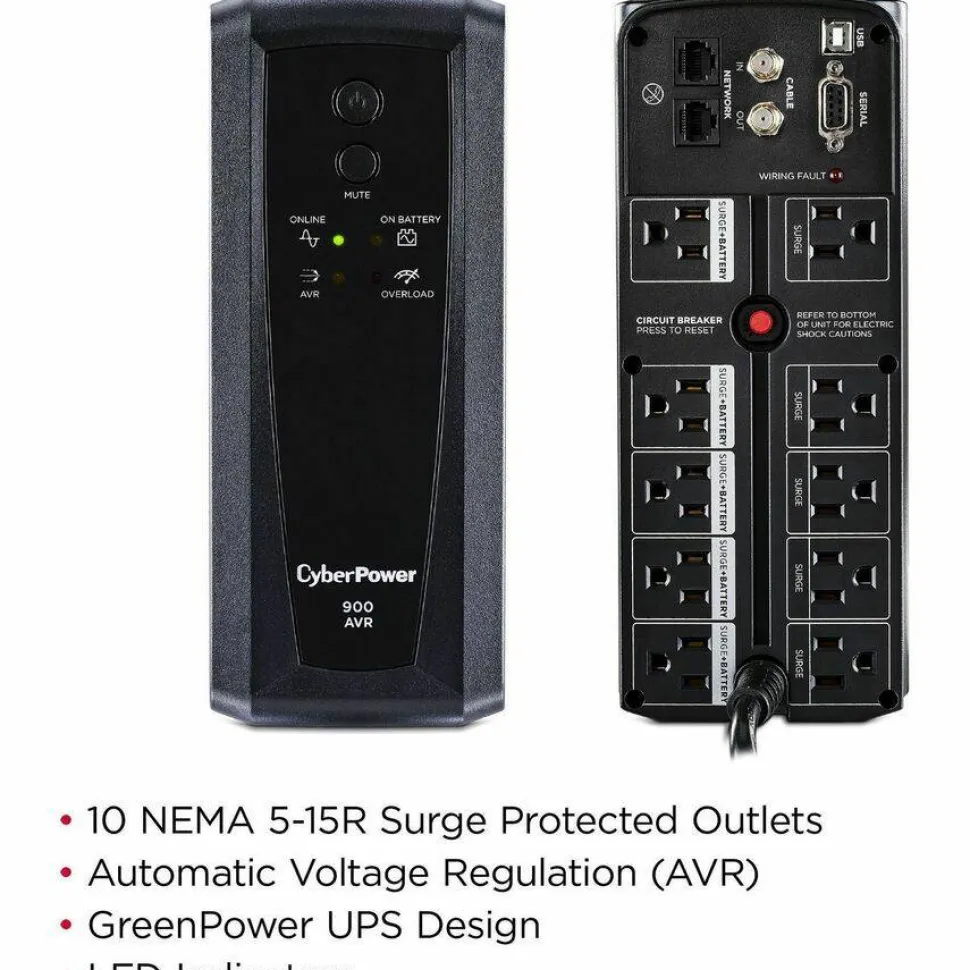

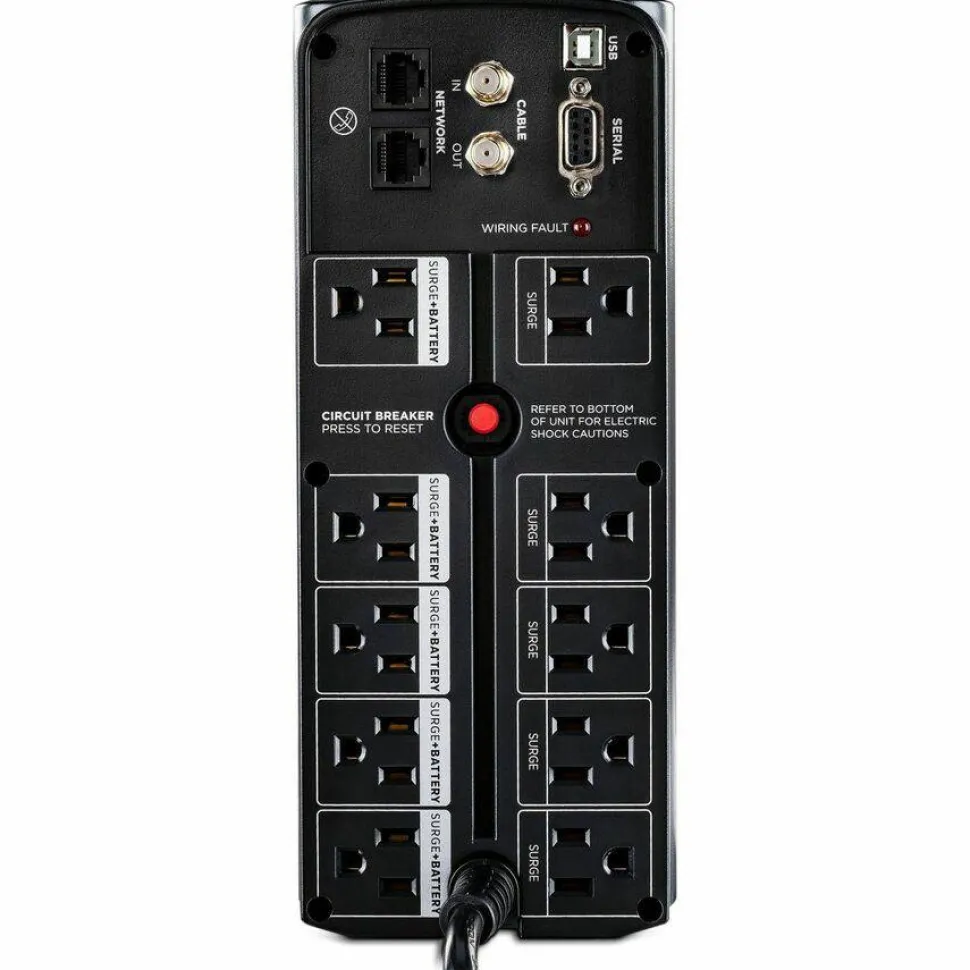

• Receptacle Detail
  10 x NEMA 5-15R
• Receptacle Type
  NEMA 5-15R
• Replaceable Battery
  Yes
• Serial Port
  Yes
• Software Included
  PowerPanel PE

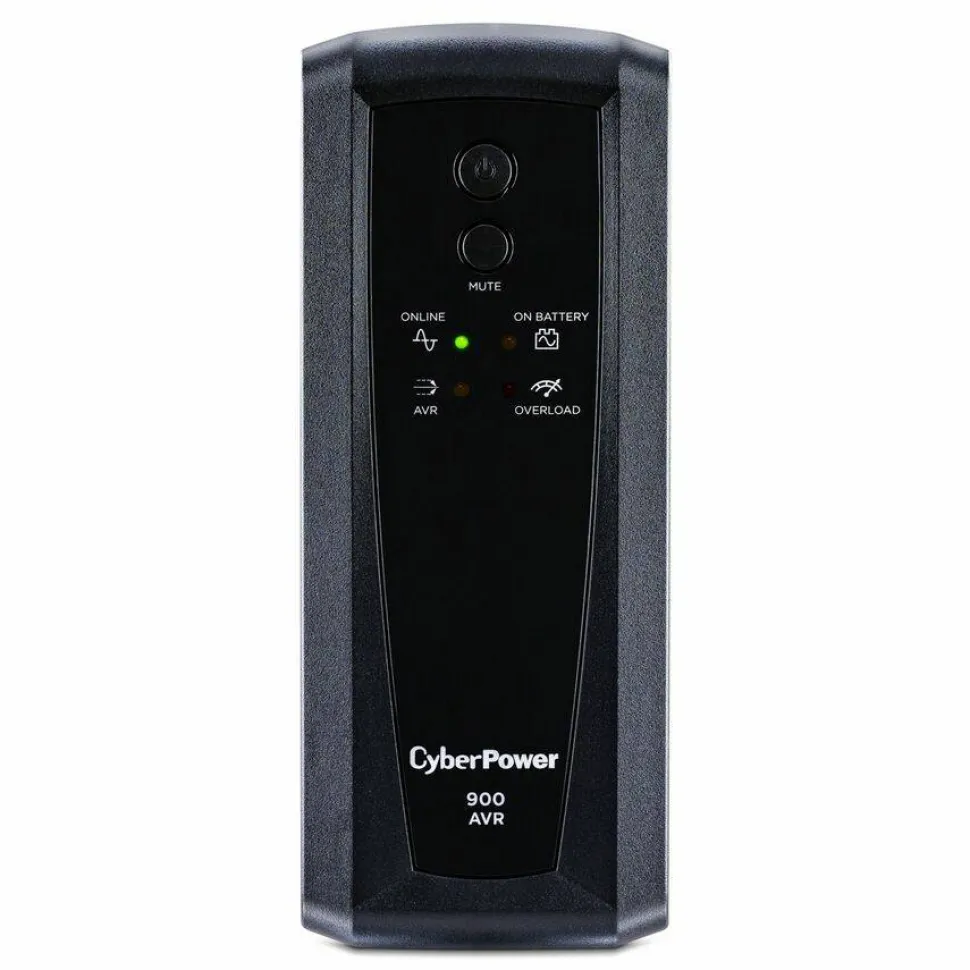

• Status Indicators
  Power On Wiring Fault On Battery AVR Overload
• Storage Relative Humidity
  0% – 95%
• Storage Temperature
  5°F (-15°C) – 113°F (45°C)
• Surge Energy Rating
  1500 J
• Transfer Time
  8 ms
• Typical Battery Recharge Time
  8 Hour
• USB
  Yes
• Waveform Type
  Simulated Sine Wave
• Width
  3.90″
