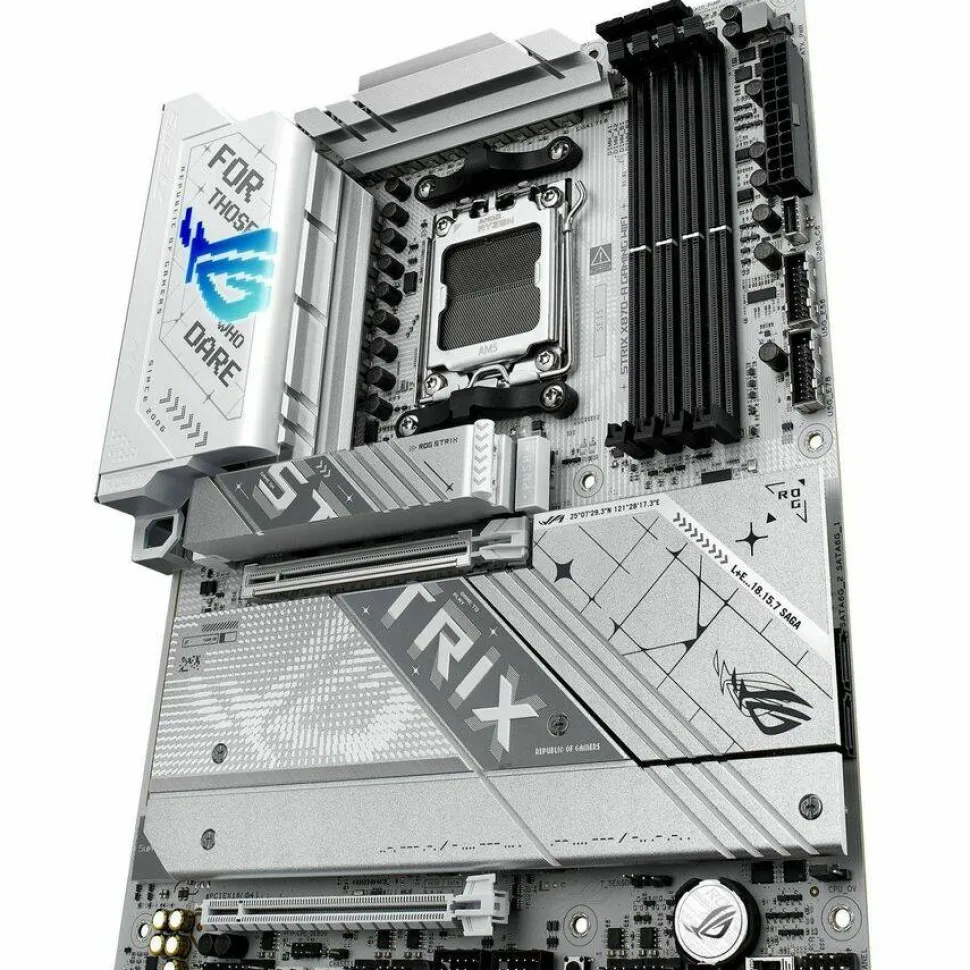

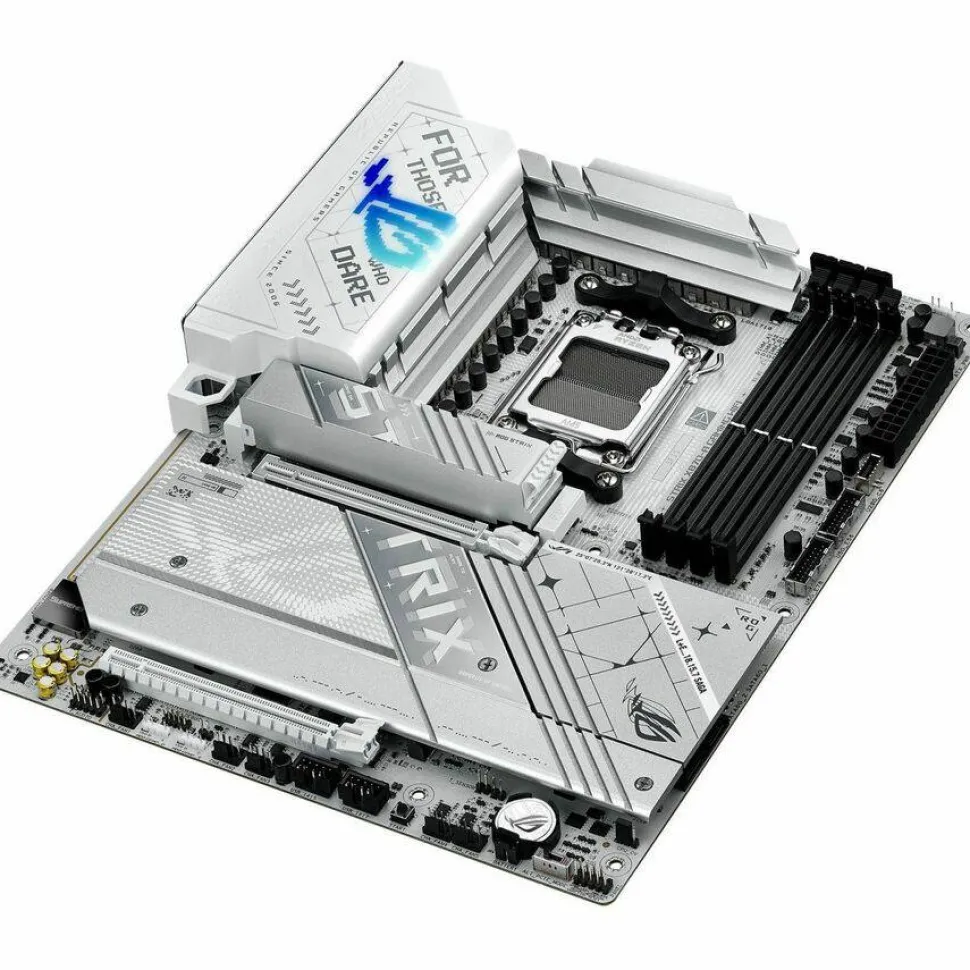

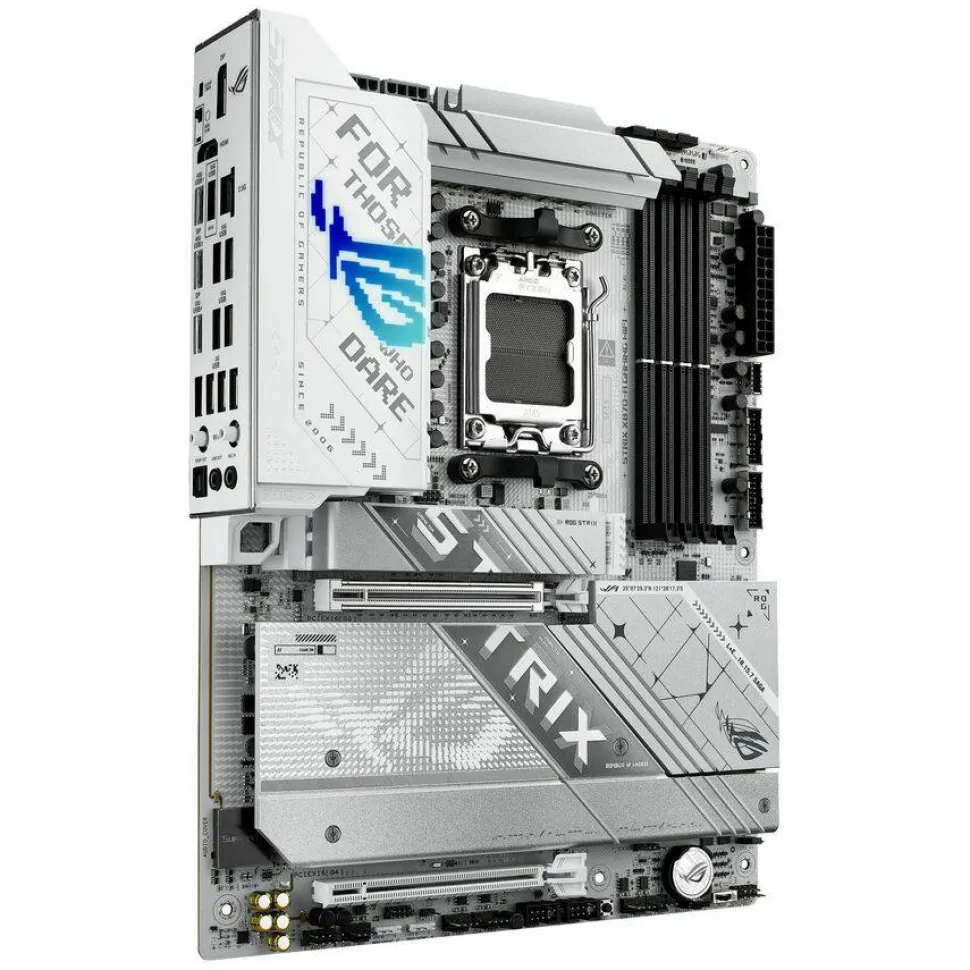

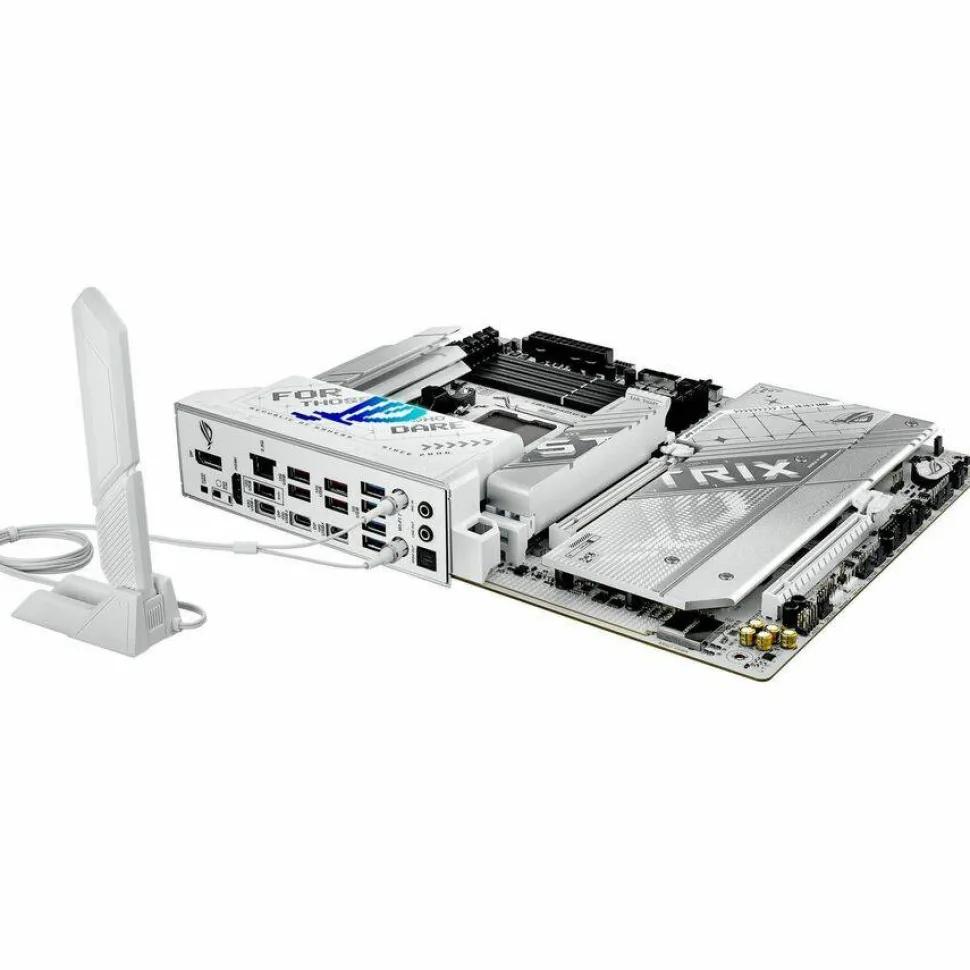

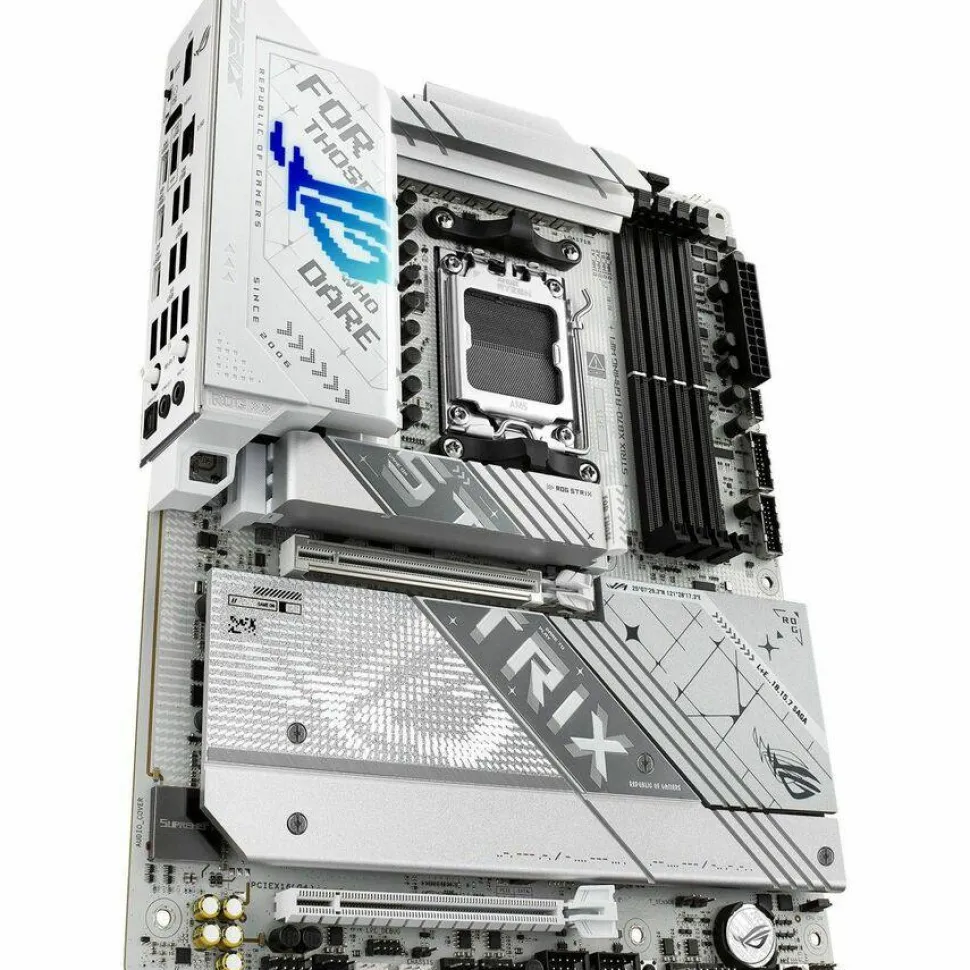

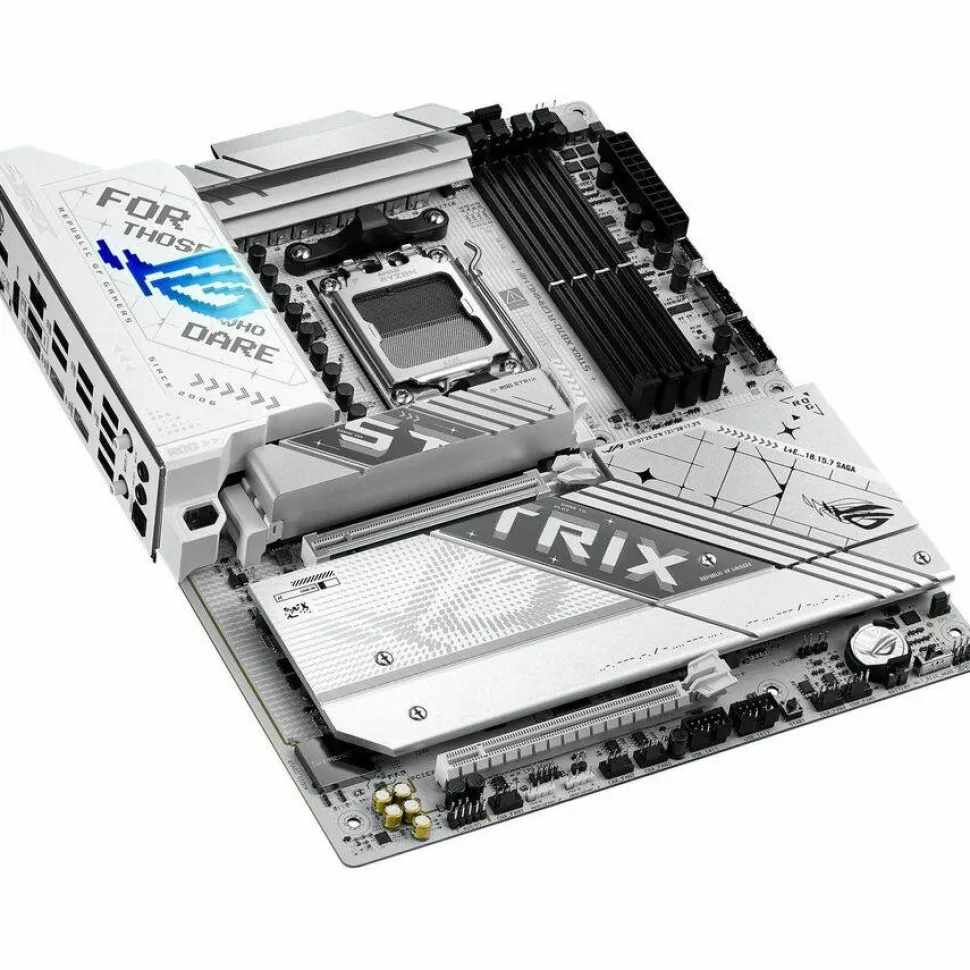

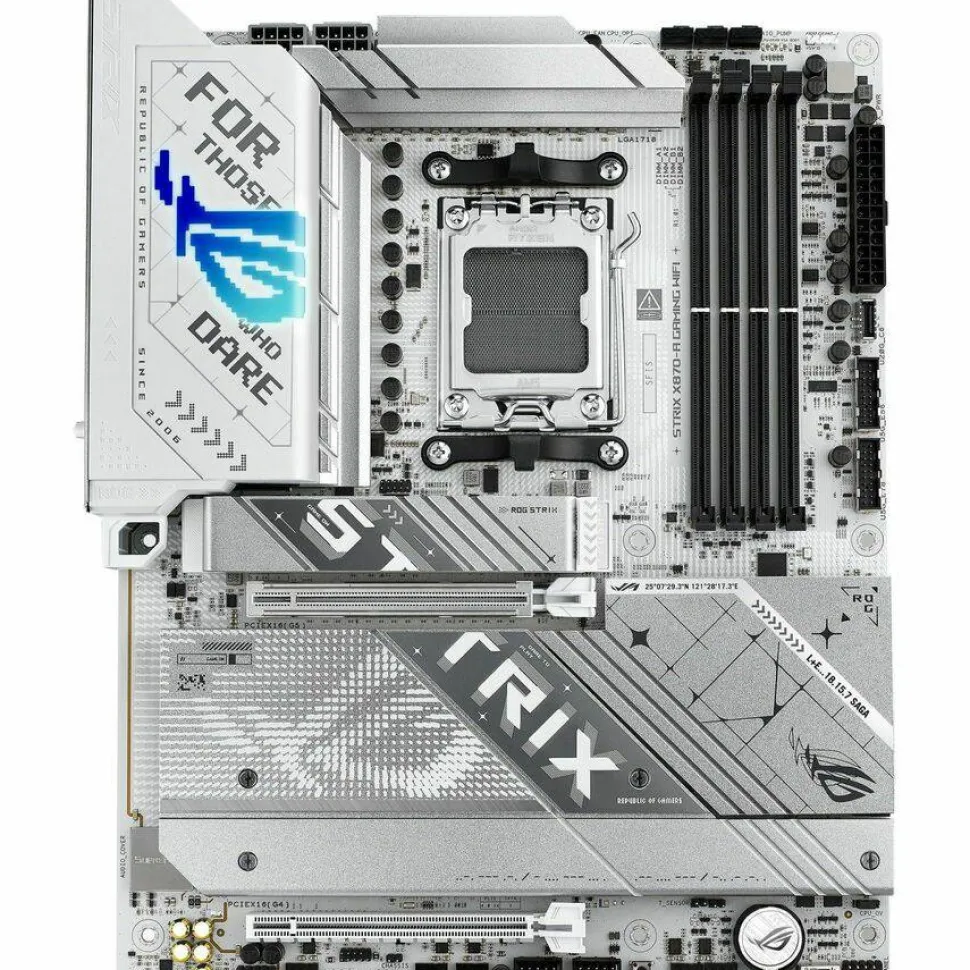

Asus ROG Strix X870-A GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX

Asus ROG Strix X870-A GAMING WIFI Gaming Desktop Motherboard – AMD X870 Chipset – Socket AM5 – ATX

Original price was: $147.00.Current price is: $97.89.

SKU: SKUkJYczQKhSV Categories: Computer Memory & Upgrades, Hardware Components, Technology Tag: Asus ROG Brand: Asus ROG

Description
Reviews (0)

Product Description

Asus ROG Strix X870-A GAMING WIFI Gaming Desktop Motherboard – AMD X870 Chipset – Socket AM5 – ATX

Ryzen 7, Ryzen 9 Processor Supported – 192 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 4 x Memory Slots – Gigabit Ethernet – 2.5Gigabit Ethernet – IEEE 802.11be – HDMI – DisplayPort – 2 x SATA Interfaces

AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4ports, USB 10Gbps Type-Cwith PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket:Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Intelligent Control:ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
ROG Strix Overclocking technologies:Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
Robust Power Solution:16+2+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design:Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
Latest M.2 Support: Two onboard PCIe5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions

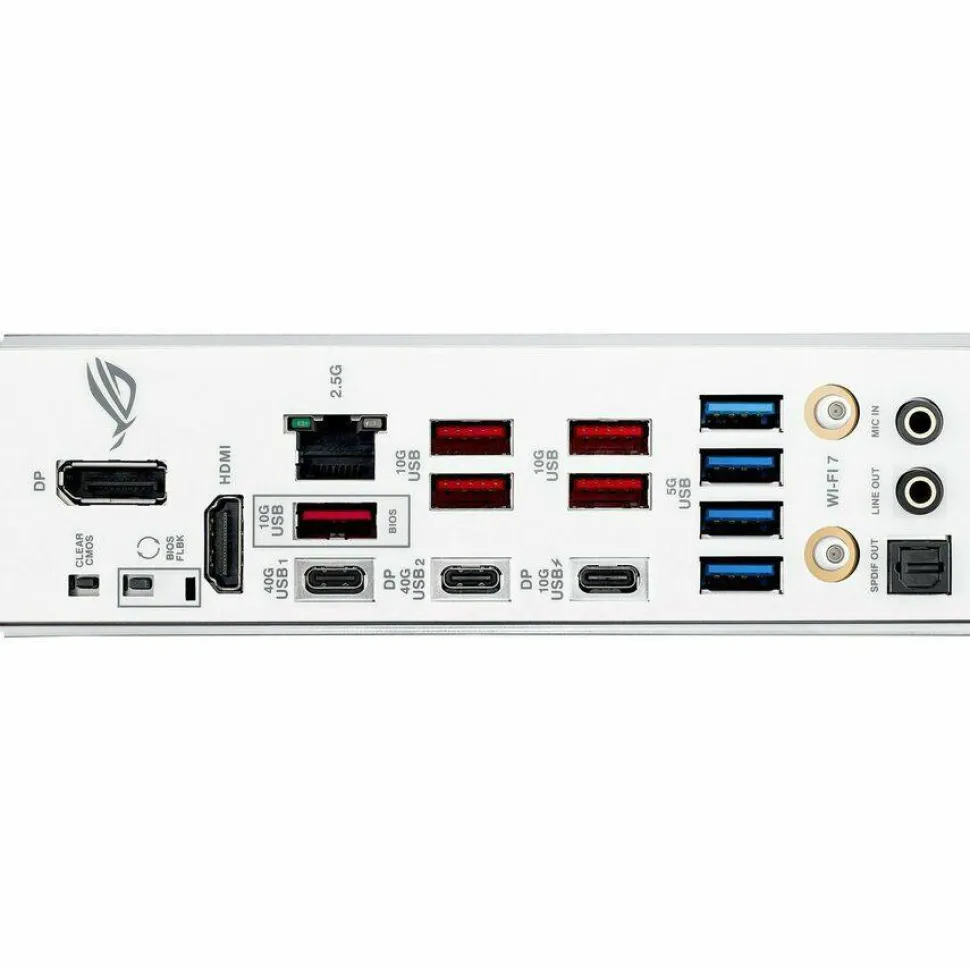

Abundant Connectivity:Dual USB4Type-C ports, USB 20Gbps Type-Cfront-panel connector, one USB 10Gbps Type-Crear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port
High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Immersive Audio:ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos
Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
Renowned Software:ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
ASUS AI INTELLIGENCE | AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
DDR5 SDRAM slot for convenient installation of memory
Supported 0 RAID levels provide data reliability and fault tolerance
Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11be wireless standard support
HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard

Product Specifications

AI-powered

Yes
Audio Channels

7.1
Bluetooth

Yes
Bluetooth Standard

Bluetooth 5.4
Brand Name

Asus ROG
Chipset Manufacturer

AMD
Chipset Model

X870
Controller Type

Serial ATA/600
Depth

9.6″
DisplayPort

Yes
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Error Checking

ECC
Form Factor

ATX
Gigabit Ethernet

Yes
HDMI

Yes
HDMI Version

2.1
Limited Warranty

3 Year
Manufacturer Part Number

ROGSTRIXX870AGAMINGWIFI
Maximum Memory Supported

192 GB
Memory Form Factor

DIMM UDIMM
Memory Speed Supported

8000 MHz
Memory Technology

DDR5 SDRAM
Number of M.2 Interfaces

4
Number of Memory Slots

4
Number of Network (RJ-45) Ports

1
Number of Onboard USB 2.0 Ports

4
Number of PCI Express x16 Slots

3
Number of SATA Interfaces

2
Onboard Video

CPU Dependent Video
PCI Express Standard

PCI Express 4.0 PCI Express 5.0
Package Contents

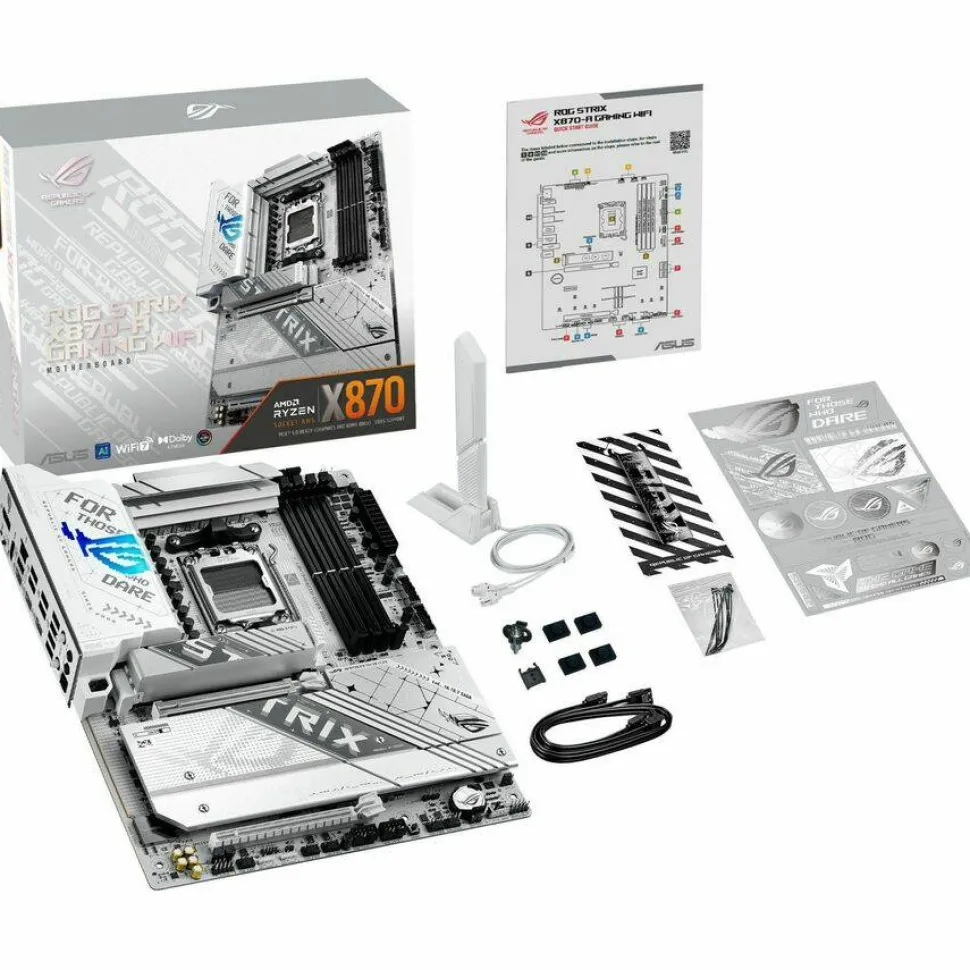

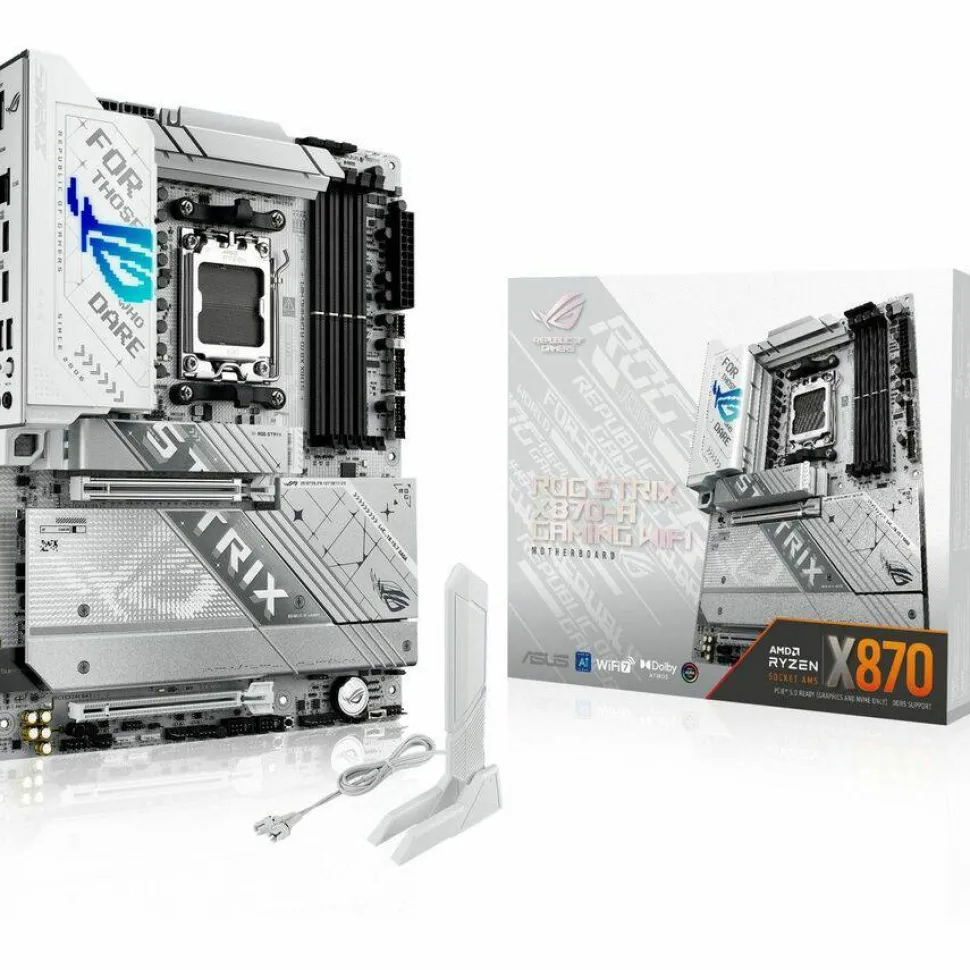

Strix X870-A GAMING WIFI Gaming Desktop Motherboard 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 22110 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber packages 1 x Quick start guide
Processor Socket

Socket AM5
Processor Supported

Ryzen 7 Ryzen 9
Product Line

Strix
Product Model

X870-A GAMING WIFI
Product Name

Strix X870-A GAMING WIFI Gaming Desktop Motherboard
Product Type

Gaming Desktop Motherboard
RAID Levels

0 1 5 10
RAID Supported

Yes
S/PDIF

Yes
Total Number of Expansion Slots

3
Total Number of Onboard USB Ports

9
Total Number of PCI Express Slots

3
Total Number of USB Ports

12
Total Processor Supported

1
VGA

Yes
Width

12″
Wireless LAN

Yes
Wireless LAN Standard

IEEE 802.11be
