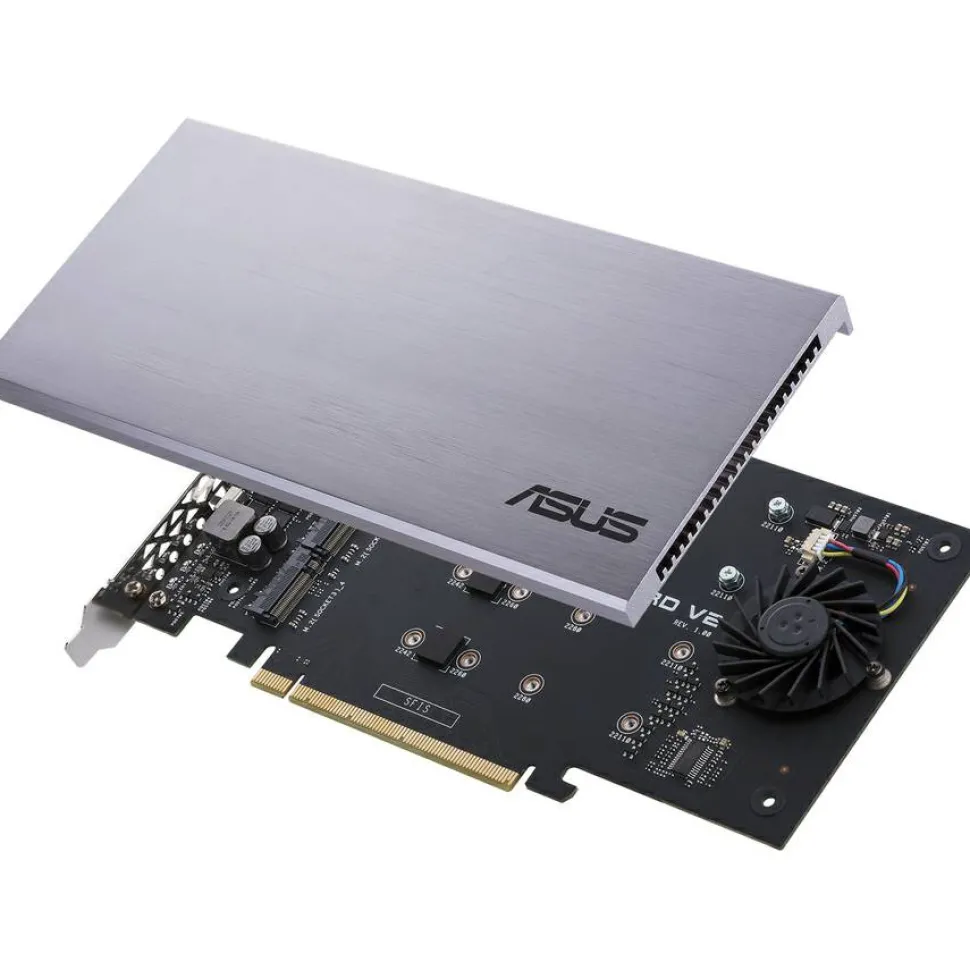

Asus M.2 to PCI Express Adapter

$42.89

SKU: SKUih64phxLe1 Categories: Networking & Cables, Technology, Wired Networking Tag: ASUS Brand: ASUS

Description
Reviews (0)

Product Description

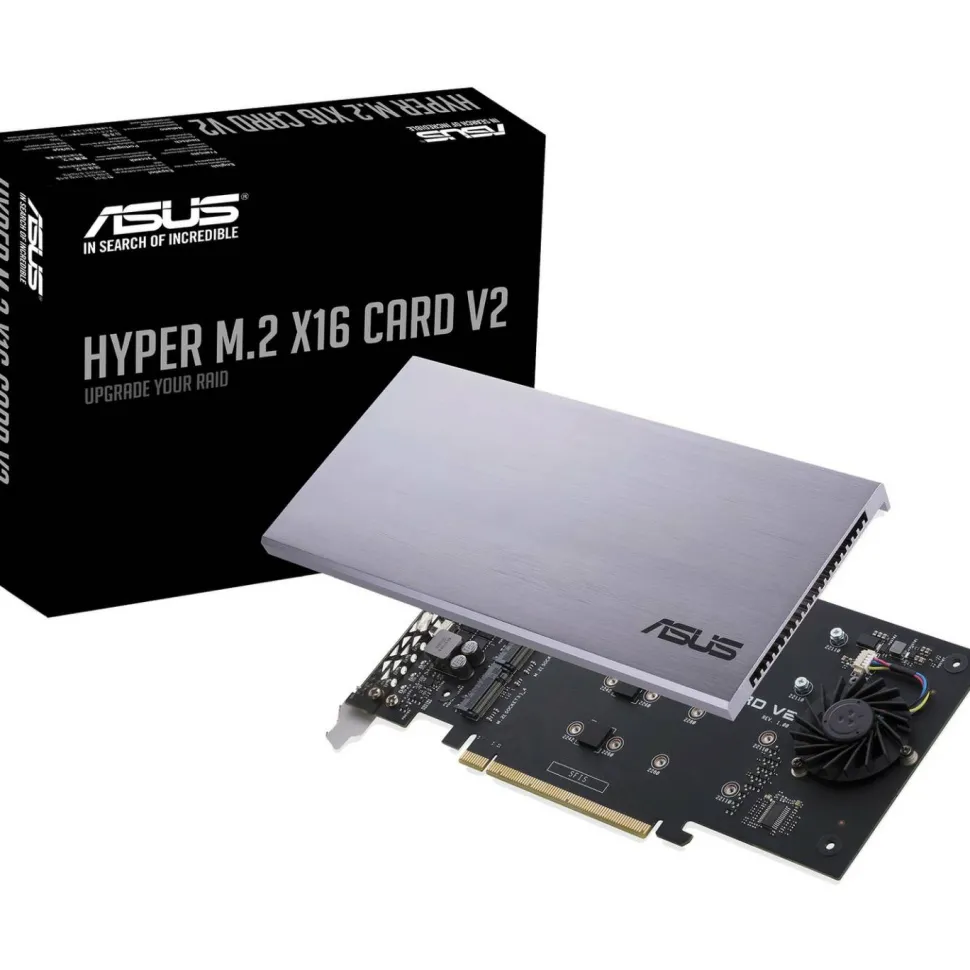

Asus M.2 to PCI Express Adapter

HYPER M.2 X16 Card supports up to four PCIe 3.0 x4 M.2 drives, it can be setup with Intel VROC (Virtual RAID on CPU), a new I/O storage technology within the Intel RSTe 5.x driver family. This feature allows users to use CPU PCIe lanes to create BOOTable RAID arrays. A CPU PCIe 3.0 x 16 slot can support data transfer rates up to 128 Gbps – that’s four times faster than DMI the 32 Gbps limit of the DMI bus, and 22x faster than SATA 3.0.
Supports up to four PCIE 3.0 M.2 drives, with transfer bandwidth up to 128Gbps
Supports Intel VROC tchnology, allowing you to use CPU PCIe lanes to create BOOTable RAID arrays

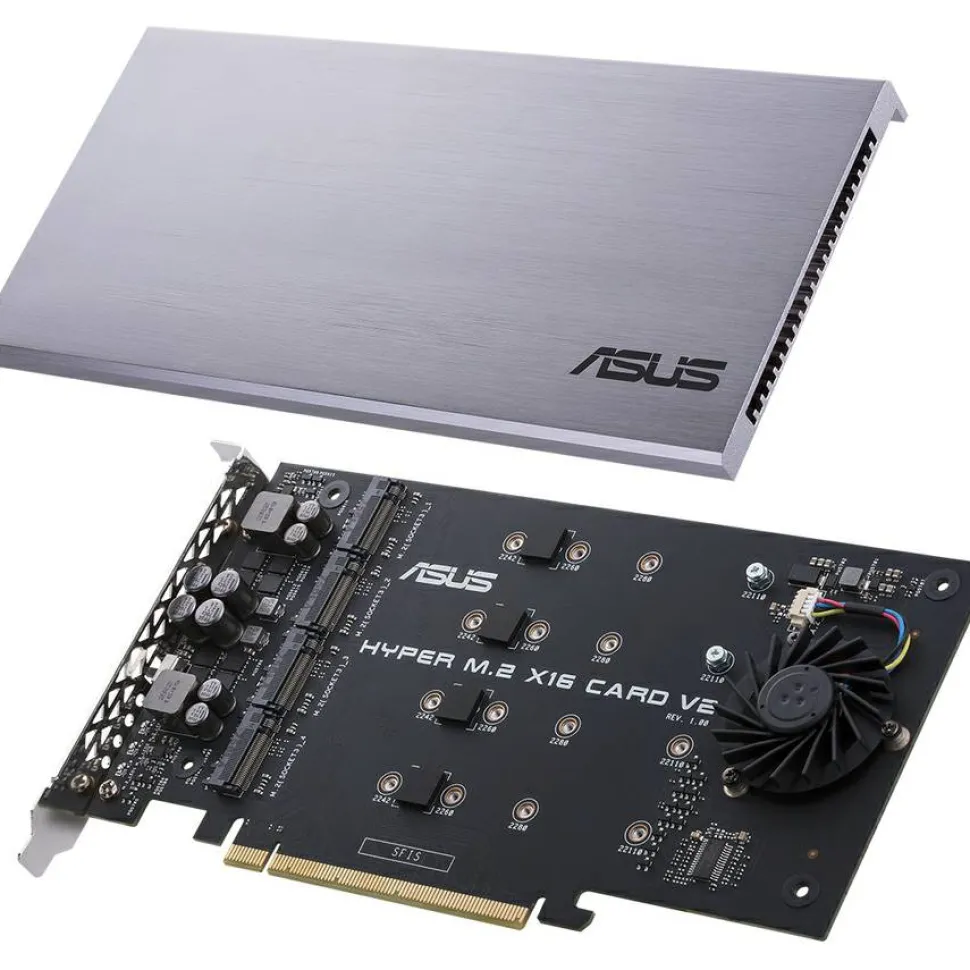

Integrated blower-style fan to prevent throttling

Intel VROC ready and NVMe RAID support on AMD Ryzen Threadripper
New two-phase power solution with up to 14W output
Supports four additional NVMe M.2 drives using Intel VROC for transfer speeds up to 128Gbps
PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots

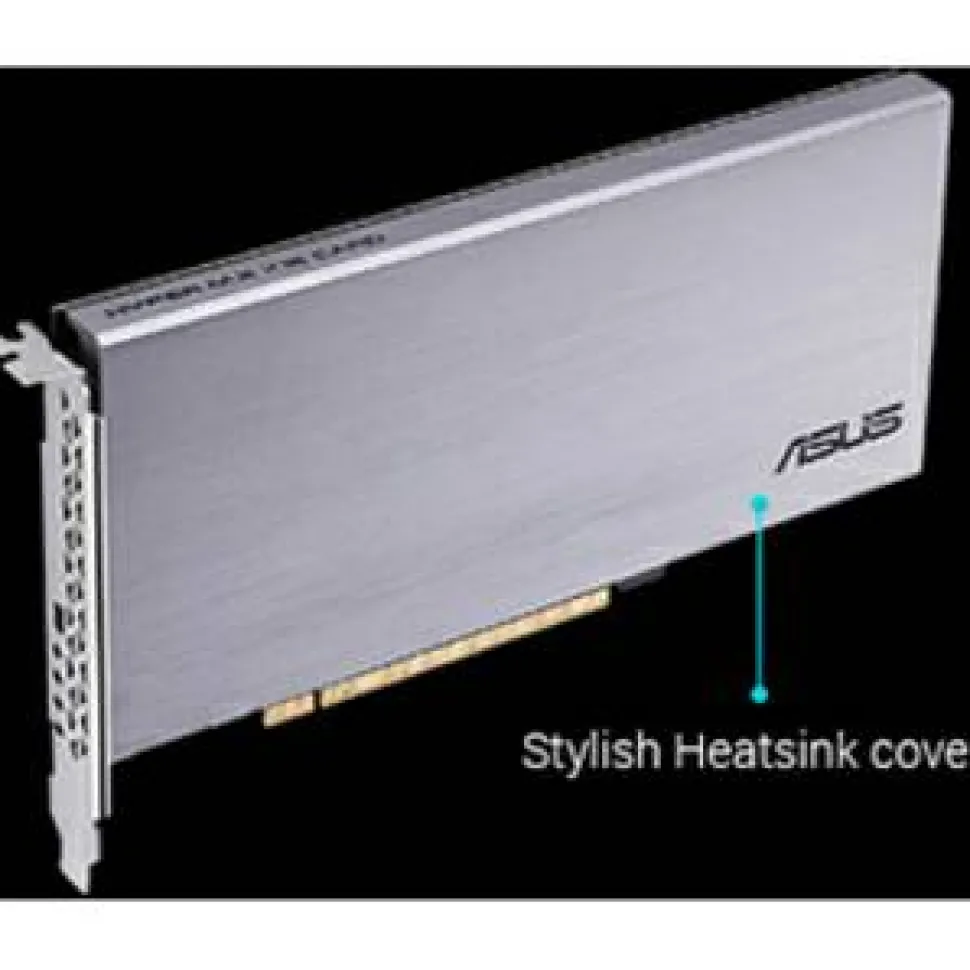

Stylish heatsink and integrated blower style fan prevent M.2 throttling

Product Specifications

Additional Information

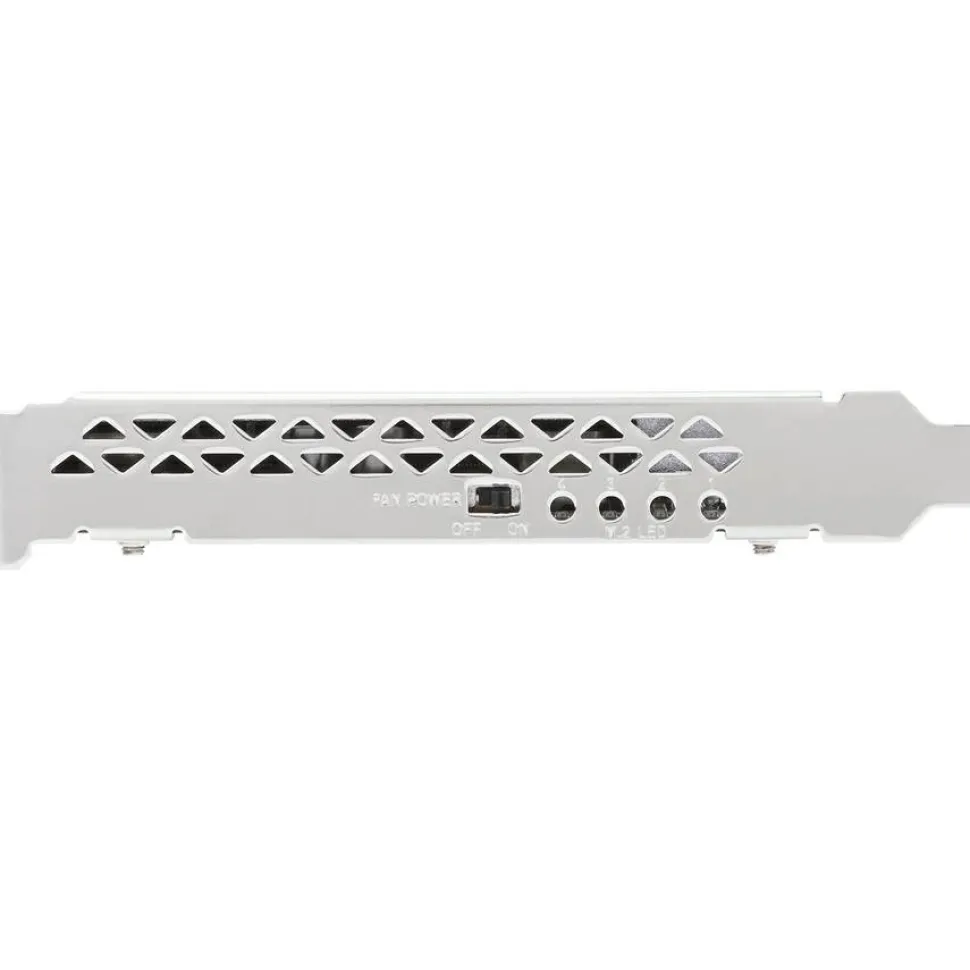

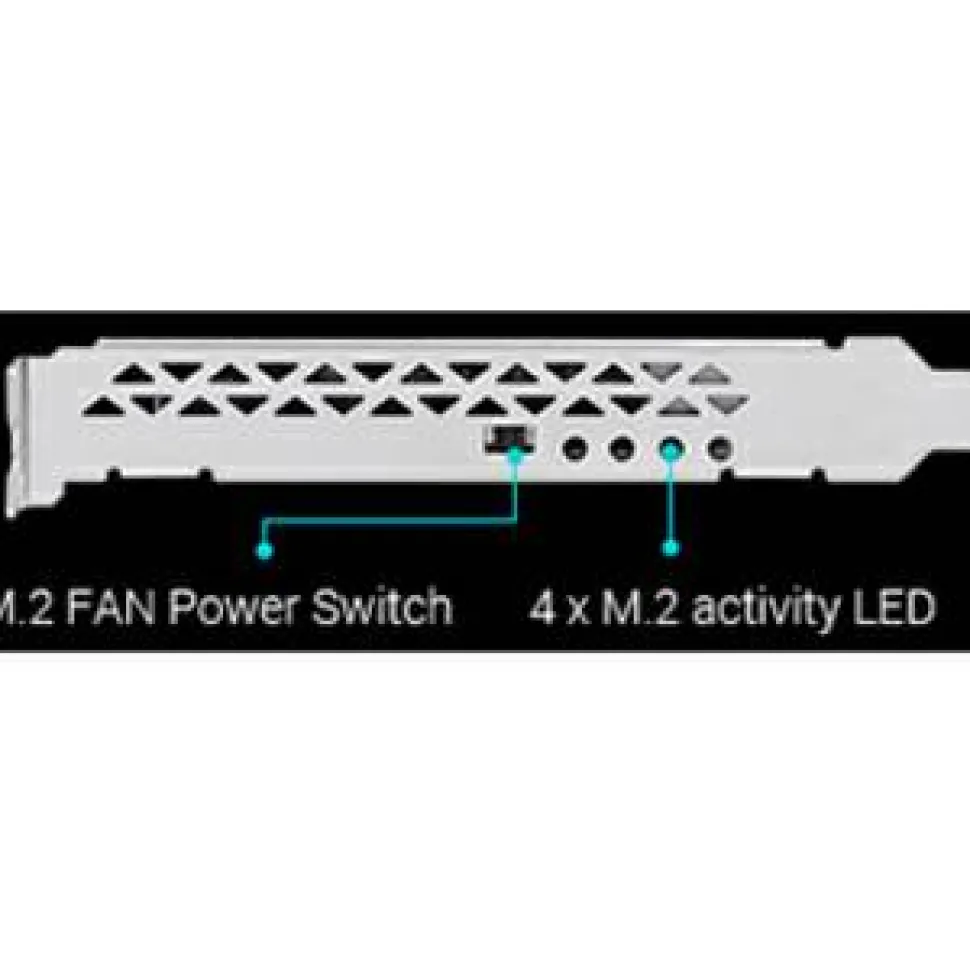

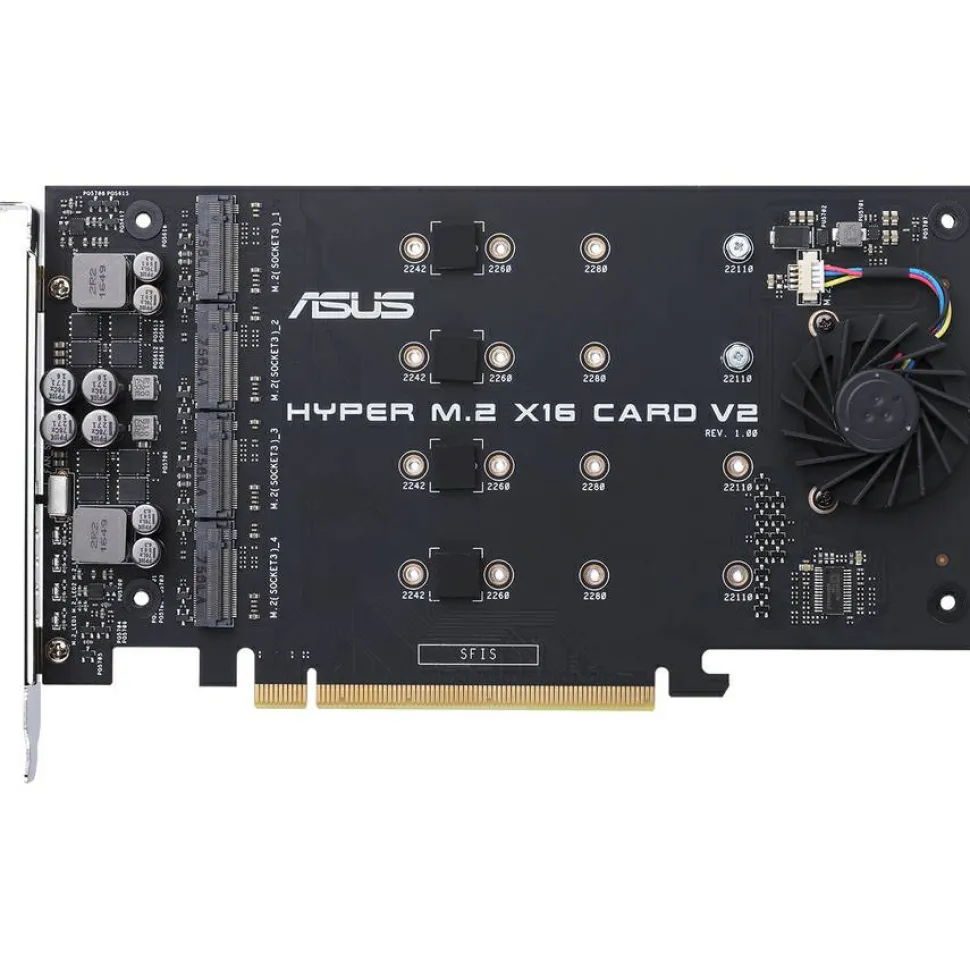

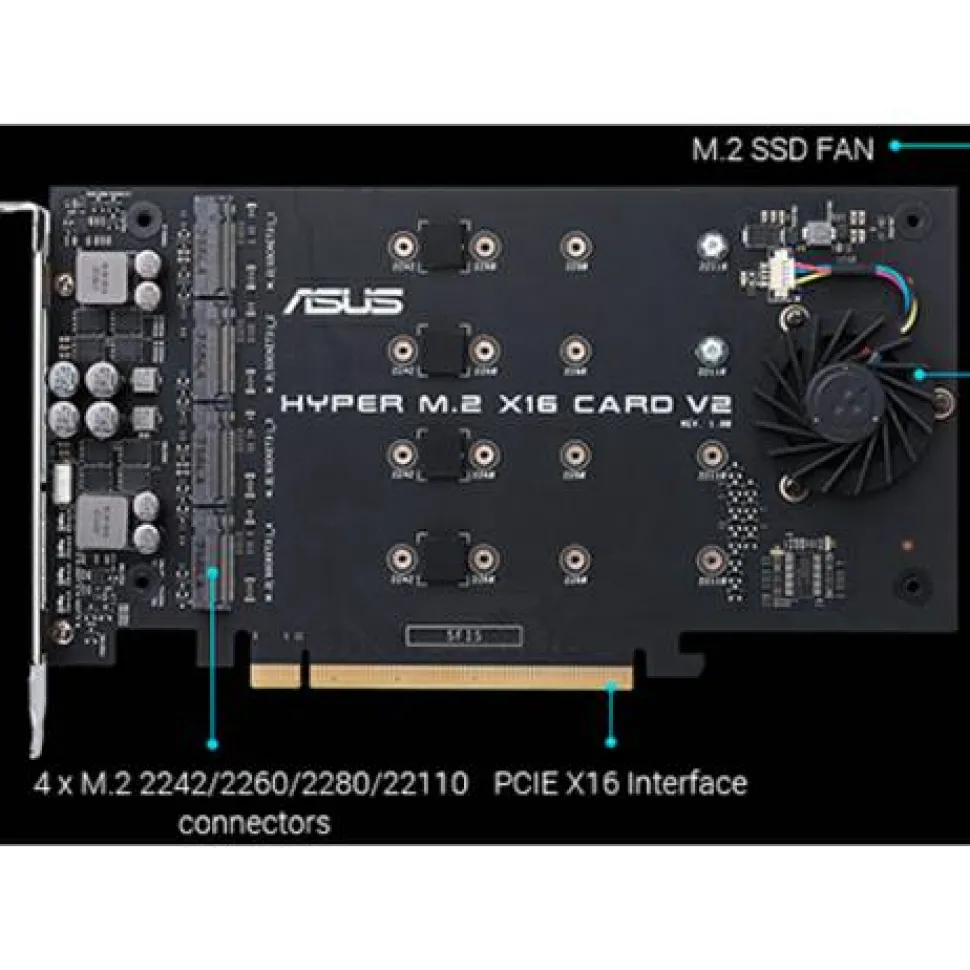

Interface: PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots, support data transfer rates up to 128 Gbps. External Connectors: 4 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support(Support PCIE SSD only) LED & Button: 1 x M.2 FAN Power Switch 4 x M.2 access LEDs Features: RAID function Support: Intel VROC ready for X299, Z370 and Z390 Series Motherboard models. (It supports Intel SSDs only.) AMD X399/X470/B450/X370/B350 Series Motherboard models
Brand Name

Asus
Country of Origin

China
Depth

0.5″
Environmental Certification

RoHS
Environmentally Friendly

Yes
Height

3.8″
Length

8″
Limited Warranty

1 Year
Manufacturer Part Number

HYPER M.2 X16 CARD V2
Product Model

HYPER M.2 X16 Card v2
Product Name

M.2 to PCI Express Adapter
Product Type

M.2 to PCI Express Adapter
Width

0.5″
