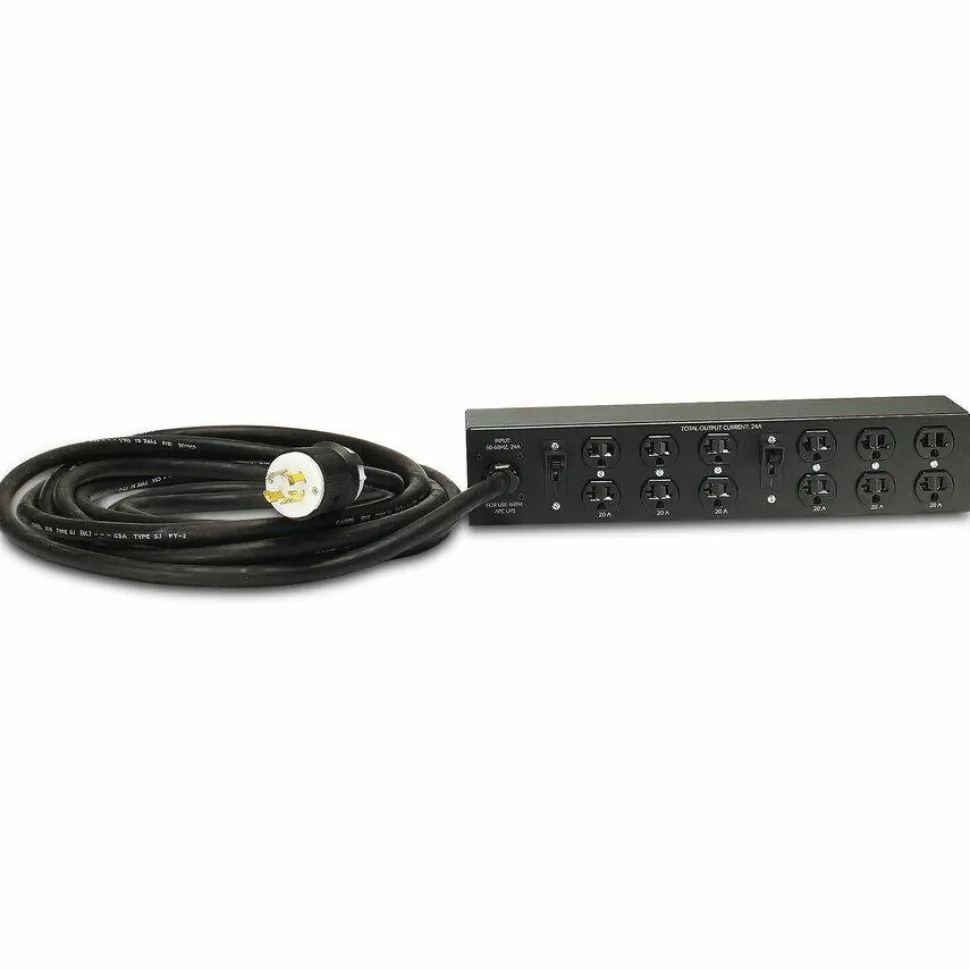

APC NetShelter Basic Rack PDU Extender, 2U, 30A, 120V, 12 NEMA 5-20 outlet

$126.89

SKU: SKUr2CpA8XF7T Categories: Networking & Cables, Networking Accessories, Technology Tag: APC Brand: APC

Description
Reviews (0)

Product Description

APC NetShelter Basic Rack PDU Extender, 2U, 30A, 120V, 12 NEMA 5-20 outlet

Basic – NEMA L14-30P – 12 x NEMA 5-20R – 200 V, 208 V – 4992 W – 27.99 ft Cord Length – 2U – Horizontal – Rack-mountable

It is a basic rack PDU with a 2U horizontal mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 12 NEMA 5-20R outlets, providing connections for IT equipment. It includes a 28-foot power cord with a NEMA L14-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.

Supports up to 30A, 120V power distribution
Equipped with 12 NEMA 5-20R outlets for versatile power connections
Horizontal mounting to fit various rack configurations
28 ft cord for flexible installation
Electric power fitted to racks of computers and networking equipment within a data center
Basic PDU is the space-saving and cost-effective way to deliver power
NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
With Front mount your PDUs in proper angle for efficient working
NEMA L14-30P plug/connector type for reliable, productive connectivity and optimal power output
200 V input voltage for maximum feasibility and added productivity
120 V AC output voltage for optimal performance with maximum feasibility
PDU is reliable for power protection and management solutions
With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
200 V input voltage for better reliance and maximum dependability

Product Specifications

Brand Name

APC
Certifications & Standards

cUL Listed|UL Listed
Circuit Breaker

Yes
Cord Length

27.99 ft
Country of Origin

India
Depth

3.5″
EU RoHS Declaration URL

https://download.schneider-electric.com/files?p_Doc_Ref=AP7582_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
End of Life Manual Availability

https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1512009_EN&p_File_name=ENVEOLI1512009_V2.pdf
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmental Profile Availability

https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512009EN&p_File_name=ENVPEP1512009_V2.pdf
Environmentally Friendly

Yes
For Country/Region

United States
Form Factor

Rack-mountable
Halogen Content Performance

Product contains halogen above thresholds
Height

3.5″
Input Voltage

200 V 208 V
Limited Warranty

2 Year
Manufacturer Part Number

AP7582
Mount Type

Rack-mountable
Mounting Preference

Lower
Output Voltage

120 V AC
Package Contents

Basic Rack 4.992kVA PDU Installation Guide Rack Mounting Brackets
Packaging Contains Recycled Cardboard

Yes
Parts Warranty/Labor

2 Year
Placement

Front Rear
Plug/Connector Type

NEMA L14-30P
Power Rating

4.99 kVA
Power Rating (VA)

4992 VA
Product Color

Black
Product Line

Basic Rack
Product Name

Basic Rack 4.992kVA PDU
Product Take Back Program

No
Product Type

PDU
REACH Declaration URL

https://download.schneider-electric.com/files?p_Doc_Ref=AP7582_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Rack Height

2U
Reach Compliance Date

12/10/2025
Receptacle Detail

12 x NEMA 5-20R
Receptacle Type

NEMA 5-20R
Single-use Plastic (SUP) Free Shipping Packaging

No
Sustainable Packaging

No
WEEE Statement

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width

17.2″
